Emerson Ovation 5A26458G05 Relay Output Base

Product Introduction & Engineering Value

A failed relay output assembly can create a difficult troubleshooting situation. The controller may show correct logic execution while the external device never receives the expected command. In many cases, the failure is not in the DCS processor but in the output interface between the control system and field equipment.

The Emerson Ovation 5A26458G05 provides the relay interface required for discrete control applications. For power plants and process facilities running Ovation systems, replacing the affected I/O assembly is often the fastest path to restoring control functionality while preserving existing configuration and field wiring.

Technical Specifications

The Ovation I/O documentation identifies relay output assemblies as dedicated relay output configurations requiring specific base assemblies rather than standard I/O bases.

Field Application & The “Trench” Experience”

A thermal power station operating an Emerson Ovation control system experienced a partial loss of auxiliary equipment control. The DCS graphics showed the correct command sequence, but several field devices failed to respond.

The maintenance team verified the controller logic, communication network, and I/O rack status. The fault was traced to the relay output section associated with the 5A26458G05 assembly. After replacing the failed assembly and checking relay contact operation, engineers restored the affected control circuits without modifying the Ovation application database.

The outage window was minimized because the replacement maintained the existing rack architecture and field wiring arrangement.

Typical application scenarios include:

• Boiler Auxiliary Equipment Control — switching pumps, fans, and motor-operated devices
• Turbine Plant Interlock Systems — providing discrete command outputs to external equipment
• Process Utility Systems — controlling valves, alarms, and auxiliary electrical devices

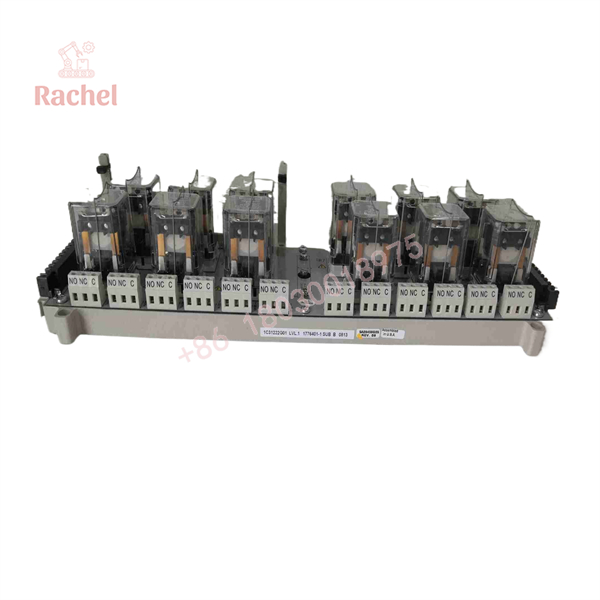

5A26458G05

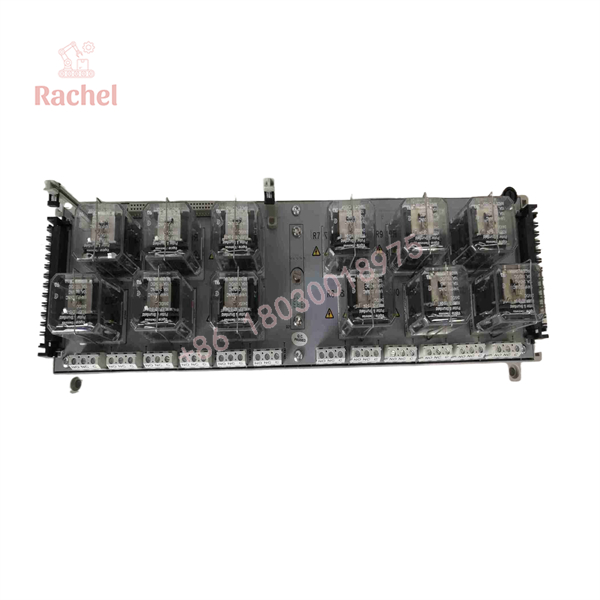

5A26458G05

Transparency SOP: QA & Testing

For Emerson Ovation 5A26458G05 new surplus or refurbished stock:

Quality Verification Sequence

1. Identification
   • Confirm Emerson/Ovation labeling.
   • Verify exact part number: 5A26458G05.
   • Check revision markings.
2. Physical Examination
   • Inspect PCB condition.
   • Check relay sockets and connectors.
   • Verify mounting hardware condition.
   • Look for corrosion, contamination, or heat damage.
3. Electrical Testing
   • Verify interface continuity.
   • Check relay switching behavior.
   • Confirm output channel operation where test equipment is available.
   • Inspect contact resistance.
4. Final Release
   • Record test results.
   • Package using ESD protection.
   • Provide warranty documentation.

The Veteran’s Tech Trap Guide

⚠️ Do not confuse the relay base with the electronics module.

Ovation relay output systems may consist of multiple physical assemblies. Replacing only the wrong section will not restore the failed output channel.

⚠️ Verify relay contact configuration before installation.

Different relay arrangements may support different contact forms and field requirements. Confirm the existing wiring before replacement.

PRO TIP: Photograph the complete I/O assembly, terminal connections, and rack slot location before removing the module.

⚠️ Check field device protection.

Relay outputs control external loads. Incorrect external suppression, excessive current, or inductive loads can damage replacement assemblies.

Dynamic FAQ

Q1: What is the Emerson 5A26458G05 used for?
The 5A26458G05 is an Emerson Ovation relay output base assembly used for discrete field control applications in Ovation DCS systems.

Q2: Is the 5A26458G05 a complete relay output module?
The part is identified as a relay output base assembly. Depending on the system configuration, additional relay electronics or relay components may be required.

Q3: What systems use the 5A26458G05?
It is used in Emerson Ovation distributed control system installations, commonly found in power generation and industrial process applications.

Q4: Can another Ovation relay assembly replace 5A26458G05?
Not automatically. Confirm relay type, base configuration, wiring arrangement, rack compatibility, and application requirements before substitution.

Q5: How are refurbished 5A26458G05 assemblies tested?
Testing should include visual inspection, connector verification, relay switching checks, output continuity testing, and compatibility review.

Q6: Is Emerson 5A26458G05 still manufactured?
The part is considered a legacy Ovation system component. Availability typically depends on remaining inventory, refurbishment programs, and lifecycle support channels.

Q7: What information is required when sourcing a replacement 5A26458G05?
Provide the Ovation system version, I/O rack information, existing module labels, hardware revision, field wiring details, and failure symptoms.
