Description
Product Introduction & Engineering Value
The Emerson Ovation 5X00419G02 is an Ethernet Link Controller Electronics Module designed for Ovation DCS communication architectures. It provides Ethernet connectivity functions with timestamp capability, supporting accurate event tracking and data exchange between Ovation system components.
For plants operating long-lived Ovation platforms, communication modules are often treated as invisible infrastructure—until they fail. A malfunctioning Ethernet link controller can affect controller communication, event recording, and system diagnostics. Maintaining a tested spare helps reduce recovery time during network-related incidents.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson |
| Platform | Ovation DCS |
| Part Number | 5X00419G02 |
| Module Type | Ethernet Link Controller EMOD Assembly |
| Communication Interface | Ethernet |
| Primary Function | Network link management and data exchange |
| Time Function | Timestamp support for event synchronization |
| Installation | Ovation rack-mounted module |
| System Role | Communication interface between Ovation components and Ethernet networks |
| Configuration | Ovation engineering database configured hardware |
| Application Environment | Power generation and industrial process automation |
| Spare Classification | Control system communication critical spare |
Field Application & The “Trench” Experience
A power station operating an Ovation-based turbine control system began experiencing intermittent delays in event records. Operators could still control the unit, but alarm sequences occasionally showed inconsistent timing between distributed control stations.
The initial investigation focused on the plant network switches because communication alarms appeared sporadically. Network testing showed normal traffic conditions. Engineers then reviewed the Ovation communication hardware and identified instability associated with the Ethernet link controller module.
A tested Emerson 5X00419G02 replacement was installed. After rack diagnostics, controller communication checks, and event timestamp verification, the alarm sequence returned to normal operation.
The field lesson: communication modules rarely create obvious failures. They often produce confusing symptoms—delayed alarms, missing events, or inconsistent diagnostics.
Typical application scenarios:
- Turbine control system event logging
- Distributed Ovation controller communication
- Power plant sequence-of-events monitoring
- Industrial Ethernet communication infrastructure

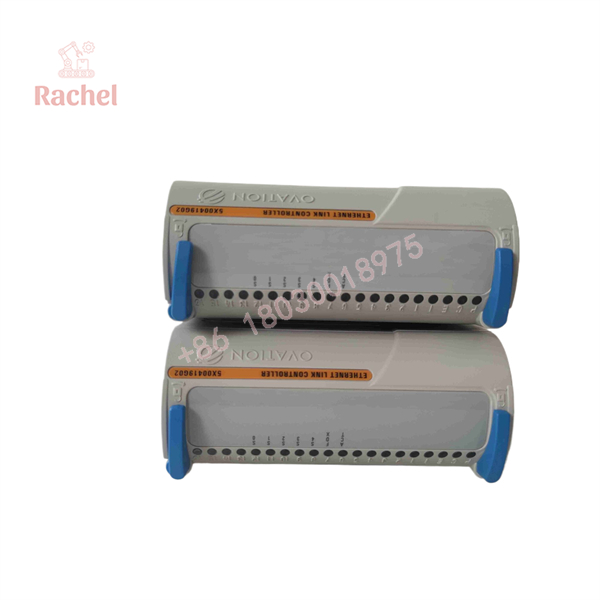

5X00419G02

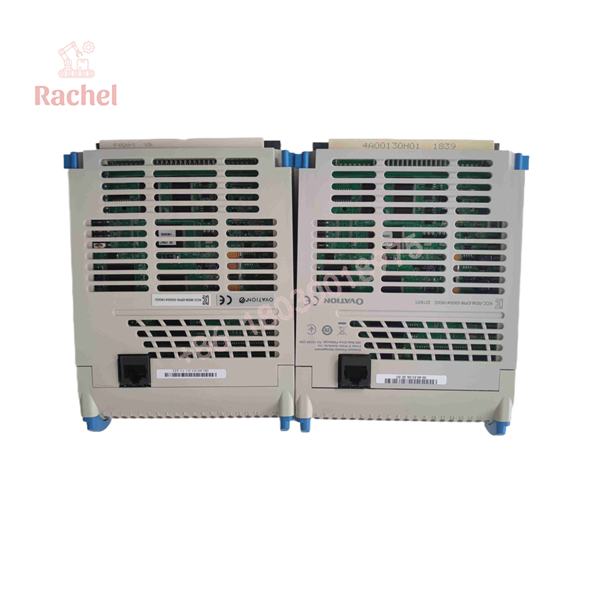

5X00419G02
Transparency SOP: QA & Testing
Communication modules require more than a power-up check. Network functionality must be verified.
Testing sequence:
1. Hardware Identification
- Confirm Emerson Ovation marking.
- Verify exact part number: 5X00419G02.
- Check module revision and connector condition.
2. Physical Examination
- Inspect PCB and enclosure.
- Check Ethernet interface condition.
- Verify backplane connector integrity.
3. Power Verification
- Apply rated rack power.
- Confirm startup sequence.
- Check diagnostic LED indicators.
4. Communication Testing
- Install in compatible Ovation test rack.
- Verify Ethernet link establishment.
- Confirm controller communication.
- Validate timestamp functionality.
5. Final Documentation
- Record serial number.
- Save test results.
- Classify inventory:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Treating It Like a Standard Ethernet Adapter
The 5X00419G02 is not a general-purpose industrial Ethernet card.
It is part of the Ovation control architecture.
Verify:
- Ovation software compatibility
- Controller configuration
- Rack location
- Firmware revision
A physically compatible module may still fail system integration.
⚠️ Trap #2: Ignoring Time Synchronization Requirements
Timestamp functions are often critical for:
- Alarm analysis
- Sequence-of-events review
- Trip investigations
PRO TIP: After replacement, verify event timing—not only network connectivity.
A module that communicates but produces incorrect timestamps can create operational confusion during fault analysis.
⚠️ Trap #3: Skipping Network Diagnostics
A communication failure may not originate from the module.
Before replacement, inspect:
- Ethernet cabling
- Network switch ports
- Controller communication status
- Rack power quality
Replacing hardware without checking the communication path can lead to repeated failures.
Dynamic FAQ
Q1. What is the Emerson Ovation 5X00419G02 used for?
The 5X00419G02 is an Ethernet Link Controller Electronics Module used in Emerson Ovation DCS systems to provide Ethernet communication functions and timestamped data exchange.
Q2. Is the 5X00419G02 an I/O signal module?
No. It is a communication module rather than a traditional analog or digital field I/O module. Its primary role is Ethernet-based communication within the Ovation architecture.
Q3. Why is timestamp capability important in Ovation systems?
Accurate timestamps help operators and engineers analyze alarm sequences, trips, and system events by maintaining consistent event timing across the control system.
Q4. What should buyers verify before purchasing a New Surplus 5X00419G02?
Recommended checks:
- Exact Emerson part number
- Hardware revision
- Ovation system compatibility
- Ethernet interface condition
- Functional communication test records
- Warranty documentation
Q5. Can a refurbished 5X00419G02 be used in an operating Ovation DCS?
Yes, provided it has passed communication testing and matches the installed Ovation hardware configuration. Tested communication modules are commonly maintained as emergency spares for legacy control systems.
Q6. Why should plants keep a spare 5X00419G02?
Because communication hardware failures can interrupt diagnostics, event recording, and system coordination. Keeping a verified spare reduces troubleshooting time during unexpected Ovation network issues.
