EPRO CON021 Eddy Current Signal Converter Vibration Monitoring

Description

Product Introduction & Engineering Value

When monitoring high-speed turbine shafts or massive centrifugal compressors, undetected radial vibration or axial thrust displacement can lead to catastrophic mechanical failure. The EPRO CON021 signal converter processes raw gap signals from eddy current proximity probes, turning them into highly accurate proportional outputs for condition monitoring systems and PLCs.

Engineered with exceptional thermal stability and electrical noise immunity, this converter maintains precise calibration even in electrically noisy turbine bays. Plant reliability engineers rely on its dependable signal conditioning to ensure early fault detection on critical rotating assets without false trip triggers.

Technical Specifications

• Sensor Compatibility: Standard eddy current proximity probes (PR6422, PR6423 series and compatible sensors)
• Output Signal: Proportional 4-20mA current loop or scaled voltage output representing displacement/vibration
• Frequency Response: 0 Hz to 10 kHz (-3 dB bandwidth) for dynamic vibration and static gap measurement
• Linearity Range: Highly linear output characteristic across standard probe measuring ranges (e.g., 0 to 2mm or 0 to 4mm)
• Power Supply Requirement: Standard industrial DC operating voltage (typically -24 VDC or loop powered depending on exact revision)
• Housing Style: Rugged DIN-rail mount industrial enclosure with secure screw terminal blocks
• Diagnostic Features: Front-panel test jacks and status monitoring points for easy probe gap verification
• Operating Temperature Range: -30°C to +85°C (-22°F to +185°F) harsh environment threshold

Field Application & The “Trench” Experience

During a planned startup of a high-pressure boiler feed pump at a power station, the vibration monitoring system threw an immediate channel fault on the inboard radial bearing probe. Without a verified displacement signal, plant environmental and safety rules prohibited rolling the turbine. Sourcing a direct factory replacement through standard channels would have delayed synchronization by days. The instrumentation tech grabbed a pre-tested surplus EPRO CON021 converter from the maintenance crib, swapped it onto the DIN rail, adjusted the initial gap voltage, and restored clean vibration spectrum data before the startup window closed.

Specific Niche Application Scenarios:

• Steam Turbine Radial Vibration Monitoring: Tracking shaft orbit and displacement on high-speed journal bearings.
• Gas Compressor Axial Position Detection: Measuring rotor thrust wear against active thrust bearing pads.
• Large Generator Air Gap Monitoring: Ensuring uniform rotor-to-stator concentricity under heavy load.

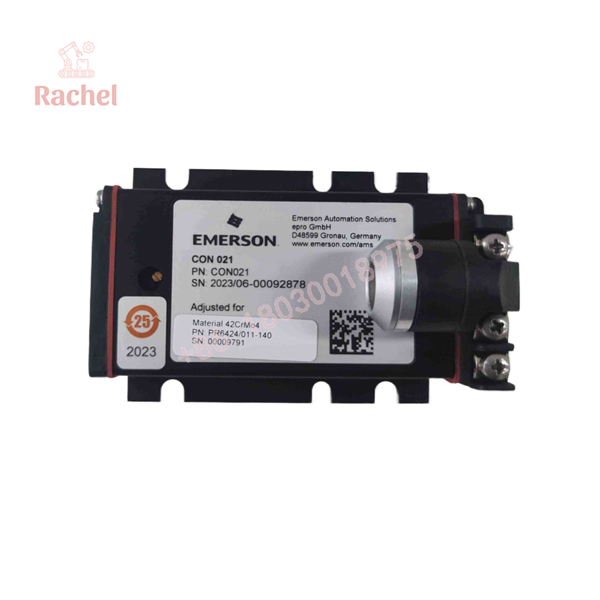

CON021

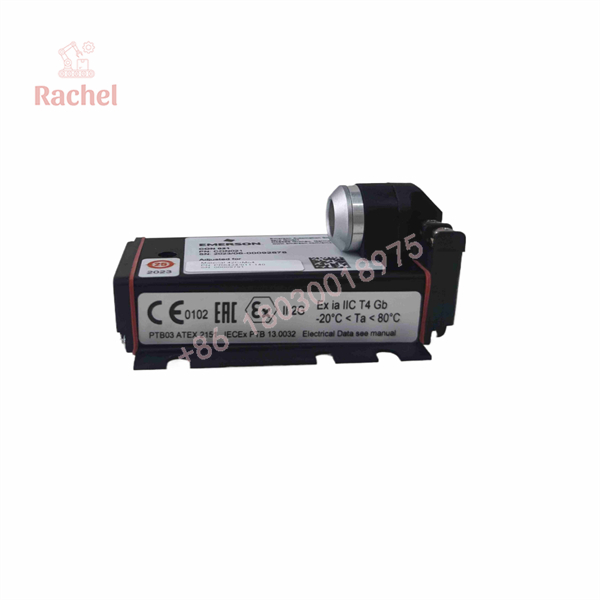

CON021

Transparency SOP: QA & Testing

1. Terminal & Housing Inspection: Examine screw terminals, plastic enclosure integrity, and internal circuit boards under optical magnification for heat stress or damage.
2. Cold Power-Rail Resistance Check: Verify electrical isolation barriers across power supply inputs and signal commons using a calibrated digital multimeter.
3. Static Gap Calibration Run: Connect the converter to a calibrated proximity probe test rig, stepping gap distances with a micrometer target to verify millivolt/mA output linearity.
4. Frequency Response Verification: Inject simulated AC dynamic signals into the sensor input stage to confirm attenuation limits across the 10 kHz bandwidth.
5. Thermal Chamber Burn-In: Operate the converter inside an active 50°C environmental enclosure for 24 hours to screen out early component drift.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Always match your extension cable length and probe tip type precisely to the CON021 calibration specification. Eddy current systems rely on tuned resonant circuits; changing cable lengths without recalibration will introduce severe measurement linearity errors.

Warning: Never test probe gap voltages directly with uncalibrated multimeters that lack high input impedance, as this can load the circuit and skew readings. Always use the dedicated front-panel test jacks or a high-impedance DMM.

Dynamic FAQ

1. Is this EPRO CON021 unit brand new or surplus? We supply certified New Surplus and fully bench-tested refurbished hardware, backed by complete historical traceability records.
2. What warranty covers this signal converter? Every unit is backed by our standard 12-month replacement warranty covering structural and operational performance.
3. Does the CON021 require recalibration when replacing a unit? If replacing a like-for-like unit matched to the same probe and extension cable length, zero and span calibration drift is minimal, but always verify initial gap voltage before rolling machinery.
4. What power supply voltage does this module require? The CON021 typically operates on standard industrial DC power supplies (such as -24 VDC common in vibration rack architectures). Check your exact system schematic for wiring confirmation.
5. Can this converter be used with third-party proximity probes? For optimal linearity and safety compliance, it is strongly recommended to pair the CON021 with matching EPRO or compatible eddy current probes designed for the same sensitivity curve (e.g., 8 mV/µm).
