Core Product Summary (Brand / Model / Key Attributes)
The EUPEC FZ1200R12KF1 (also referenced under Infineon after the acquisition of EUPEC) is a high-power single/independent IGBT module rated for 1200 V collector-emitter voltage and 1200 A continuous DC collector current.
It is designed for demanding industrial power conversion applications such as high-power variable-frequency drives, UPS systems, and large inverters. The module features a maximum total power dissipation of 7800 W and supports repetitive peak collector currents up to 2400 A.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Single / independent IGBT power module |
| Manufacturer | EUPEC (Infineon Technologies) |
| Model | FZ1200R12KF1 |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous DC Collector Current (IC) | 1200 A |
| Repetitive Peak Collector Current (ICRM) | 2400 A (tp = 1 ms) |
| Total Power Dissipation (Ptot) | 7800 W |
| Collector-Emitter Saturation Voltage (VCE(sat)) | max. 3.0 V (typical ~2.7 V) |
| Gate-Emitter Voltage (VGES) | ±20 V |
| Package | Module |
| Circuits per Package | 1 (single switch) |
Detailed Product Overview
The EUPEC FZ1200R12KF1 is a robust high-current IGBT module intended for industrial power electronics systems requiring high continuous current capability in a single-switch topology. With a 1200 V blocking voltage and 1200 A continuous collector current rating, the module is suitable for medium- to high-power conversion stages.
The device supports a repetitive peak collector current of 2400 A for short durations (1 ms), allowing it to handle transient overloads and inrush conditions common in motor drives and inverter applications. Total power dissipation reaches 7800 W, requiring appropriate heatsinking or liquid cooling for continuous operation at rated current.
Typical applications include high-horsepower AC drives (examples in secondary sources reference Allen-Bradley 1336 systems in the 400–800 HP range), uninterruptible power supplies, and industrial inverters. The module is supplied in a standard high-power module package with screw terminals for power connections.
Note that EUPEC was acquired by Infineon Technologies; the part may appear under either brand depending on production date and distribution channel. For new designs, engineers should verify availability and consider current Infineon high-power IGBT module families as potential alternatives.

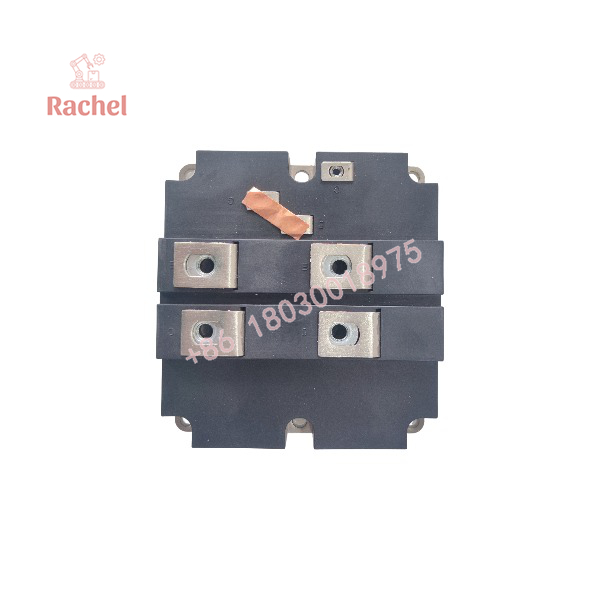

FZ1200R12KF1
FZ1200R12KF1
Engineering Selection Highlights
- 1200 V / 1200 A rating → high continuous current capability in a single module.
- 2400 A repetitive peak current → handles short-term overload and inrush conditions.
- 7800 W power dissipation rating → suitable for high-power continuous operation with proper cooling.
- Single-switch topology → simplifies paralleling or use in high-current inverter legs.
- Industrial power module package → standard mounting and terminal interfaces for heavy-current systems.
- Proven in high-power drives and UPS applications → established use in demanding industrial environments.
Dimensions, Mounting & Connection Notes
- Package: High-power IGBT module with screw terminals
- Mounting: Standard module baseplate for heatsink attachment
- Power terminals: High-current screw connections (exact torque values in manufacturer documentation)
- Gate/emitter control terminals: Separate low-current connections
Exact mechanical dimensions, terminal layout, isolation voltage, and thermal resistance values are provided in the official EUPEC / Infineon datasheet for the FZ1200R12KF1.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Voltage Class | 1200 V systems | Suitable for 400–690 V AC line applications after rectification |
| Current Rating | 1200 A continuous | Requires adequate busbar and cooling design |
| Cooling | Heatsink or liquid cooling | Critical due to 7.8 kW dissipation rating |
| Gate Drive | Standard IGBT gate drivers (±15 V typical) | Observe recommended gate resistance and layout |
| Applications | High-power VFDs, UPS, industrial inverters | Common in multi-hundred horsepower systems |
| Brand Continuity | EUPEC → Infineon | Cross-check current Infineon equivalents for new projects |
FAQ
What is the EUPEC FZ1200R12KF1?
It is a high-power single IGBT module rated 1200 V / 1200 A, formerly produced by EUPEC and now associated with Infineon Technologies.
What is the continuous current rating?
1200 A DC collector current.
What is the maximum power dissipation?
7800 W.
What applications is it typically used in?
High-power variable-frequency drives, UPS systems, and industrial inverters requiring high continuous current.
Is the part still current?
The original EUPEC design is a legacy high-power module. Availability should be confirmed with distributors, and newer Infineon module families should be evaluated for new designs.
What cooling is required?
Significant heatsinking or liquid cooling is necessary due to the high power dissipation rating.
