FANUC A06B-0238-B605 Model Alpha iS 12/4000 Servo Motor

Description

Product Introduction

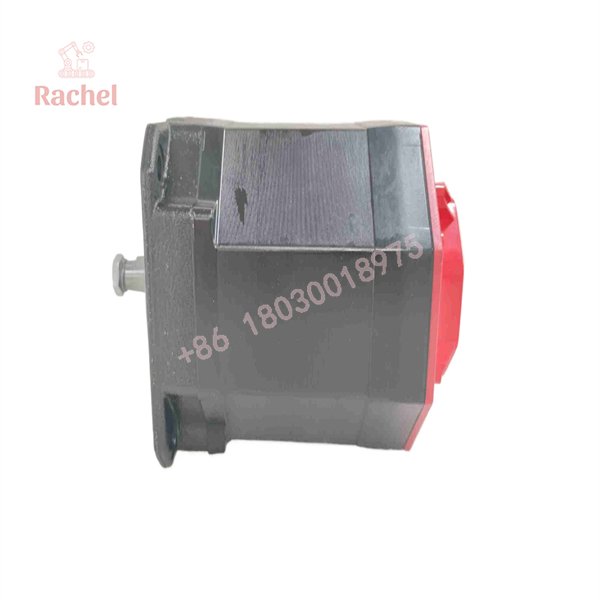

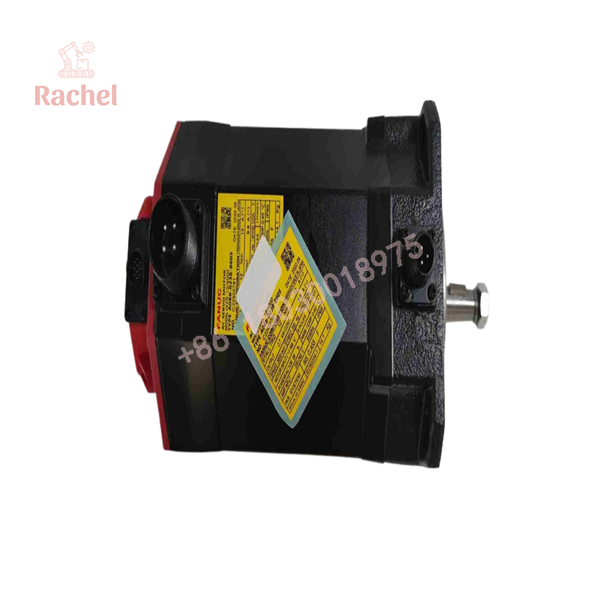

The FANUC A06B-0238-B605 is a high-performance AC servo motor from FANUC’s premier \alpha iS series (Model \alpha iS 12/4000). Engineered specifically for high-speed CNC machine tool feed drives, milling centers, and multi-axis turning lathes, this motor combines neodymium permanent magnet construction with low rotor inertia for rapid acceleration and precise trajectory control.

Featuring a straight output shaft, integrated 24V DC holding brake, and a high-resolution absolute pulsescale encoder, the A06B-0238-B605 delivers continuous 12 Nm torque up to 4000 RPM. Its IP65-rated housing and heavy-duty industrial connectors protect sensitive internal windings and encoder optics against harsh cutting fluids and metal chips.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a vertical machining center’s Z-axis motor loses its optical pulse feedback or experiences brake slip under heavy gravity loads, the CNC control halts instantly with a “351 SPC ALARM” or “414 SERVO ALARM”. The axis drops, risking spindle crashes or ruined workpieces. Installing an exact-spec FANUC A06B-0238-B605 motor ensures seamless alignment with the matching \alpha iSV Servo Amplifier without necessitating recalibration of the CNC parameters.

• CNC Vertical & Horizontal Machining Centers – Drives X, Y, and Z ball-screw feed axes under continuous high-duty contouring.
• CNC Lathes & Turning Centers – Powers primary turret positioning and linear tool-post axes.
• Multi-Axis Gantry Automation – Provides synchronized positioning for heavy-duty material handling gantries and robotic loaders.

Field Case Study

A 5-axis aerospace machining cell suffered an intermittent “Z-Axis Overcurrent / Pulsecoder Communication Failure” during high-speed aluminum pocketing runs. The cause was traced to coolant ingress deteriorating the encoder connector on the original motor. The shop face-milled aerospace parts on tight deadlines, meaning every hour of downtime lost thousands of dollars. We dispatched a fully bench-tested surplus FANUC A06B-0238-B605 motor. The maintenance team transferred the mounting coupling, connected the military-spec circular plugs, homed the grid reference point, and resumed tight-tolerance milling within 45 minutes.

A06B-0238-B605

A06B-0238-B605

Transparency SOP: Quality Assurance & Testing

Every FANUC servo motor in inventory undergoes comprehensive testing on dedicated FANUC CNC test beds.

1. Inbound Mechanical Inspection: Verify shaft straightness, flange mounting faces, keyway/shaft condition, smooth bearing rotation, and connector body integrity.
2. Insulation & Winding Surge Test: Perform 1000V DC Megger tests phase-to-phase and phase-to-ground, measuring matched phase resistance across all stator coils.
3. Brake Hold & Release Verification: Apply 24V DC power to the internal holding brake to verify clean release torque and static mechanical holding power.
4. Closed-Loop CNC Closed-Loop Run Test: Connect the motor to a FANUC \alpha i Servo Amplifier (\alpha iSV) and 31i/0i-D control system. Run 30-minute thermal load cycles, verifying encoder communication, velocity feedback accuracy, and noise-free operation at full 4000 RPM.
5. Precision Packaging: Secure the motor shaft with protective sleeves, wrap the red encoder cap in impact foam, and vacuum-seal in ESD anti-static barrier bags before placing in heavy foam-lined shipping boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Strike the Motor Shaft or Pulsecoder: Never use a hammer or standard wedge puller to force a coupling or pulley onto the motor shaft! The optical disk inside the red rear encoder cover is fragile glass; axial impacts will shatter the encoder disk instantly.
• ❗ Set Reference Points (Grid Zero) After Replacement: Because this unit features an absolute encoder (\alpha iA1000), replacing the motor requires resetting the machine zero point (Parameter 1815 bit 4 / APZ) on the FANUC controller after installation.
• ⚠️ Check Brake Power Supply Polarity & Voltage: Ensure the 24V DC power supply feeding the internal holding brake delivers clean, regulated voltage. Low voltage (<20V DC) causes incomplete brake release, generating excessive friction heat that bakes the stator windings.
• ❗ Inspect Cable Connector O-Rings: Ensure the circular power and feedback connectors retain their original rubber O-ring seals. Missing seals allow synthetic coolant mist to seep into the pin housing, causing short circuits and pulsecoder alarms.

Frequently Asked Questions (FAQ for Conversion)

Q: What does the “-B605” suffix indicate in the FANUC part number?

A: In FANUC nomenclature, “-B605” designates the physical mechanical options: a straight shaft combined with an integrated 24V DC holding brake and a standard \alpha i absolute pulsecoder.

Q: Can I replace an A06B-0238-B605 with a model that has a keyed shaft (e.g., -B602)?

A: Only if your mechanical coupling accommodates a keyway shaft without runout. However, using the exact straight shaft (-B605) ensures zero-backlash clamping on precision ball-screw couplings.

Q: Do I need to reload machine parameters when replacing this motor?

A: No. As long as you replace the motor with the exact same part number, motor parameter settings in the CNC remain identical. You will only need to perform a simple zero-point reference setting (APZ reset).

Q: What warranty coverage comes with this surplus FANUC motor?

A: We back all clean surplus and reconditioned A06B-0238-B605 servo motors with a full 12-month operational replacement warranty.

Q: Why purchase tested surplus motors instead of waiting for factory new lead times?

A: Factory lead times for legacy or backordered FANUC motors can take months. Installing a pre-tested, bench-verified surplus motor gets your CNC machine back into production immediately.
