GE FANUC A20B-3300-0310/08F 16i-B 18i-B CPU Module

Description

Product Introduction

The FANUC A20B-3300-0310/08F is a CPU module used in FANUC Series 16i-B and 18i-B CNC controls. It serves as the primary processing board responsible for CNC operation, executing ladder logic, interpolation calculations, PMC functions, communication management, and machine control.

In our field experience, CPU failures on these controls are uncommon. More often, apparent CPU faults are actually caused by unstable power supplies, battery-related memory corruption, or damaged backplane connectors. Before replacing the processor board, verify the power supply voltages and back up all CNC parameters and SRAM contents whenever possible. A CPU replacement without a complete backup can result in lengthy machine recovery.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A machining center suddenly refuses to complete its boot sequence after a weekend shutdown.

Maintenance initially suspects the servo amplifier. Then the spindle drive. Hours pass before anyone checks the CNC diagnostics. Eventually the control reports a CPU or memory fault caused by corrupted SRAM following a battery failure. Production remains idle while parameters are restored.

Typical applications include:

• Automotive Manufacturing — Multi-axis machining centers requiring continuous CNC processing.
• Aerospace — Precision milling machines executing complex tool paths.
• General Machining — CNC lathes using FANUC 16i-B or 18i-B controls.
• Tool & Die Manufacturing — High-speed machining with PMC-controlled auxiliary functions.
• Metal Fabrication — Horizontal machining centers requiring dependable CNC execution.

Field Replacement Example

A production machining center began displaying intermittent SRAM parity errors during startup. Voltage checks confirmed the power supply was stable, but diagnostics pointed to the controller. After creating a complete parameter backup from the remaining operational memory, technicians installed a tested A20B-3300-0310/08F, restored the machine image, verified servo alignment, and resumed production before the next manufacturing shift. Similar field reports emphasize backing up controller data before replacing CPU hardware.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boards; we test them in compatible FANUC CNC hardware whenever practical.

• Inbound Inspection
  • Verify complete part number and hardware revision.
  • Inspect PCB for previous repair work.
  • Check CPU package, memory devices, and connectors.
• Live Bench Testing
  • Install in a compatible FANUC control.
  • Verify successful boot sequence.
  • Confirm processor initialization and memory recognition.
• Electrical Parameter Checks
  • Verify onboard voltage rails.
  • Inspect DRAM operation.
  • Test connector continuity.
• Hardware Verification
  • Record PCB revision.
  • Document serial numbers.
  • Confirm compatibility with customer requirements.
• Final QC & Packaging
  • Complete operational inspection.
  • Anti-static packaging.
  • Shock-resistant shipping materials.
  • Full traceability documentation.

The Veteran’s Tech Trap Guide

⚠️ Back up everything before removing the CPU.

Parameters, PMC data, SRAM contents, and machine options may be stored on the controller. If they’re lost, recovering the machine can take much longer than replacing the board itself.

❗ Don’t blame the CPU immediately.

Many startup failures originate from the CNC power supply, backup battery, or memory corruption rather than the processor board. Confirm power quality before ordering replacement hardware.

⚠️ Verify the hardware revision.

The /08F suffix identifies a specific hardware revision. Boards with similar base numbers may not be interchangeable across all 16i-B and 18i-B controller configurations.

❗ Inspect the backplane connectors.

Bent connector pins or oxidation can produce communication faults that closely resemble CPU failures. Always inspect the rack before installing the replacement module.

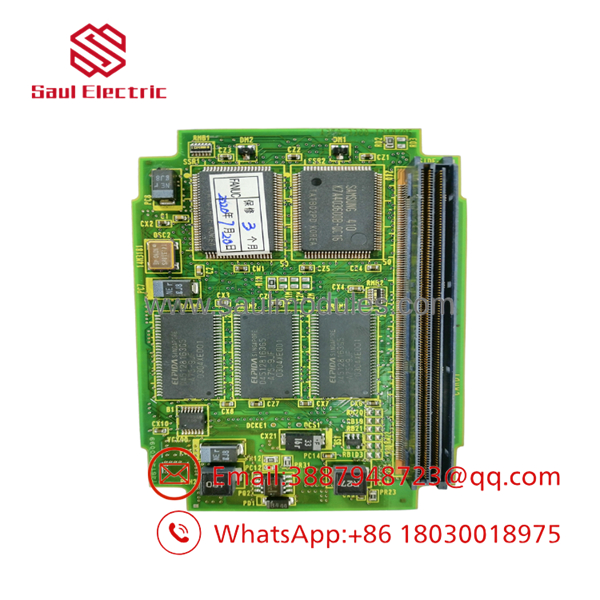

A20B-3300-0310/08F

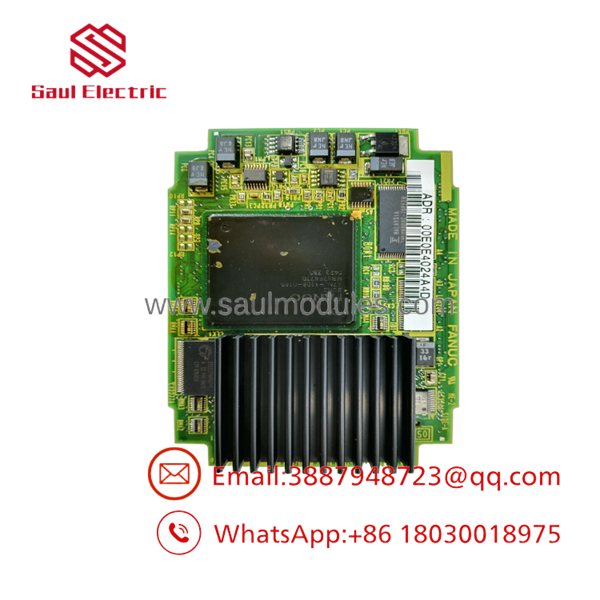

A20B-3300-0310/08F

Frequently Asked Questions (FAQ)

Q1. Which CNC controls use the A20B-3300-0310/08F?

It is commonly used in FANUC Series 16i-B and 18i-B CNC controls. Always verify the complete part number and controller configuration before ordering.

Q2. What processor does this module use?

The board uses a Pentium CPU with 16 MB DRAM for CNC operating system execution and machine control.

Q3. Can I replace only the CPU board?

Yes, provided the fault has been isolated to the CPU module and the remaining control hardware is functioning correctly. Confirm power supply health, memory status, and backplane integrity before replacement.

Q4. Will replacing the CPU erase machine parameters?

Potentially, yes. If SRAM contents are lost or corrupted, machine parameters, PMC data, and option information may need to be restored from a verified backup. Always create a full backup before removing the board.

Q5. Is this module still manufactured?

No. The /08F is a legacy FANUC service part. Most available units are supplied from verified surplus inventories or professionally refurbished stock.

Q6. Why do these CPU modules typically fail?

Actual processor failures are relatively uncommon. More frequent causes include aging backup batteries, unstable control power, memory corruption, excessive heat, or connector issues. Proper diagnosis can prevent replacing a functional CPU unnecessarily.

Q7. What warranty is typically provided?

Most industrial automation suppliers offer a 12-month warranty on functionally tested new surplus or refurbished CPU modules. Before commissioning, verify the hardware revision, restore all CNC parameters, and perform complete axis reference and machine function checks.
