Product Introduction
The FANUC A06B-6089-H104 is a high-efficiency single-axis AC servo amplifier module belonging to FANUC’s Alpha SVU series (Model SVU 1-80). Engineered for standalone machine axes, CNC feed drives, and robotic positioning units, the SVU standalone architecture combines internal power conversion and motion control circuits into a compact, narrow-footprint chassis.
Capable of delivering up to 80 Amps of peak output current, the A06B-6089-H104 drives medium-to-large FANUC Alpha (\alpha3/3000, \alpha6/2000, \alpha6/3000) and Beta series servo motors. Operating directly from a 200–230V AC line without requiring a separate Power Supply Module (PSM), it features a built-in 7-segment status LED display and optical fiber communication ports for seamless integration with FANUC 0i, 16i, 18i, and 21i CNC controls.
Key Technical Specifications
| Parameter | Value |
| Part Number | A06B-6089-H104 |
| Manufacturer | FANUC Corporation |
| Amplifier Model | SVU 1-80 (Alpha SVU Series) |
| Number of Controlled Axes | 1 Axis (Single-Axis Drive) |
| Rated Output Current | 80 A Peak |
| Main Power Input | 200–230V AC (\pm10\%), 3-Phase, 50/60 Hz |
| Control Power Input | 200–230V AC, Single-Phase |
| Compatible Motors | FANUC \alpha3/3000, \alpha6/2000, \alpha6/3000, \beta12/2000 |
| Interface Type | Type A / B PWM Interface (Direct CNC Fiber Link) |
| Cooling Method | Forced Air via rear heat sink and internal cooling fan |
Application Scenarios & The “Trench” Experience
When a CNC lathe’s X-axis servo amplifier suffers an IGBT power transistor short-circuit or control board failure, the CNC screen immediately throws a “414 SERVO ALARM” or displays an “IPM Overcurrent / Alarm 8, 9, or L” on the drive’s 7-segment LED. The machine stops mid-cycle, locking the axis and halting production. Installing a pre-tested replacement FANUC A06B-6089-H104 drive allows technicians to restore axis control without needing complex parameters or drive re-flashing.
- CNC Lathes & Turning Centers – Controls primary X and Z cross-slide feed axes.
- Vertical Machining Centers (VMC) – Powers tool changer magazines, rotary tables (4th axis additions), and auxiliary positioning axes.
- Industrial Automation & Transfer Units – Drives single-axis pick-and-place units and robotic part loaders.
Field Case Study
A automotive parts supplier experienced an unexpected “Alarm 8” (IPM Overcurrent) trip on an A06B-6089-H104 amplifier powering a 4th-axis rotary table. Metal dust accumulation had breached the drive’s lower cooling vents, shorting the internal IGBT module. Facing penalties for missed shift deliveries, the plant required an immediate replacement. We shipped a fully bench-tested surplus A06B-6089-H104 unit overnight. The maintenance crew swapped the drive chassis, reconnected the optical FSSB and power terminal block wires, and restored full 4th-axis machining operations in under 30 minutes.

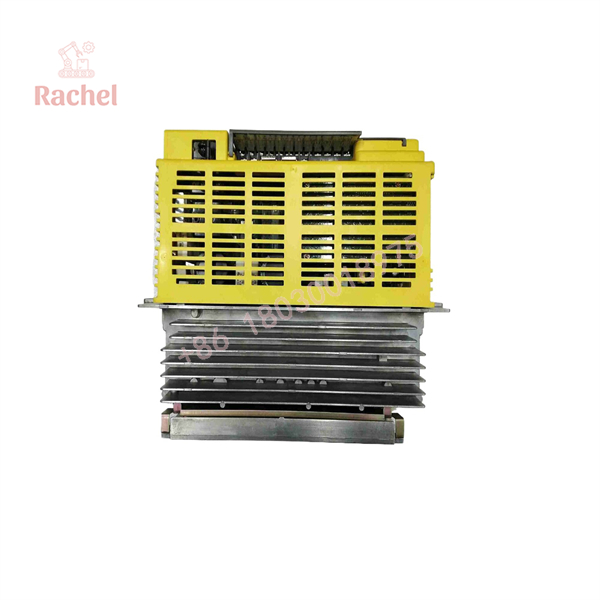

A06B-6089-H104

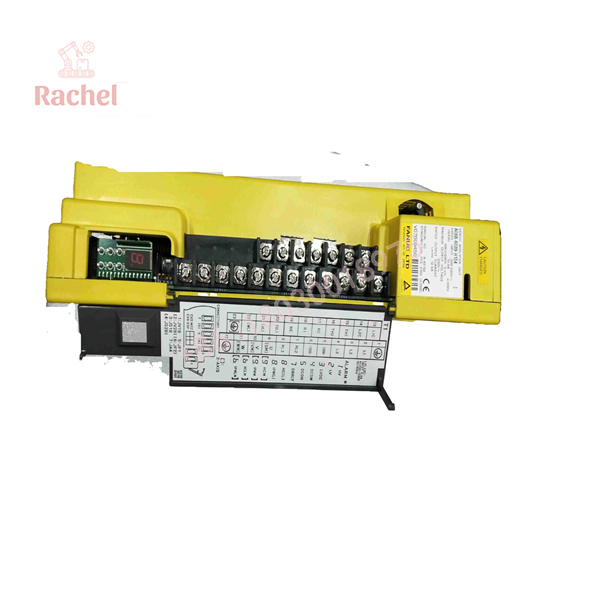

A06B-6089-H104
Transparency SOP: Quality Assurance & Testing
Every FANUC SVU amplifier in our inventory undergoes rigorous testing on dedicated FANUC CNC test benches before placement in stock.
- Inbound Mechanical Inspection: Inspect outer yellow housing latches, terminal strip threads, rear heat sink fins, and internal PCB traces for heat degradation.
- Capacitor & Power Section Check: Test main DC bus electrolytic capacitors for ESR and capacitance drift; perform diode and IGBT junction checks across input/output power bridges.
- Control Board & Fan Testing: Inspect and replace high-wear internal cooling fans; verify 24V DC control power rail stability.
- Closed-Loop CNC Load Test: Mount the drive on a FANUC 0i-MC CNC test bench, connect a matching Alpha servo motor, and run a 45-minute continuous duty cycle including rapid positioning, reversal stress tests, and peak current monitoring.
- Precision ESD Packaging: Vacuum-seal the drive in anti-static ESD shielding bags with fresh moisture absorbent, surrounded by custom-fit shock-absorbing foam in a heavy-duty shipping box.
The Veteran’s Tech Trap Guide
- ⚠️ Check the Internal Discharge / Regenerative Resistor Connections: The SVU series uses internal or external regenerative discharge resistors to dissipate deceleration energy. Verify that terminal jumper connections (
G,J, etc.) match your cabinet schematic before applying main power, or you risk blowing the internal discharge transistor on heavy deceleration stops. - ❗ Wait for the DC Bus LED to Extinguish Before Servicing: High-voltage DC bus capacitors inside the A06B-6089-H104 retain lethal voltage (>300V DC) even after main AC power is disconnected! Always measure the DC bus terminals with a multimeter to confirm voltage is below 50V DC before touching terminal screws or disconnecting wires.
- ⚠️ Replace the Rear Cooling Fan Preventatively: Overheating is the primary cause of IPM module failure in SVU drives. If the rear heat sink cooling fan stalls or becomes clogged with oil mist, the drive will trip on “Alarm OVT” or overheat under heavy duty cycles.
- ❗ Verify Fiber Cable Bend Radius: Handle optical fiber interface cables (JS1B / JS2B) with extreme care. Bending optical fibers sharper than a 25mm radius will crack the internal glass core, triggering permanent communication loss alarms on the CNC.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the main difference between an SVU (A06B-6089) and an SVM (A06B-6079/6096) drive?
A: The SVU series is a standalone servo amplifier containing its own rectifier stage that operates directly from incoming 200V AC power. SVM amplifiers require a separate Power Supply Module (PSM) to provide a shared DC bus.
Q: What does “Alarm 8”, “Alarm 9”, or “Alarm L” mean on the SVU 7-segment LED?
A: “Alarm 8” indicates an IPM (Intelligent Power Module) overcurrent fault, “Alarm 9” indicates an IPM overheat condition, and “Alarm L” indicates an IPM control power voltage drop or short.
Q: Can I swap an A06B-6089-H104 with an H105 or H106 module?
A: No. The suffix (-H104, -H105, -H106) indicates the current rating of the drive (e.g., SVU 1-80 vs. SVU 1-130). Installing a lower-rated drive will result in overload trips, while a higher-rated drive requires matching motor parameter adjustments.
Q: What warranty coverage comes with this surplus FANUC amplifier?
A: We back all clean surplus and reconditioned A06B-6089-H104 servo amplifiers with a full 12-month operational replacement warranty.
Q: Why purchase tested surplus drives instead of sending the failed unit for long repair turnaround times?
A: Repair turnaround times can take days or weeks. Installing a pre-tested, bench-verified surplus amplifier gets your CNC machine back into production immediately with zero programming required.
