FANUC A16B-2203-0910 i Series CNC Power Supply Module

Description

Product Introduction

The FANUC A16B-2203-0910 is a modular power supply unit (PSU) printed circuit board designed specifically for FANUC Series 16i, 18i, and 21i Model A & B CNC control racks. Slotting directly into the primary mainboard chassis, this power module converts unregulated external AC supply into regulated DC power planes that feed memory cards, main CPU processors, display backlights, and local control bus interfaces.

Built around a robust switching regulator design, the A16B-2203-0910 features onboard overvoltage and overcurrent protection circuits, heavy-duty filter capacitors, and diagnostic status LEDs. Its slide-in cassette housing allows for clean integration into the control rack, protecting sensitive control electronics against line voltage fluctuations and high-frequency industrial noise.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When an internal switching transformer or voltage regulator fails on an A16B-2203-0910 power board, the CNC screen instantly goes completely dark, or the system hangs in a perpetual reset loop. The CNC controller throws a system-level alarm, halting machining operations immediately. Replacing the faulty power card with a pre-tested unit restores DC power rails, allowing the CNC mainboard to complete its boot sequence without losing parameters stored in battery-backed SRAM.

• CNC Lathes & Turning Centers – Supplies main system logic power for FANUC 16i/18i/21i-TB multi-turret lathe controls.
• Vertical & Horizontal Machining Centers – Powers main CPU racks, LCD panels, and optical fiber communications on 16i/18i-MB milling machines.
• Grinding & EDM Machinery – Delivers ripple-free DC power to sensitive measurement boards and analog axis interface circuits.

Field Case Study

A high-precision grinding shop experienced a total control outage on a FANUC 18i-TA system following a shop-floor power surge. The CRT/LCD panel failed to illuminate, and status LEDs on the main CPU board remained dark. Diagnostics confirmed that the incoming 200V AC line was healthy, but the +5V DC logic rail on the original A16B-2203-0910 board had shorted due to a failed secondary electrolytic capacitor. We dispatched a bench-tested surplus replacement unit overnight. The technician unlatched the front retaining clips, swapped the power module, restored power, and had the grinder running production in under 15 minutes.

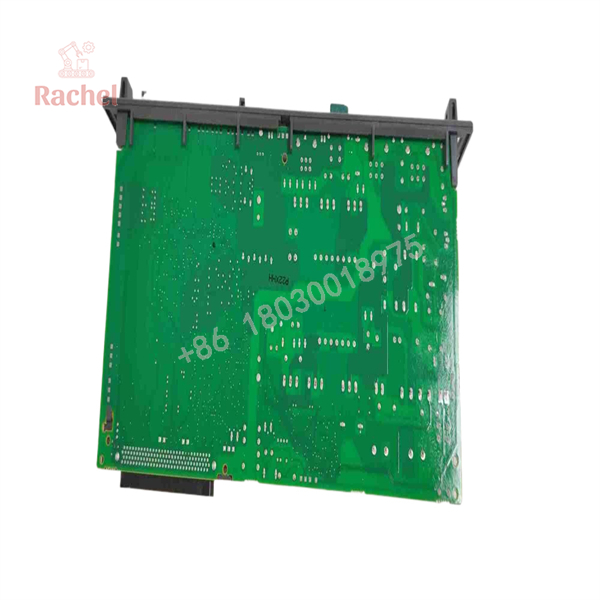

A16B-2203-0910

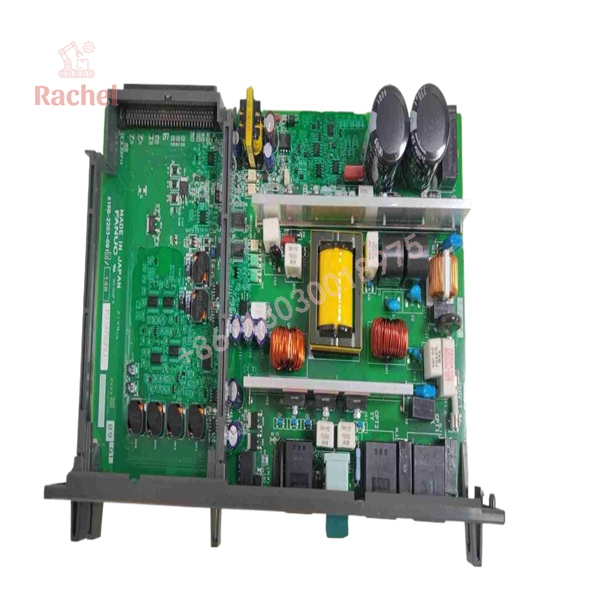

A16B-2203-0910

Transparency SOP: Quality Assurance & Testing

Every FANUC power supply PCB in our inventory undergoes testing on live CNC control chassis before being approved for stock.

1. Inbound Visual Inspection: Inspect board traces, electrolytic capacitors for bulging/leakage, edge connectors for oxidation, and input fuse integrity.
2. Component & Short Circuit Testing: Measure resistance across all primary and secondary DC output channels (+5V, +24V, \pm15V) to ensure no shorted diodes or MOSFETs exist.
3. Power-On Voltage Regulation Test: Install the board into a live FANUC 18i CNC rack. Apply 200–240V AC input and measure output voltage tolerances under full control load:
   • +5V Rail: 4.95V to 5.10V
   • +24V Rail: 23.5V to 24.5V
   • \pm15V Rails: Within \pm2\% tolerance
4. Thermal Stress & Burn-In Check: Run the board under full load in a test chassis for 60 minutes to verify thermal stability across all power transistors and heat sink assemblies.
5. ESD Anti-Static Packaging: Sealed in heavy anti-static ESD shielding bags with fresh desiccant packs, then padded inside custom foam shipping boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Check the Main CPU Battery Before Disconnecting Power: If your CNC system has been powered off for a long period, removing the power supply module or disconnecting power cables can drain a weak SRAM backup battery. Always verify or backup your parameters (NC parameters, PMC ladder, pitch error compensation) to a PCMCIA card or USB drive before servicing!
• ❗ Never Pull or Insert the Board Under Power: Inserting or removing the A16B-2203-0910 card while incoming AC power is connected will cause arcing across the edge connector, destroying logic ICs on the mainboard. Always shut off the main cabinet disconnect switch first.
• ⚠️ Check for External +24V Short Circuits: If a replacement power supply board immediately blows its internal glass fuse upon power-up, do not just install a larger fuse! A shorted 24V field wire (such as a crushed cable on an operator panel or solenoid valve) will draw excessive current and blow the new board. Clear field shorts before applying power.
• ❗ Verify Correct Input AC Voltage Jumper Settings: Ensure your incoming control transformer delivers the correct nominal voltage (200V AC – 240V AC). Operating the board continuously above 250V AC causes premature failure of the input MOV surge suppressors and smoothing capacitors.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the difference between the A16B-2203-0910 part number and the A20B-8101-0030 number stamped on the green PCB?

A: In FANUC terminology, refers to the complete functional module assembly (including housing, frame, and tested components), while A20B-8101-0030 is the raw part number printed on the bare circuit board itself. They represent the exact same physical unit.

Q: Can I replace an A16B-2203-0910 with an older A16B-1212 series power supply?

A: No. Power supply modules are rack-generation specific. The A16B-2203-0910 is designed for 16i/18i/21i Model A/B racks and is not pin-compatible with older 16A/18A non-i series controls.

Q: What should I do if the power supply “ALM” LED lights up red?

A: A red ALM LED indicates a fault condition such as an overvoltage, an internal short circuit on one of the DC output rails, or a blown secondary fuse. Turn off power immediately and inspect external 24V DC field wiring for short circuits.

Q: What warranty coverage comes with this surplus FANUC power supply card?

A: We back all clean surplus and reconditioned A16B-2203-0910 power supply modules with a full 12-month operational replacement warranty.

Q: Why choose a tested surplus unit over sending the old board out for repair?

A: Repair turnaround times can take weeks. Installing a pre-tested, bench-verified surplus module restores your CNC machine to full production in minutes with zero programming required.
