3. Product Introduction & Engineering Value
Flame scanners don’t get much attention until a burner trips on a false “flame failure,” and by then the operator wants answers, not a parts catalog. The 45UV5-1101 is Fireye’s self-checking UV scanner variant built for exactly that reliability requirement — the “self-checking” function continuously verifies the scanner itself is functioning correctly, not just reporting flame presence.
It uses a sealed, gas-filled UV-eye detector tube: two electrodes held at AC voltage that “avalanche” — an abrupt current pulse — when UV radiation of sufficient energy strikes them. This design targets fossil-fuel flames specifically (natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates, and diesel), and per Fireye’s own guidance, oil- or pulverized-coal-fired burners are better served by infrared scanners instead — a distinction worth getting right before ordering a replacement.
4. Technical Specifications
Descriptive parameters (verified against Fireye documentation and distributor listings):
- Detector type: Self-checking UV-eye detector, sealed gas-filled tube
- Mounting: 1″ BSP thread mount
- Operating frequency: 50 Hz (this exact variant — note that a 60 Hz counterpart exists elsewhere in the family; confirm you’re ordering the correct line-frequency version)
- Compatible amplifiers: 25SU3 and 25SU5
- Compatible control systems: Flame-Monitor, BurnerLogix, D-Series, FlameWorx, MicroM, and select P-Series Fireye controls
- Application scope: Fossil-fuel flames emitting UV (natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates, diesel)
- Not recommended for: Steam-atomized oil or pulverized coal burners — Fireye recommends IR scanners for these fuel types instead
- Certifications (series-level): CE, FM Approved, UL Listed
- Explosion-proof variants exist separately: 45UV5-1101EX (NEMA 7, Class 1 Div 1/2 Groups C&D; Class 2 Div 1/2 Groups E/F/G) and 45UV5-1101CEX (Cenelec EExd IIc) — these are different part numbers with different housings, not the base 45UV5-1101 itself

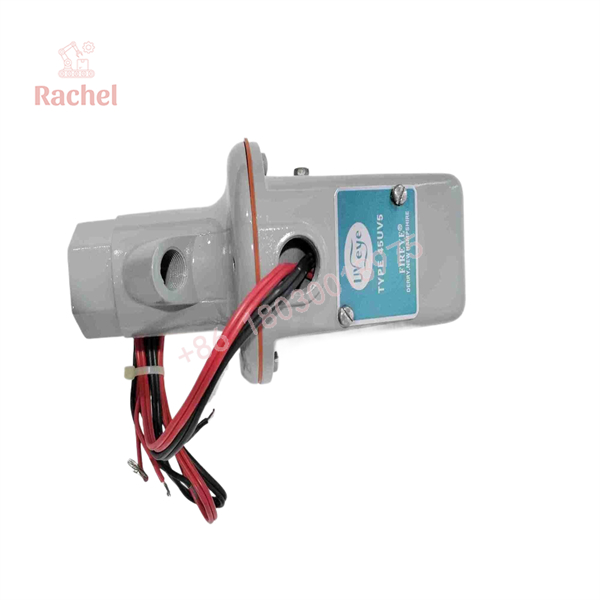

45UV5-1101

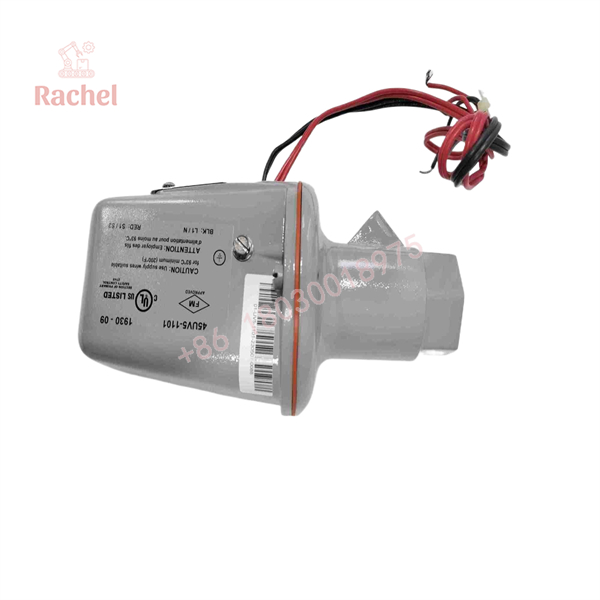

45UV5-1101
5. Field Application & The “Trench” Experience
Illustrative scenario — not a specific reported incident:
A recurring situation with UV flame scanners in general: a burner trips intermittently on “flame failure” even though the flame is clearly present, and the cause turns out to be UV interference rather than a scanner defect — other UV sources near the burner (welding arcs, other flames in the sightline, even certain lighting) can trigger a false signal on a UV-eye detector. Before condemning the scanner itself, checking the sightline for interference sources and confirming the mounting angle actually views only the intended flame is the standard first troubleshooting step.
Specific application scenarios:
- Single-burner industrial boiler flame safeguard, paired with a BurnerLogix or Flame-Monitor control for supervised automatic operation
- Process oven and heater monitoring in oil refinery or petrochemical settings, where reliable flame detection ties directly into burner management system safety interlocks
- Sulfur recovery unit burner monitoring, a specific application Fireye documents separately given the distinct combustion characteristics involved
6. Transparency SOP: QA & Testing
Generic verification framework for surplus/refurbished flame scanners:
- Visual inspection — check the UV-eye tube housing and mounting threads for damage, and inspect the connector/lead for wear
- Self-check function verification — confirm the scanner’s self-checking circuit operates correctly when connected to a compatible test setup or control, since this is the core safety function of this scanner type
- UV response test — verify detector response to a known UV source before shipment
- Frequency and part-number confirmation — verify 50 Hz designation and full part number match the physical label, since 50/60 Hz variants and explosion-proof housing variants share similar base part numbers
(General framework — replace with your actual documented QA process where it differs.)
7. The Veteran’s Tech Trap Guide
⚠️ 50 Hz vs. 60 Hz is not interchangeable. This specific 45UV5-1101 listing is the 50 Hz variant — confirm your system’s line frequency before ordering, since using the wrong frequency variant on a flame-safeguard device isn’t a minor compatibility issue.
⚠️ UV scanners are genuinely fuel-type sensitive. Don’t substitute a UV scanner onto a steam-atomized oil or pulverized coal burner expecting equivalent performance — Fireye’s own guidance points to IR scanners for those fuels. This isn’t a preference, it’s a detection-physics limitation.
PRO TIP: If you’re replacing a scanner because of nuisance flame-failure trips, check for UV interference sources in the sightline before assuming the new scanner will fix the problem — a scanner replacement won’t help if the actual cause is another UV source in the burner’s field of view.
⚠️ Explosion-proof variants are separate part numbers, not accessories. 45UV5-1101EX and 45UV5-1101CEX use different housings entirely — don’t assume you can retrofit explosion-proof protection onto a standard 45UV5-1101 without ordering the correct variant.
8. Dynamic FAQ
Q: What amplifiers is this scanner compatible with?
The 25SU3 and 25SU5 amplifiers, per Fireye’s documentation.
Q: What control systems can this scanner pair with?
Flame-Monitor, BurnerLogix, D-Series, FlameWorx, MicroM, and select P-Series Fireye controls.
Q: Is this scanner suitable for oil-fired burners?
Not recommended for steam-atomized oil or pulverized coal — Fireye recommends IR scanners for those applications instead. It’s designed for fossil-fuel flames that emit UV, like natural gas, propane, and similar fuels.
Q: Is there an explosion-proof version available?
Yes — 45UV5-1101EX (NEMA 7 rated) and 45UV5-1101CEX (Cenelec EExd IIc rated) house this same scanner in explosion-proof enclosures, but they’re separate part numbers with different mounting/housing hardware.
Q: What warranty applies to new vs. surplus stock?
[Insert your actual policy — new stock typically carries manufacturer warranty; surplus/used stock warranty terms vary by seller and should be confirmed directly.]
Q: Is the 60 Hz version a direct substitute if I only have the 50 Hz unit on hand?
Don’t assume so — confirm your system’s actual line frequency requirement before substituting, since this affects the detector’s operating characteristics.
