Description
Product Introduction
The Fireye BLL510 is a 2-line by 16-character liquid crystal display (LCD) module designed specifically for the BurnerLogiX series of burner management control systems. It serves as the primary human-machine interface on commercial and industrial boilers, providing real-time operational state monitoring, burner sequence tracking, and immediate diagnostic feedback during safety lockouts.
Unlike basic status LEDs, the BLL510 grants access to the internal BurnerLogiX parameters. It allows technicians to review programmer configurations, view operating history, and adjust factory settings directly from the front panel. Incorporating a BLL510 into your BurnerLogiX chassis eliminates blind troubleshooting, allowing maintenance staff to pinpoint flame signal dropouts or interlock faults without carrying external diagnostic tools.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Fireye (Kidde-Fenwal) |
| Part Number | BLL510 |
| Compatible System | Fireye BurnerLogiX YP / ZP Series |
| Display Type | Alphanumeric Liquid Crystal Display (LCD) |
| Format | 2 Lines x 16 Characters per Line |
| Keypad | Integrated membrane keypad for menu navigation |
| Operating Temperature | -4°F to 140°F (-20°C to +60°C) |
| Power Consumption | Powered directly from BurnerLogiX chassis (25 VA total system load) |
| Enclosure Rating | NEMA 4 / IP65 (when panel-mounted with kit 129-178) |
| Connection Interface | Multi-pin ribbon connector / RJ cable assembly included |
| Weight | Approx. 0.4 lbs (0.18 kg) |
Application Scenarios & The “Trench” Experience
It is 3 AM in the middle of January. A process steam boiler trips out on a flame failure lockout. The floor operator resets it twice, but it trips instantly during the pilot ignition sequence (PTFI). Without a display, you are left measuring DC microamps on test jacks with a multimeter while freezing in front of the burner deck. Plugging in a Fireye BLL510 immediately changes the game: the screen displays “LOCKOUT PTFI – NO FLAME SIGNAL” alongside the exact history buffer showing signal strength plummeted to 0 VDC within 0.8 seconds. You skip hours of guessing wiring faults and go straight to clearing a soot-covered UV scanner lens.
- Commercial HVAC Hydronic Boilers – Central heating applications – Requires real-time fault scrolling to minimize building downtime during lockouts.
- Industrial Process Steam Generation – Paper mills, chemical processing – Demands access to the programmer history to track intermittent interlock trips under variable load.
- Multi-Fuel Burners (Gas/Oil Dual Fuel) – Asphalt plants and food processing – Required to modify timing parameters and fuel selection setups safely via keypad.
- NEMA 4 Panel Enclosures – Outdoor or washdown boiler rooms – Utilized with remote mounting hardware to read flame safeguard diagnostics without opening the main enclosure door.

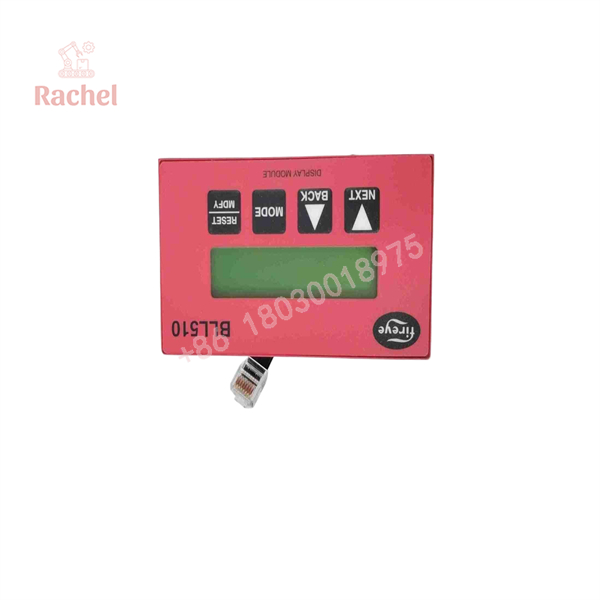

BLL510

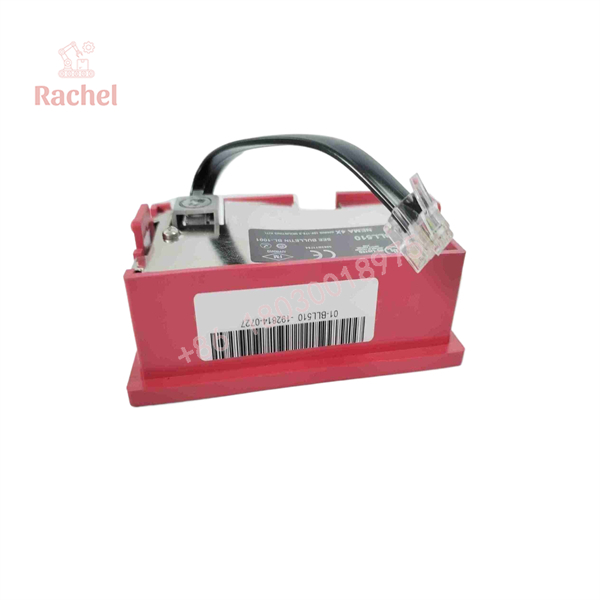

BLL510
Transparency SOP: Quality Assurance & Testing
We do not ship unchecked combustion components. Burner safety controls demand rigorous testing before reaching your panel.
- Inbound Physical Inspection: Verification of OEM anti-tamper seals, pin straightness on the rear header, and physical condition of the membrane overlay.
- Live Rig Bench Test: The BLL510 is mated to a energized BurnerLogiX test chassis loaded with a active YP programmer module.
- Contrast & Keypad Validation: Every key on the membrane panel is actuated to navigate menus. Contrast levels are verified under varying backlight temperatures.
- Comm Handshake Verification: Serial communication bus stress testing to verify no corrupted characters or dropped frames during simulated high-noise ignition cycles.
- ESD-Safe Packaging: Cleaned, sealed in an anti-static shield bag, and packed in high-density foam to withstand transit shock.
The Veteran’s Tech Trap Guide
- ⚠️ Temperature Limitations: The BLL510 uses a standard LCD panel. If exposed to ambient temperatures below -4°F (-20°C), the display will freeze, go dark, or react sluggishly. For extreme cold environments, switch to the OLED version (Fireye BLV512), which operates down to -40°F.
- ❗ Ribbon Cable Stress: When snapping the BLL510 directly onto the BurnerLogiX base unit or routing the extension cable through a door cutout, ensure you do not pinch the ribbon cable. A crimped cable drops display contrast or causes random garbage characters on the screen.
- ⚠️ Parameter Burn-In Trap: Be aware that parameter changes made via the BLL510 keypads on new BurnerLogiX programmers become permanently “burned in” after 8 hours of main fuel valve operational time. Double-check your timing configs before letting the boiler run through a full shift.
- ❗ NEMA 4 Gasket Seating: When using the remote panel mounting kit (129-178-4 or 129-178-8), check the rubber sealing gasket. If unevenly torqued, water will enter through the front cutout during washdowns and ruin the logic board behind the display.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the BLL510 module while the burner is actively firing?
A: Yes. The BLL510 is a display and parameter interface; it does not execute the core flame safety logic. You can plug it in or disconnect it while the BurnerLogiX chassis is energized without dropping the flame safeguard or interrupting the sequence.
Q: What is the main difference between the Fireye BLL510 and the BLV512?
A: Display technology and operating temperature range. The BLL510 uses a standard liquid crystal display (LCD) rated for -4°F to 140°F. The BLV512 uses an organic light-emitting diode (OLED) display with higher visibility in dark boiler rooms and an extended lower temperature rating down to -40°F.
Q: Do I need a BLL510 to run the BurnerLogiX burner control system?
A: No, the BurnerLogiX system can run a sequence without the display attached. However, you cannot alter factory default programmer settings, review detailed lockout codes, or check flame strength numerically without either a BLL510/BLV512 display or a remote comm link.
Q: Does this display module come with the remote panel mounting kit?
A: The standalone BLL510 includes the display module and standard interface cable. If you are mounting the display on the exterior door of a NEMA panel enclosure, you must purchase the remote mounting kit (part number 129-178-4 or 129-178-8) separately.
Q: What warranty is provided with these units?
A: All new surplus Fireye BLL510 modules come with a full 12-month operational replacement warranty.
Q: Why buy new surplus instead of going directly through OEM distribution channels?
A: Industrial supply chains for combustion controls frequently face extended lead times. Surplus sourcing provides immediate access to genuine, factory-sealed parts without waiting 6 to 10 weeks while a facility suffers lost production.
