Metso A413140 Bus Interface Board

Description

Product Introduction

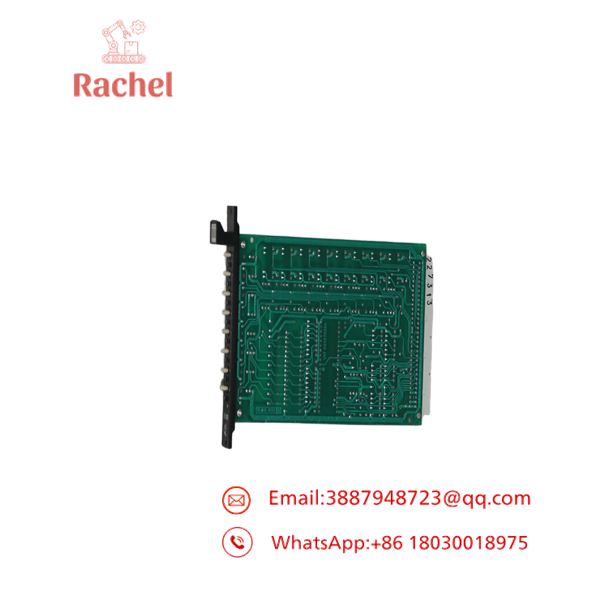

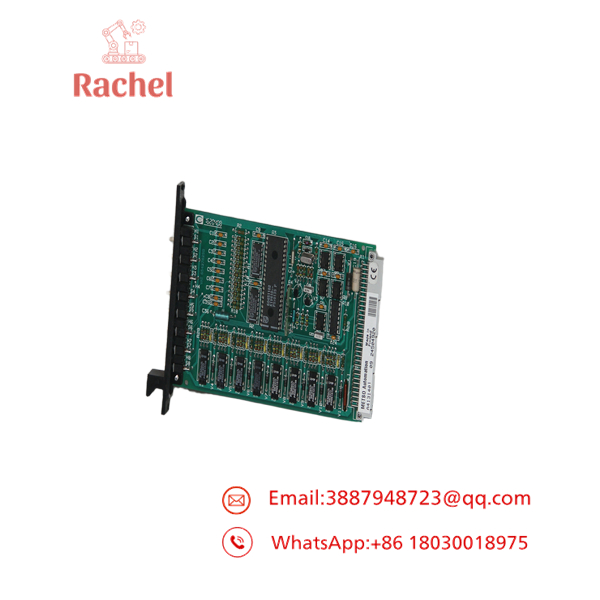

The Valmet / Metso Automation A413140 (BIU 8) is a specialized rack-mount bus interface board designed for legacy and active Valmet Distributed Control Systems (DCS). Operating within heavy process automation environments like paper mills, power generation stations, and chemical plants, this board coordinates data throughput across multi-drop backplane buses.

Featuring an integrated faceplate equipped with individual channel status LEDs and toggle switches, the A413140 enables plant technicians to isolate or monitor specific signal loops directly at the rack level. High-speed logic components on the PCB shield the main processing unit from noise and data collisions on sub-rack communication lines.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a shift on a paper machine wet-end control rack, intermittent telemetry dropouts caused downstream valve actuators to fault out on communication loss. Diagnostics indicated that an aging bus buffer channel on the local sub-rack interface was failing under high thermal load. Installing a fully tested A413140 (BIU 8) module cleared the communication buffer alarms and restored stable data transmission across all eight field channels without interrupting main plant CPU operations.

• Pulp & Paper Mill Control Systems – Coordinates bus communications for stock blending, paper machine drives, and drying section loops.
• Power Utility Boilers – Routes real-time burner control and auxiliary steam telemetry across backplane racks.
• Continuous Chemical Processing – Buffers digital/analog bus signals between field multiplexers and central DCS cabinets.

Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Inspection: The board, backplane gold fingers, solder joints, and front-panel toggle switches are inspected under magnification for thermal stress, corrosion, or mechanical wear.
2. Rack Power & Bus Initialization Test: Inserted into a powered Valmet test rack to confirm proper system bus recognition, power rail distribution, and channel initialization.
3. Channel-by-Channel Signal Verification: Each of the 8 communication channels is exercised under load to verify logic switching, LED response, and packet integrity across the backplane bus.
4. ESD Protective Packaging: Cleared boards are cleaned, enclosed in static-shielding moisture-barrier bags, and secured in fitted anti-static foam containers for transport.

A413140

A413140

The Veteran’s Tech Trap Guide

• ⚠️ Power down the sub-rack before insertion! Never pull or seat the A413140 board while the backplane power supply is live. Arc transients across backplane pins can permanently damage sensitive bus transceiver ICs.
• ❗ Check channel toggle positions upon installation. Ensure front-panel toggle switches are set to their operational default positions after installation; misplaced toggles can inadvertently lock out or bypass target communication loops.
• ⚠️ Ground yourself against ESD. Static electricity can damage high-density logic chips. Always wear a grounded wrist strap when handling the card by its front plate or PCB edges.

Frequently Asked Questions

• Q: What does “BIU 8” on the front panel stand for?A: It stands for Bus Interface Unit, 8-Channel. It designates the module’s function as a multi-channel bus transceiver board within the Valmet DCS rack.
• Q: Is the Valmet A413140 hot-swappable?A: No. System power to the target rack sub-assembly should be turned off before inserting or removing the card to prevent electrical or bus logic glitches.
• Q: Are these genuine OEM Valmet / Metso parts?A: Yes, 100%. We supply original OEM Valmet / Metso Automation components, fully bench-tested and verified prior to shipment.
