Core Product Summary
The Foxboro FBM06 (Part Number P0400YG) is a specialized Fieldbus Module engineered for the Foxboro I/A Series Distributed Control System (DCS). It provides direct interfacing between field instrumentation and the system’s redundant Fieldbus network, executing signal conversions for pulse counting and analog control loops within industrial process applications.
The module features four isolated, configurable pulse input channels capable of accepting high-frequency pulse signals up to 12.5 kHz from field devices such as turbine meters, vortex flowmeters, and contact sensors. Additionally, it provides four isolated 0 to 20 mA DC analog output channels designed to drive external field loads. The FBM06 operates on a redundant 26 to 42 V DC power supply input via the Fieldbus baseplate infrastructure.
Key Technical Specifications
| Specification Parameter | Verified Value / Detail |
| Product Type | Pulse Input / Analog Output Interface Module |
| System Family | Foxboro I/A Series DCS |
| Part / Model Number | FBM06 (P0400YG) |
| Pulse Input Channels | 4 isolated and independent channels |
| Maximum Input Frequency | 12.5 kHz (12,500 Hz) |
| Field Sensor Power Output | 24 V DC ±10% at 30 mA DC maximum per channel |
| Analog Output Channels | 4 isolated and independent channels |
| Output Signal Range | 0 to 20.4 mA DC |
| Maximum Output Load | 735 Ω |
| Output Resolution & Accuracy | 12 bits; ±0.05% of span at 25°C |
| Module Power Supply Input | Redundant 26 to 42 V DC |
| Maximum Power Consumption | 15 W maximum (Heat dissipation: 12 W maximum) |
| Channel Isolation Rating | 600 V AC withstand for 1 minute between channels or channel-to-earth |
Detailed Product Overview
The Foxboro FBM06 fulfills a hybrid role in the I/A Series architecture by integrating pulse rate accumulation and analog current output driving on a single module. Each pulse input channel processes discrete frequency outputs from flowmeters, tachometers, or electromechanical contacts, converting raw frequency data into process variable values for control processor application programs. The application software supports configurable options including per-module pulse rate resolution, meter scaling factors, and fail-safe behavior settings (hold or fallback data).
For control outputs, the four 0 to 20 mA channels drive control valves, actuators, or external indicators. The module provides 600 V AC galvanic isolation between individual channels and ground to protect internal control electronics against common-mode electrical noise and earth loops common in industrial field wiring. System integration allows optional termination assemblies equipped with output bypass jacks, enabling technicians to maintain process control signals via an external source during module maintenance operations.

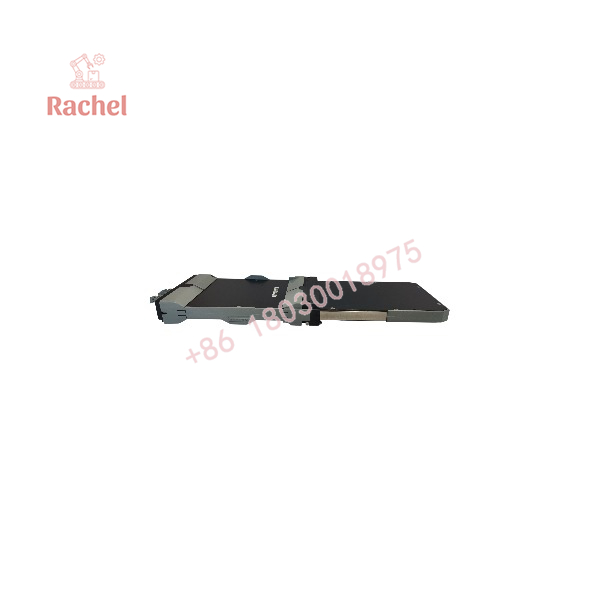

FBM06

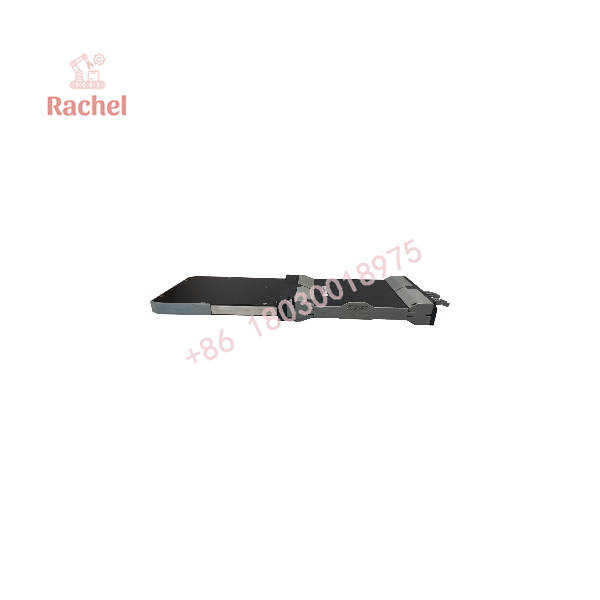

FBM06
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| System Platform | Foxboro I/A Series DCS | Connects directly to the redundant Fieldbus network. |
| Baseplate / Mounting | 100 Series mounting structure / enclosure | Utilizes standard I/A Series fieldbus module baseplates and card cages. |
| Termination Assemblies | Direct-connection or plug-in connector block options | Interfacing options include termination blocks with optional bypass jacks for online servicing. |
| Software Prerequisites | I/A Series System Software | Requires software configuration for pulse rate resolution, scaling, and fail-safe fallback values. |
Dimensions, Mounting & Connection Notes
- Mounting Method: Modular plug-in insertion into designated slots on Foxboro I/A Series 100 Series baseplates.
- Field Wiring Connection: Connects to field devices via dedicated termination cable assemblies, direct-connection blocks, or plug-in connector blocks.
- Isolation Boundaries: Field terminals are rated for isolation up to 600 V AC; field wiring must comply with standard low-voltage electrical codes (not intended for continuous connection to hazardous high-voltage circuits).
- Maintenance Provisions: Compatible with termination cable assemblies equipped with bypass jacks to allow manual insertion of an output bypass station during replacement.
FAQ
What is the Foxboro FBM06?
The Foxboro FBM06 (P0400YG) is a 4-channel pulse input and 4-channel analog output interface module used in the Foxboro I/A Series Distributed Control System.
What types of input devices can be connected to the FBM06?
Its pulse input channels accept frequency signals up to 12.5 kHz from devices such as turbine flowmeters, vortex meters, solid-state switches, and electromechanical contacts.
What are the power requirements for the module?
The module operates from a redundant 26 to 42 V DC fieldbus power supply and consumes up to 15 W of power. It also supplies 24 V DC (up to 30 mA) per input channel for field transmitter power.
Does the FBM06 support channel isolation?
Yes, each channel features independent galvanic isolation rated to withstand 600 V AC applied for one minute channel-to-earth or channel-to-channel.
What analog output range does the module provide?
Each of the four analog output channels delivers a 0 to 20.4 mA DC signal into a maximum external load resistance of 735 Ω.
