Description
Product Introduction
The Foxboro FBM207 (Part Number P0916PH) is a high-density, 16-channel discrete input Fieldbus Module engineered specifically for DC voltage monitoring applications within Foxboro I/A Series and EcoStruxure DCS environments. Unlike contact-sense variants that generate internal loop wetting power, the P0916PH hardware configuration is designed to monitor external 15 to 60V DC discrete voltage signals sourced directly from field devices, motor starters, and auxiliary control circuits.
Engineered for reliable digital state detection, the FBM207 P0916PH processes rapid contact toggles, relay feedback, and valve limit indications with sub-millisecond hardware response. High-grade optical isolation on every channel buffers host 200 Series baseplate electronics against ground loops, high-voltage inductive spikes, and harsh electrical noise typical of heavy processing plants.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM207 / P0916PH |
| Series | Foxboro 200 Series Subsystem |
| Input Channels | 16 optically isolated discrete channels |
| Input Type | Voltage Monitor (External DC Voltage) |
| Voltage Range | 15 to 60V DC (Logic High: >15V DC, Logic Low: <5V DC) |
| Input Impedance | 6.8 kΩ nominal |
| Galvanic Isolation | 1500V AC channel-to-bus optical isolation |
| Power Dissipation | 3W maximum from baseplate power rails |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 03:00 AM at a power station during a cold winter night. A steam turbine trips off-line, but the sequence-of-events recorder stalls because two critical generator protection relay signals failed to register on the DCS console. The protection relay output fired its 48V DC trip signal, but the input optocoupler on channel 7 of an aging P0916PH card was severely degraded, failing to switch logic states. With the plant manager demanding answers before approving a re-sync, replacing the P0916PH module with a bench-verified unit is the fastest path to clearing hardware diagnostics and restoring full trip-sequence monitoring.
Target Application Scenarios
- Motor Control Centers (MCC): Reads active 24V DC or 48V DC run, stop, and trip status outputs directly from auxiliary motor control relays.
- Substation Breaker Monitoring: Interface high-voltage circuit breaker trip signals and disconnector auxiliary contacts into DCS alarm sequences.
- Safety System Interlocks: Accepts active DC voltage interlock feeds from independent safety instrumented systems (SIS) or burner management units (BMS).
Field Case Study
An offshore platform in the Gulf of Mexico experienced intermittent input chattering on 48V DC fire-and-gas damper feedback lines connected to a Foxboro 200 Series baseplate. Diagnostics flagged a failing front-end resistor network on the installed card. We dispatched a bench-tested replacement module via helicopter courier. The instrument tech bypassed the alarm logic, hot-swapped the module on the live rack, and restored stable voltage detection across all 16 channels in under 12 minutes.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every FBM207 module undergoes a strict 5-stage workbench validation process prior to dispatch:
- Inbound Visual & Pin Verification: Inspection under 10x magnification to check PCB trace integrity, zero thermal discoloration around front-end optocouplers, and clean gold edge-connector plating.
- Cold Power Rail Checks: Ohmmeter resistance checks across internal bus lines and input stages to rule out shorted transient suppression diodes or degraded components.
- Live Baseplate Bus Handshake: The module is mounted into a live Foxboro 200 Series baseplate powered by a Control Processor to verify bus address identification, handshake, and status LED routines.
- 16-Channel DC Voltage Test: Precision DC power supplies cycle 0V, 24V, and 48V DC inputs across all 16 channels simultaneously. We measure optical switching thresholds and verify that input LED indicators and software state flags toggle cleanly without jitter.
- Anti-Static ESD Packaging: Cleared modules undergo contact solvent cleaning and are sealed in heavy-duty anti-static ESD shielding bags prior to custom foam packaging.

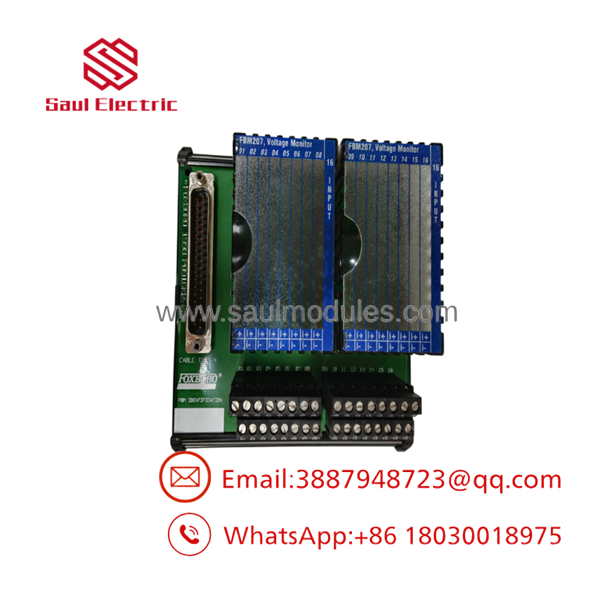

FBM207 P0916PH

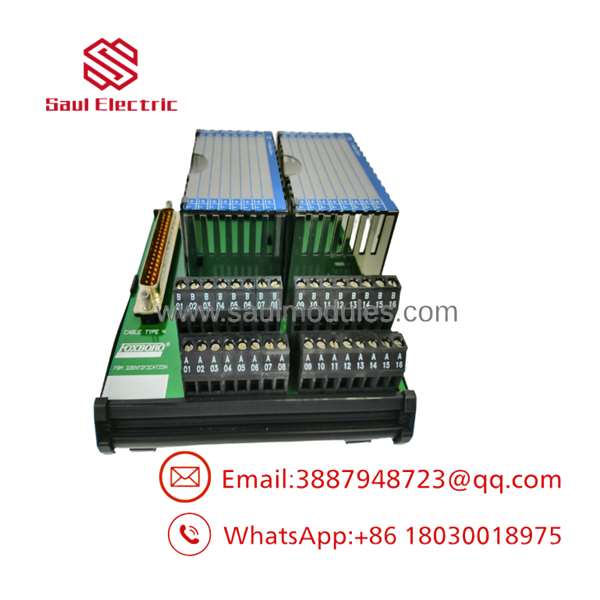

FBM207 P0916PH
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Confuse (Voltage Monitor) with P0917MF (Contact Sense)!
The requires an external DC voltage source (15 to 60V DC) fed through field contacts to register an ON state. It does NOT generate internal contact wetting power. If you hook up dry contacts directly to a without an external field voltage supply, your channels will sit at zero indefinitely.
- ❗ Verify Field Voltage Polarity.
Because the handles DC voltage monitoring, field wiring is polarity-sensitive. Reversing the positive DC feed and common return wires on the Termination Assembly will prevent the front-end optocouplers from forward-biasing, resulting in permanent OFF readings across affected channels.
- ⚠️ Watch Out for AC Voltage Bleed.
If long field cable runs run parallel to high-voltage AC conduits, induced AC voltages can cause input chatter or keep the high-impedance inputs latched high. Ensure field cables use grounded twisted-pair shielding to drain induced noise.
- ❗ Bypass Active Logic Before Hot-Swapping.
While Foxboro 200 Series baseplates fully support hot-swapping under power, pulling a module instantly drops all 16 channels to a “BAD” quality status in the DCS, which will trigger automated system trips if safety interlock blocks aren’t bypassed first.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro FBM207 module while the baseplate is powered?
A: Yes, Foxboro 200 Series baseplates support Hot Swap (Live Insertion and Removal). However, pulling the module forces all 16 connected discrete input blocks to “BAD” status in the software. Place all affected control and interlock blocks in Manual or Bypass mode prior to extraction.
Q: What is the exact difference between part numbers FBM207 and ?
A: “” is the general functional model designation for the 16-channel discrete input line, while “” is the precise Foxboro hardware part number identifying this exact 15-60V DC Voltage Monitor board configuration.
Q: Does the module supply 24V DC power for dry field contacts?
A: No. The is strictly a Voltage Monitor card. It requires an external 15 to 60V DC power supply wired into the field loop to detect state changes. If you need internal contact wetting power, look for the FBM207b (24V) or FBM207c (48V) models instead.
Q: What warranty covers these pre-tested modules?
A: Every / module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy pre-tested surplus stock instead of ordering directly from the OEM?
A: OEM lead times for specific legacy Foxboro 200 Series part numbers can stretch into weeks or months, and factory list pricing for mature hardware is steep. Pre-tested surplus stock allows you to repair critical plant interlocks immediately at a fraction of the cost.
