Description
Product Introduction
The Foxboro FBM214b (Part Number P0922AG) is an 8-channel discrete input Fieldbus Module engineered for the Foxboro I/A Series and EcoStruxure DCS platforms. Building on standard discrete input architecture, the “b” variant of the FBM214 series provides robust discrete logic state detection coupled with dedicated HART (Highway Addressable Remote Transducer) digital pass-through channels.
Designed to interface smart field devices—such as valve position switches, smart actuators, and digital safety transmitters—the FBM214b simultaneously reads primary discrete logic contacts and polls background HART parameters (e.g., secondary variables, device health, stroke diagnostics, and calibration status). Each channel features high-grade galvanic and optical isolation, protecting the host 200 Series baseplate electronics from severe electromagnetic interference, ground loops, and field voltage spikes.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM214b / P0922AG |
| Series | Foxboro 200 Series Subsystem |
| Input Channels | 8 isolated discrete channels with integrated HART modems |
| Communication Protocol | Discrete Logic Sensing + Pass-Through HART (v5/v6/v7) |
| Isolation Voltage | 1500V AC channel-to-bus optical isolation |
| Power Dissipation | 3.5W maximum from baseplate power rails |
| Mounting | Foxboro 200 Series DIN-rail baseplate (P0926KE or equivalent) |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 02:15 AM at an ethylene cracking facility. A high-pressure fuel gas emergency shutdown valve (ESD) signals “OPEN” on the local field indicator, but the main DCS console flags a “HART Communication Fault / Position Discrepancy.” The basic limit switch contact is closed, but the smart positioner’s diagnostic channel failed to pass stroke-timing telemetry through Channel 4 of an aging FBM214 module, halting the automated plant start-up sequence. Swapping out the faulty module for a bench-verified FBM214b (P0922AG) instantly re-establishes FSK modem communication with the asset management software, clearing the interlock stall and allowing operators to bring the furnace back online safely.
Target Application Scenarios
- Smart Valve Positioners & ESD Systems: Captures open/close limit switch logic while continuously monitoring smart valve diagnostics (packing wear, supply pressure, partial stroke testing).
- Burner Management Systems (BMS): Reads discrete trip contact states while gathering diagnostic data from smart optical flame scanners and fuel shut-off valves.
- Safety Instrumented Systems (SIS): Interfaces discrete field safety contacts directly into DCS interlock logic while routing HART diagnostic health metrics to maintenance management stations.
Field Case Study
A refinery in Texas experienced intermittent dropouts on 8 HART-enabled valve monitoring channels connected to a Foxboro 200 Series baseplate. Diagnostic logs revealed a failing internal modem filter circuit on the installed module. We dispatched a bench-tested replacement FBM214b (P0922AG) unit overnight. The site instrument technician bypassed the active safety logic, hot-swapped the FBM214b card on the live rack, and restored both discrete logic sensing and full HART asset management telemetry within 10 minutes.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every FBM214b module undergoes a strict 5-stage workbench validation process prior to dispatch:
- Inbound Visual & Mechanical Inspection: Detailed examination under magnification to inspect PCB trace integrity, edge-connector gold plating, housing latch mechanisms, and check for signs of thermal fatigue.
- Cold Power Rail Diagnostics: Resistance and continuity checks across internal power buses, optocoupler stages, and modem lines to rule out shorted components or degraded protection diodes.
- Live Baseplate Bus Handshake: Module is slotted into a live Foxboro 200 Series baseplate powered by a Control Processor to confirm bus address recognition, module handshake, and proper LED status routines.
- 8-Channel Discrete & HART Communication Test: Smart field devices and precision calibrators are connected to all 8 channels simultaneously. We toggle discrete input states while verifying FSK HART frequency modem handshakes, loop impedance responses, and variable pass-through in Foxboro I/A system software.
- Anti-Static ESD Packaging: Cleared modules receive solvent contact cleaning, thorough drying, and are sealed in heavy-duty anti-static ESD shielding bags prior to foam cell packing.

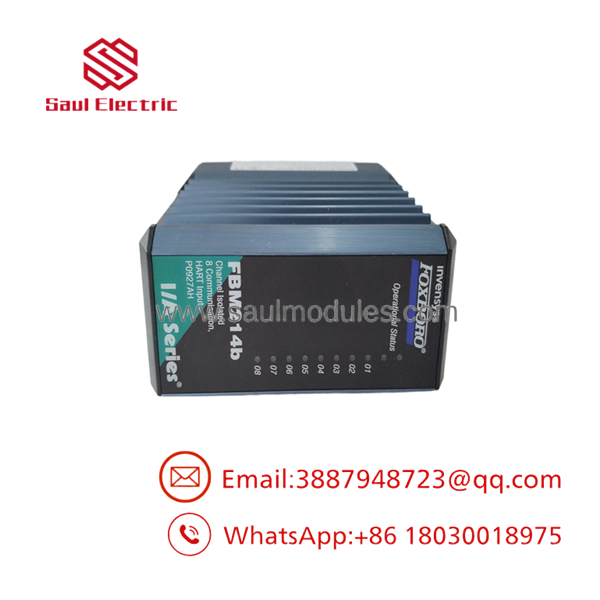

FBM214B

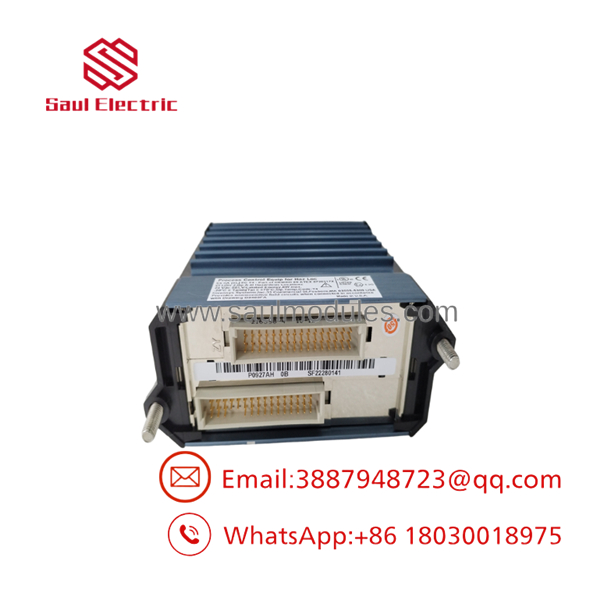

FBM214B
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Confuse FBM214b (HART Discrete) with Standard Discrete Cards (FBM207)!
While they share similar 200 Series form factors, standard cards like the FBM207 lack onboard HART modems. Installing a standard discrete card in place of an FBM214b will maintain basic binary sensing, but it will immediately sever all HART digital telemetry to your Field Device Manager (FDM) software.
- ❗ Verify Termination Assembly (TA) & Loop Impedance.
HART communication relies on specific loop resistance (typically 230–250 Ω) to modulate digital FSK signals. Ensure your Termination Assembly and wiring meet Foxboro HART loop requirements; insufficient impedance will cause intermittent HART dropouts even if discrete logic toggles normally.
- ⚠️ Check Software Driver Configuration.
The FBM214b requires proper block configuration (HART-enabled drivers) in the Foxboro DCS database to process pass-through variables. If swapping hardware does not immediately clear HART diagnostic faults, check whether the software block is assigned to standard discrete or HART pass-through mode.
- ❗ Bypass Active Safety Logic Before Hot-Swapping.
Although Foxboro 200 Series baseplates fully support Live Insertion and Removal (Hot Swap), pulling an FBM214b module immediately forces all 8 connected discrete channels to a “BAD” status in the DCS, which will trip downstream safety blocks if not manually bypassed first.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro FBM214b module while the baseplate is powered?
A: Yes, Foxboro 200 Series baseplates support Hot Swap (Live Insertion and Removal). However, pulling the module forces all 8 connected discrete channels to “BAD” status in the DCS. Place all affected control, alarm, and interlock blocks in Manual or Bypass mode prior to extraction.
Q: What is the exact difference between part numbers FBM214b and P0922AG?
A: “FBM214b” is the functional model designation used in DCS system documentation and control system engineering, while “P0922AG” is the exact Foxboro hardware part number stamped on the physical module and circuit board. They refer to the exact same hardware product.
Q: What is the primary difference between FBM214 and FBM214b?
A: The “b” revision represents a hardware update featuring refined component layouts and improved HART modem filter circuitry for greater reliability against severe industrial electrical noise and ground potential fluctuations.
Q: What warranty covers these pre-tested FBM214b modules?
A: Every FBM214b () module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy pre-tested surplus stock instead of ordering directly from Schneider Electric?
A: Factory lead times for specialized Foxboro 200 Series HART modules can extend into weeks or months, and factory list pricing for mature platform hardware is high. Pre-tested surplus stock allows you to restore critical plant interlocks and HART asset diagnostics immediately at a fraction of the cost.
