Foxboro P0926PA Termination Assembly I/A Series 200

Description

Product Introduction & Engineering Value

P0926PA is a Foxboro I/A Series 200 termination assembly used within the field-I/O architecture. It is the wiring interface rather than the Fieldbus Module itself, so correct identification is essential when planning a cabinet repair or spare-parts replacement.

For maintenance work, don’t select a substitute from the same P0926 family simply because the hardware looks similar. The exact TA configuration, associated FBM, field signal requirements, and terminal assignment should be confirmed before installation.

Technical Specifications

Engineering note

The publicly available information does not provide enough reliable evidence to assign P0926PA a specific channel count, field-voltage range, isolation class, or associated FBM without risking an inaccurate specification.

For procurement, that is an important distinction. Do not manufacture technical specifications from the part-number pattern. Confirm the actual P0926PA documentation or compare the replacement directly against the installed assembly.

Field Application & the “Trench” Experience

During a planned shutdown, a maintenance team finds intermittent I/O points in an older Foxboro cabinet. The associated FBM checks out, but the field termination hardware has visible signs of aging.

A spare P0926-series assembly is available. It looks compatible.

That is not enough.

Before removing the existing P0926PA, the technician should document the part label, associated FBM, terminal layout, and field wiring. The replacement then needs to be checked against those records. On legacy systems, a five-minute verification can prevent a cabinet from coming back online with incorrectly terminated field signals.

Niche application scenarios

• Motor starter status: running, stopped, fault, and auxiliary contacts.
• Motor-operated valve feedback: open/closed limit-switch signals.
• Process permissive circuits: equipment-ready, interlock, and sequence-status contacts.

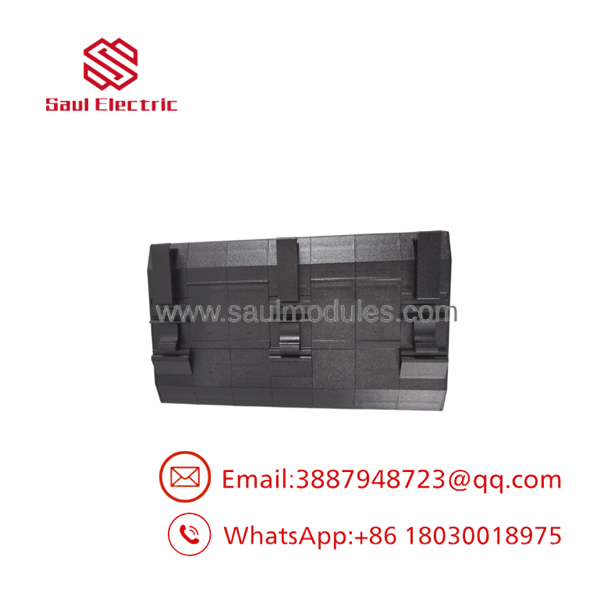

P0926PA

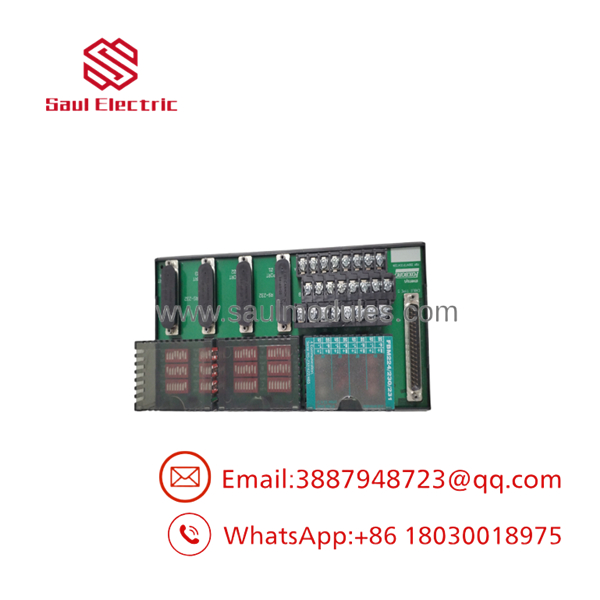

P0926PA

Transparency SOP: QA & Testing

For New Surplus or Refurbished P0926PA stock, a useful QA sequence is:

1. Confirm identity — Verify on the physical label.
2. Inspect condition — Check terminals, connectors, PCB surfaces, mounting points, and evidence of corrosion or overheating.
3. Inspect connectors — Look for bent, contaminated, oxidized, or damaged contacts.
4. Perform electrical checks — Verify accessible continuity and termination paths using the appropriate documentation.
5. Run functional testing when possible — Test representative field circuits with compatible Foxboro equipment.
6. Record the result — Document part number, condition, test scope, and warranty status.

A supplier should state exactly what “tested” means. Visual inspection and electrical functional testing are not the same thing.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming the P0926 prefix defines compatibility

It doesn’t. The complete part number matters.

PRO TIP: Before purchasing surplus stock, request a clear photograph of the actual label, including any revision or secondary identification markings.

⚠️ Trap #2 — Confusing a termination problem with an FBM problem

The TA and FBM occupy different positions in the I/O signal path. Establish which component is actually defective before ordering replacement hardware.

⚠️ Trap #3 — Skipping a wiring audit

Legacy I/A Series cabinets often contain field changes. Do not rely exclusively on terminal position or an old drawing. Record the installed wiring before transferring conductors.

Dynamic FAQ

What is Foxboro ?

is a Foxboro I/A Series 200 termination assembly used as part of the field-I/O termination architecture.

Is an FBM?

No. is termination hardware. The associated Fieldbus Module is a separate electronic device.

Can another P0926-series TA replace ?

Not automatically. Verify the complete part number, associated FBM, electrical characteristics, terminal configuration, and isolation requirements before substitution.

What should I verify before purchasing ?

At minimum, verify the actual part number, physical label, associated FBM, cabinet wiring, terminal assignment, and applicable Foxboro documentation.

How should New Surplus be evaluated?

Ask for actual-unit photographs, complete identification markings, condition classification, testing information, and written warranty terms. If the supplier claims the unit is unused, ask whether it has ever been installed or energized.

Does include a warranty?

Warranty coverage is supplier-specific. For a plant-critical spare, obtain the warranty period, failure definition, and return procedure in writing before purchase.
