Description
Product Introduction
The Foxboro FBM207 (Part Number P0914TD) is a high-density 16-channel discrete input Fieldbus Module designed for the Foxboro I/A Series and EcoStruxure DCS platforms. Operating as a critical binary interface, the FBM207 monitors field switch contacts, auxiliary motor contacts, valve limit switches, and safety interlock statuses across automated processing plants.
Built for high-speed state change detection, the FBM207 processes incoming voltage signals or contact closures with sub-millisecond hardware response times. Onboard optical isolation channels protect the backplane electronics from field-side voltage transients, inductive kicks, and ground loops, ensuring reliable discrete feedback for complex trip matrices and sequential logic routines.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM207 / P0914TD |
| Series | Foxboro 200 Series Subsystem |
| Input Channels | 16 discrete input channels |
| Input Type | Voltage Monitor / Contact Sense (determined by external Termination Assembly) |
| Filter Time | Configurable input digital filtering (e.g., 1ms to 50ms) |
| Galvanic Isolation | 1500V AC channel-to-bus optical isolation |
| Power Consumption | 3W maximum from baseplate power rails |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
| Form Factor | Foxboro 200 Series DIN-rail mount module |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 04:15 AM at an oil tank terminal during a heavy storm. An automated emergency shutdown valve trips closed during a custody transfer, but the DCS sequence halts—stuck in a “Permissive Waiting” state. The valve is physically shut, but the open/close limit switch signals tied to an old FBM207 card failed to register in the control room. The optic isolator on channel 3 blew out after a field wiring short, leaving the system blind. With pumps locked out and demurrage costs piling up, swapping the FBM207 card on the fly is the only way to re-establish contact verification and clear the interlocking sequence.
Target Application Scenarios
- Motor Control Centers (MCC): Monitors run/stop feedback, trip alarms, and local/remote selector switch positions from high-voltage drives.
- Pipeline Isolation & Valve Manifolds: Tracks open and closed limit switch feedback from double-block-and-bleed valves.
- Safety & Burner Management Systems (BMS): Reads flame detector contacts, high-pressure switches, and manual emergency trip pushbuttons.
Field Case Study
A pulp mill in South Carolina experienced intermittent contact chatter and false trip alarms on a chip-conveyor safety line connected to a 200 Series DIN-rail baseplate. Diagnostics pointed to a failing input conditioning stage on the existing module. We dispatched a bench-tested P0914TD module via morning courier. The technician bypassed the safety interlock sequence, swapped the module on the live rack, and restored stable contact monitoring in under 15 minutes without shutting down the feed line.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every / P0914TD module undergoes a rigorous 5-point workbench validation prior to dispatch:
- Inbound Visual & Pin Inspection: High-magnification check for PCB stress, component heat discoloration, edge connector pin wear, and housing latch integrity.
- Cold Power Rail Diagnostics: Cold-resistance profiling across internal power supply pins and input optocoupler lines to eliminate shorted components.
- Live Baseplate Bus Handshake: Module is mounted on a live Foxboro 200 Series baseplate connected to a Control Processor to verify bus communications, module identification, and LED status indicators.
- 16-Channel Contact/Voltage Testing: Precision signal simulators toggle voltage levels and physical dry contact closures across all 16 input channels simultaneously, verifying state transitions, LED status illumination, and software status flags.
- Anti-Static ESD Packaging: Cleared modules receive contact cleaning, solvent drying, and are sealed in anti-static ESD shielding bags prior to custom foam packing.

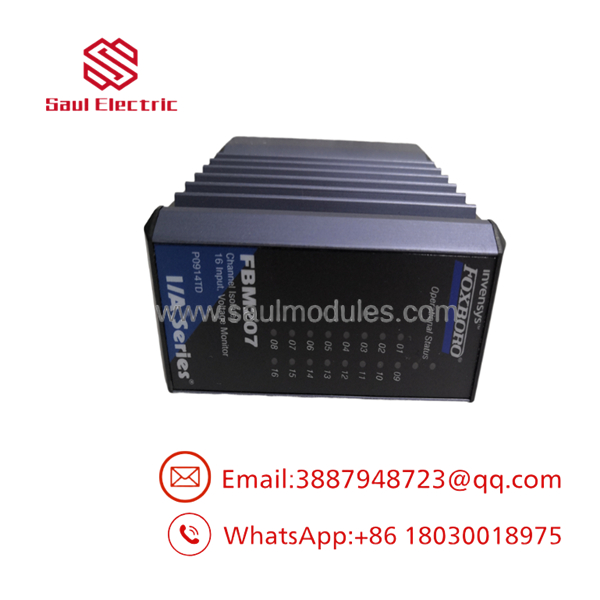

FBM207

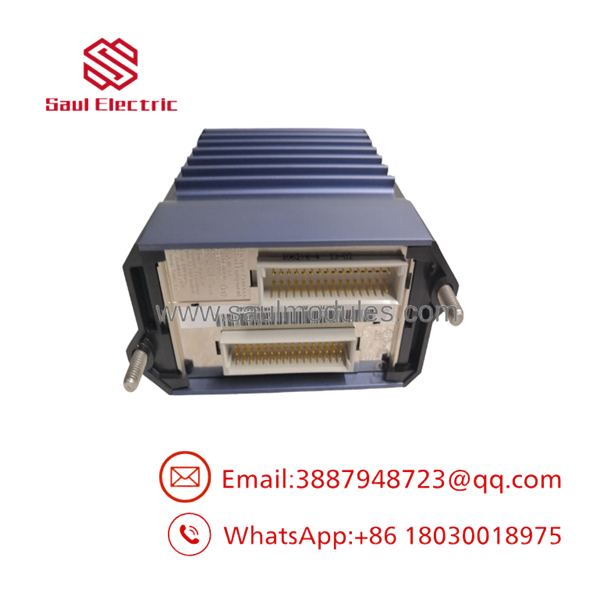

FBM207
The Veteran’s Tech Trap Guide
- ⚠️ Check Your Termination Assembly (TA) Voltage Rating!
The relies heavily on the specific Termination Assembly (TA) wired to it. Whether your field loops use 24V DC, 120V AC, or dry contact wetting power depends on the TA model used (e.g., passive vs. active relay TA). Connecting 120V AC directly to a 24V DC rated TA will destroy the front-end components on the card.
- ❗ Watch Out for Contact Bounce.
Mechanical limit switches and older relays often suffer from contact chatter. Make sure the digital input filter time in the Foxboro DCS software block (e.g., BIN block) is set appropriately (typically 10-20ms) to prevent false state changes from triggering nuisance alarms.
- ⚠️ Confirm Software Block Configuration.
Ensure the channel state logic (normally open vs. normally closed) in the DCS block matches the physical field wiring. A simple mismatch will cause inverse status readings across the whole channel bank.
- ❗ Bypass Active Safety Interlocks Before Hot-Swapping.
While 200 Series baseplates support live module replacement, pulling an will instantly set all 16 connected discrete input blocks to “BAD” status, which may trip automated process interlocks if safety logic blocks aren’t bypassed first.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro module while the baseplate is energized?
A: Yes, Foxboro 200 Series baseplates fully support Hot Swap (Live Insertion and Removal). However, ensure all 16 connected control and interlock loops are placed in Manual or bypassed in the software prior to extraction.
Q: What is the exact difference between part numbers and P0914TD?
A: “” is the functional model designation used in system documentation, while “P0914TD” is the exact hardware part number stamped on the module casing and internal PCB assembly. They refer to the exact same physical product.
Q: Does the provide wetting power for dry field contacts?
A: Wetting power is supplied via the external Termination Assembly (TA) and its associated field power supply, not generated directly by the module itself. Check your TA wiring layout to verify contact power sourcing.
Q: What warranty covers these pre-tested modules?
A: Every / sold carries a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy surplus or pre-tested stock instead of ordering directly from the OEM?
A: OEM lead times for mature DCS component replacements can stretch into weeks or months, and factory pricing for older platform hardware is often extremely high. Pre-tested surplus stock allows you to restore critical process lines immediately at a fraction of the cost.
