Fuji Electric FRN5 Series FRENIC VFD AC Drive

Description

Product Introduction

The Fuji Electric FRN5 model prefix designates heavy-duty Variable Frequency Drives (VFDs) within Fuji’s renowned FRENIC inverter family (such as the FRENIC5000G11 or FRENIC-Eco series). Built for precision speed control of three-phase asynchronous motors, the FRN5 platform handles everything from standard pump and fan variable torque curves to demanding constant torque machinery like extruders and overhead cranes.

Equipped with dynamic vector control and advanced torque-limiting algorithms, the FRN5 series provides stable low-speed torque without motor stiction or excessive heat buildup. The drive integrates onboard protective functions, programmable digital/analog I/O, and fieldbus communication options to seamlessly link into PLC architectures. When a legacy FRN5 fails on an active production line, sourcing a direct pre-configured replacement eliminates the costly downtime associated with rewiring control enclosures or reprogramming brand-new drive logic.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

We got hit with an emergency weekend call at a plastics recycling facility where a critical main extruder drive threw an irreparable overvoltage error during a power spike. The OEM drive was an old Fuji FRN5-series unit. Modern replacement VFDs had different physical dimensions and control terminal layouts, which would have required 12 hours of panel metalwork and PLC ladder edits. Swapping in a pre-tested, identical FRN5 unit got the line back online before the Monday morning shift start, saving the plant over $40,000 in lost throughput.

• Extruders & Mixers: Maintaining high starting torque and tight speed regulation under varying batch viscosities.
• Material Handling & Cranes: Utilizing internal brake chopper control for smooth acceleration and deceleration of heavy loads.
• HVAC & Industrial Pumps: Running PID loop control directly on the drive to regulate fluid pressure without master PLC intervention.
• Conveyor Systems: Synchronizing multi-drive lines over RS-485 network loops to prevent belt slippage.

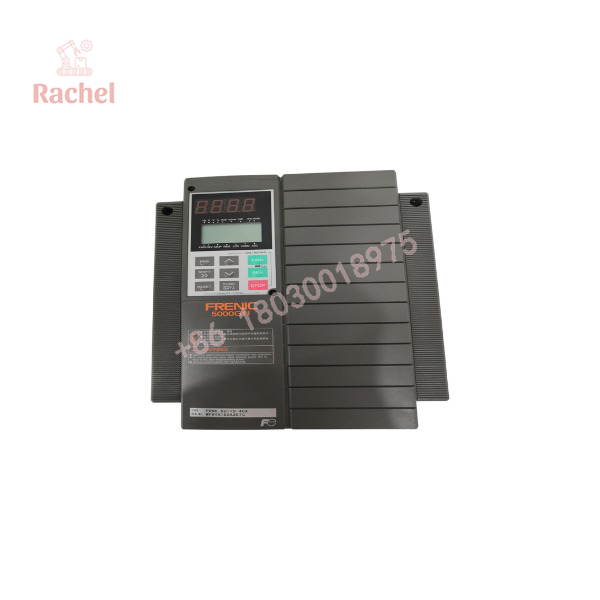

FRN5

Transparency SOP: Quality Assurance & Testing

We never ship untested drives. Every Fuji FRN5 inverter undergoes a complete diagnostic run before entering our inventory:

1. Inbound Visual & Mechanical Check: Inspect the chassis, keypad display, cooling fans, and main terminal block for heat deformation or mechanical strain.
2. DC Bus & Power Semiconductor Audit: Perform diode/IGBT junction tests and check DC bus filter capacitors for capacitance drop or high ESR.
3. Power-On & Parameter Clear: Apply rated 3-phase input voltage, check internal power supply rails, and clear residual fault histories.
4. Full-Load Motor Bench Run: Connect the FRN5 to an industrial test motor, executing multi-speed ramps, forward/reverse transitions, and thermal load tests.
5. Clean & Anti-Static Seal: Blow out heatsink fins, re-install terminal covers, and pack the unit in custom anti-static foam containment.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ F10/F11 Terminal Board Pinouts: If you are swapping an older FRN5 unit with a slightly different sub-variant (e.g., moving between G11S and P11S series), do not assume the control terminal blocks match. Double-check your 0-10V and 4-20mA analog wiring pins. Wiring an active current loop into a voltage terminal will instantly fry the analog input board.

❗ DC Bus Capacitor Age & Re-Forming: If your replacement FRN5 drive has sat in storage for over two years without power, do not apply full line voltage immediately. The electrolytic capacitors in the DC bus need to be slowly powered up using a variable AC transformer (Variac) to re-form their dielectric layers, or you risk popping the bus caps at power-on.

⚠️ Keypad Parameter Transfer: Copy parameter sets using the removable digital keypad before pulling a dead drive (if the logic board still powers up). Fuji drives store dozens of application-specific motor tuning constants (F, E, C, and P codes). Missing a custom motor tuning parameter will cause instant overcurrent trips (OC1/OC2) on start.

Frequently Asked Questions (FAQ)

Q: Can I run a single-phase AC supply into a 3-phase FRN5 drive?

A: Generally, no. Running a 3-phase Fuji FRN5 drive on single-phase input requires derating the output current capacity by at least 50% to avoid unbalancing the diode bridge rectifier and tripping input phase-loss faults (ORL). Always check the specific drive manual before applying single-phase power.

Q: What does the “OC” fault code mean on a Fuji FRN5 display?

A: OC1, OC2, or OC3 indicates an Overcurrent fault during acceleration, deceleration, or steady-state operation. This usually points to a short circuit in the output motor lead, improper acceleration time settings, or a damaged IGBT module.

Q: Are replacement cooling fans available for these older FRN5 frames?

A: Yes. Cooling fans on the rear heatsink are modular. If your drive displays an OH2 (Overheat) fault, replacing the internal heat-sink fan is typically a quick 5-minute fix that extends the lifetime of the inverter.

Q: Why choose a surplus FRN5 over retrofitting a modern FRENIC-ACE or MEGA drive?

A: A direct FRN5 replacement is a drop-in swap: no mechanical mounting modifications, no terminal re-wiring, and no PLC program rewrites. It gets your machine running in under an hour versus a multi-day retrofit project.

Q: What is the standard warranty on these units?

A: Every Fuji FRN5 drive supplied comes complete with a 12-month operational replacement warranty backed by our engineering testing facility.
