Product Introduction
The Galil DMC-9940 is a versatile, standalone 4-axis motion controller engineered to operate independently of a host PC bus. Designed for embedded and unbundled motion control applications, it handles complex multiaxis trajectory generation, vector positioning, and electronic gearing for both servo and stepper systems. Its board-level form factor makes it ideal for mounting directly inside machinery control cabinets or OEM instrument enclosures.
Unlike bus-based cards, the DMC-9940 executes custom Galil DMC programming internally from non-volatile memory. It interfaces via serial (RS232) or Ethernet communications, allowing it to communicate with touchscreens, PLCs, or host computers only when supervisory data or parameter changes are required. For retrofits and legacy system support, maintaining an exact DMC-9940 replacement card guarantees drop-in compatibility without needing to rewrite motion code or re-engineer mounting footprints.
Key Technical Specifications
| Parameter | Value |
| Controller Type | Standalone Board-Level Motion Controller |
| Number of Axes | 4 axes (independent or coordinated; servo/stepper configurable) |
| Processor | 32-bit microcomputer / RISC architecture |
| Communication Ports | RS232 serial port, Ethernet 10Base-T (model dependent) |
| Program Memory | Non-volatile flash memory for DMC programs, variables, and arrays |
| Positioning Resolution | 32-bit quadrature tracking |
| Command Output | ±10V Analog (Servo) / Step & Direction (Stepper) |
| Encoder Interface | Quadrature encoder inputs up to 12 MHz |
| Digital I/O | Uncommitted digital inputs and outputs, optical isolation options |
| Dedicated Inputs | Forward/Reverse limits, Home switch, Abort input per axis |
| Power Requirements | +5V DC, ±12V DC (or single 24V DC on specific breakout variants) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Application Scenarios & The “Trench” Experience
A field emergency with a standalone board usually starts when an automated sorting line or OEM packaging station stops responding completely. The status LEDs on the controller go dark or freeze, and the serial link to the HMI drops. After checking the power supply rails, you realize a voltage transient on an unisolated sensor input fried the onboard communications processor. The entire line is dead, and the machine builder who wrote the original software went out of business years ago. Having a direct DMC-9940 replacement board on hand allows you to flash the saved .dmc application file directly into non-volatile flash and get the line running before management starts calculating per-minute downtime losses.
- Automated Packaging Equipment – Multiaxis Indexing & Sealing – Drives continuous web feed, rotary knives, and flying cut-offs without relying on a host PC.
- Specialty CNC & Dispensing Systems – X-Y-Z-A Contour Routing – Manages high-speed vector look-ahead and continuous linear/circular interpolation.
- Textile & Wire Winding Machinery – Electronic Gearing & Camming – Coordinates spindle rotation with traverse positioning using precise digital encoder feedback.
- Lab Automation & Robotics – Multi-axis Sample Handling – Operates inside compact medical or analytical instruments requiring low power consumption and standalone operation.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Galil test benches. Every DMC-9940 controller undergoes a strict 5-step engineering check before dispatch:
- Inbound Inspection: Visual audit under magnification for physical trace defects, solder joint fatigue, heat stress around power components, and OEM chip verification.
- Live Rig Testing: Powered up on a dedicated test bench. Verifies RS232 and Ethernet handshake, flash memory read/write cycles, and basic command interpretation.
- Electrical Parameter Checks: Oscilloscope validation of Step/Direction output frequencies, ±10V command line linearity, limit switch opto-isolators, and encoder channel quadrature decoding.
- Firmware Verification: Checking and logging the onboard Galil firmware revision, verifying array allocation registers, and restoring clean factory memory defaults.
- Final QC & Anti-Static Packaging: Boards are thoroughly cleaned with electronics-grade solvent, sealed in static-shielding bags, and packed in heavy-duty protective foam boxes.

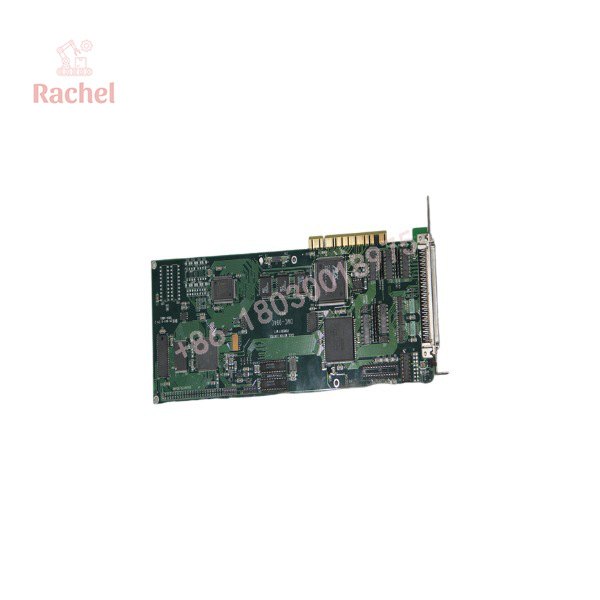

DMC-9940

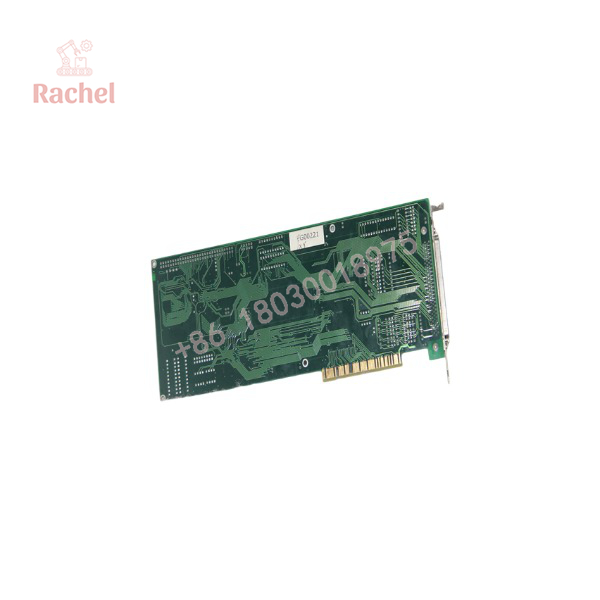

DMC-9940
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Double-Check External DC Supply Rail Voltages!
Unlike PCI cards that pull regulated power from a computer motherboard, the DMC-9940 requires clean, external DC power rails. Feeding dirty 24V power or sagging 5V supply lines into the board will cause erratic resets, corrupted variables, or permanent damage to the onboard analog output stages.
❗ Backup Your .DMC Program Before Swapping!
Standalone controllers store their code in flash memory. A replacement board shipped from stock will be blank. Make sure you upload and save the working .dmc program, variables, and arrays from your original controller using Galil software before taking the old unit offline.
⚠️ Watch Board-Level Pin Out and Header Alignments
The DMC-9940 uses high-density pin headers and ribbon cable connectors rather than heavy-duty terminal blocks. Take a clear photo of all ribbon cable orientations and pin-1 markers before disconnecting. Plugging a ribbon cable in backward can feed signal voltages into ground pins.
❗ Ensure Ground Isolation on Sensor Inputs
If your limit switches, home sensors, or encoder cables run long distances alongside high-voltage motor cables, ground loops will kill the digital inputs. Use optoisolated breakout interfaces (such as Galil ICM series modules) to isolate field wiring from the delicate DMC-9940 logic ground.
Frequently Asked Questions (FAQ for Conversion)
Q: Does the Galil DMC-9940 require a host computer to operate?
A: No. Once your motion control code (.dmc script) is downloaded into the board’s non-volatile memory, the DMC-9940 runs completely standalone upon power-up.
Q: Can I replace a DMC-9940 with a newer Ethernet-based Galil controller like the DMC-4040?
A: Functionally yes, but not drop-in physically. While Galil software programming commands are mostly backward-compatible, newer models use different mounting footprints, connector types, and wiring accessories. A direct DMC-9940 replacement avoids cabinet mechanical and electrical redesigns.
Q: How do I load my existing program onto a new DMC-9940 board?
A: Connect your PC to the DMC-9940 via RS232 or Ethernet using Galil Suite or SmartTerm software. Use the upload/download tools to transfer your saved .dmc program file into the board’s flash memory and execute the burn command (BP).
Q: Is this unit brand new from Galil?
A: The DMC-9940 series is a legacy, discontinued model line. Our inventory consists of high-quality New Surplus (unused original stock) or fully refurbished and bench-tested units sourced through vetted global OEM inventories.
Q: What warranty is provided with this controller?
A: Every DMC-9940 card sold includes a comprehensive 12-month functional replacement warranty. If any hardware defect or component failure occurs under normal operating conditions within one year, we will repair or replace the unit immediately.
