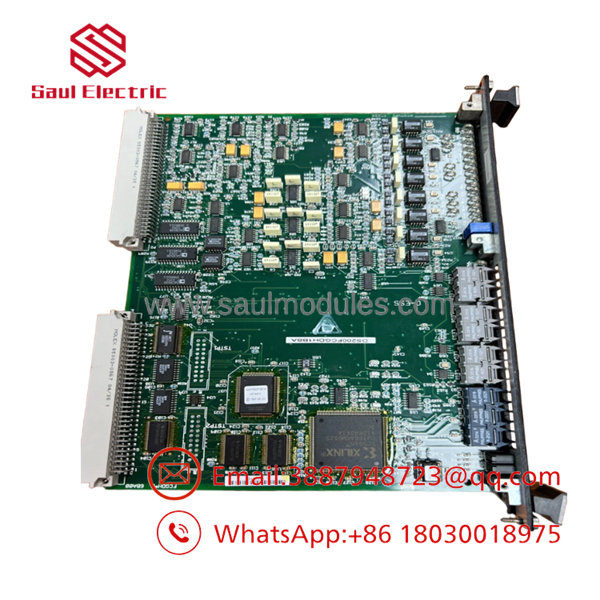

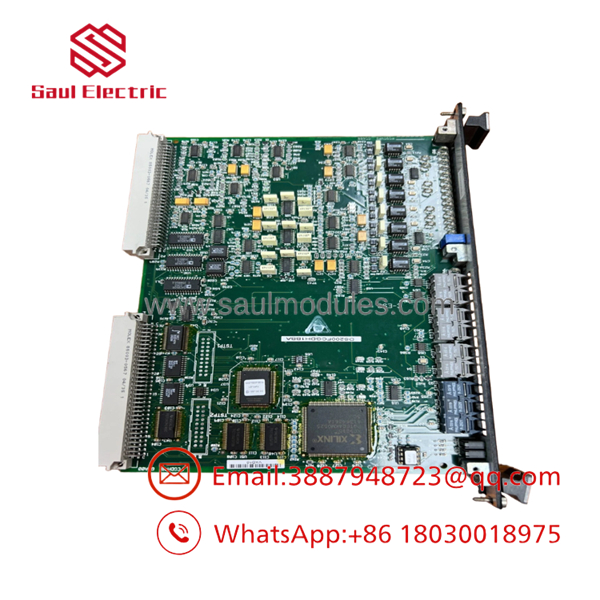

GE DS200FCGDH1BBA Gate Distribution Board Mark V

Description

Product Introduction & Engineering Value

The GE DS200FCGDH1BBA is a drive-control interface board rather than a general-purpose I/O card. Its job is tied directly to the power-conversion bridge: it receives information from the DSPC, translates control information into cell-gating signals, and receives multiplexed cell-status and feedback information from the bridge.

For replacement work, the FCGD function and complete DS200FCGDH1BBA designation are more useful than generic descriptions such as “DSP drive module.” Several online listings incorrectly describe this part with unrelated voltage, current, and communications specifications, so those figures should not be accepted without the applicable GE documentation.

Technical Specifications

The FCGD board receives DSPC information, converts the relevant control signals into cell-gating signals, and processes multiplexed cell-status information returned from the bridge. Feedback signals are also received and scaled by the board.

Specification warning: Third-party pages variously list this part as “DSP Drive Control,” “Gate Distribution and Status Card,” and even a Mark VI module. The stronger part-specific evidence identifies DS200FCGDH1BBA as a Mark V FCGD card. Do not use generic reseller specifications such as “200 A,” “24 VDC,” or “RS-485” as engineering ratings for this exact PCB without OEM confirmation.

Field Application & the “Trench” Experience

A gate-distribution board is one of those components where a fault can quickly become a system-level troubleshooting problem.

Picture a legacy GE drive undergoing an outage inspection. The drive reports bridge-related faults, but the power semiconductor assemblies test normally. The technician traces the control path back through the DSPC and finds abnormal gate-status behavior associated with the DS200FCGDH1BBA.

The replacement process starts with photographs and wiring records. The technician confirms the FCGD designation, board revision, connector positions, and associated DSPC configuration. The spare is electrically screened before installation. Afterward, the team verifies gate-control behavior and bridge feedback rather than simply checking whether the board powers up.

That distinction matters. A gate-interface board can be electrically alive and still fail its actual control function.

Niche application scenarios

• Six-pulse phase-controlled non-reversing bridge control: distributing cell-gating information and processing bridge-status feedback.
• GE LCI drive maintenance: supporting legacy drive control and gating functions in compatible installations.
• Mark V spare-parts management: maintaining an exact FCGD replacement for aging GE drive equipment.

DS200FCGDH1BBA

DS200FCGDH1BBA

Transparency SOP: QA & Testing

For DS200FCGDH1BBA, QA should be centered on the gate and feedback circuitry:

1. Identification — Verify , FCGD designation, and revision markings.
2. Visual inspection — Examine the PCB, components, connectors, solder joints, traces, and conformal coating.
3. Connector inspection — Check for damaged pins, contamination, oxidation, or mechanical stress.
4. Electrical screening — Check for shorts, abnormal resistance, and obvious component failures.
5. Signal-path testing — Where suitable equipment exists, test the gate-control and bridge-status paths.
6. Feedback verification — Check the relevant feedback and status-processing circuits.
7. System-level test — In an appropriate GE drive test environment, confirm communication with the DSPC and proper bridge-control behavior.
8. Traceability — Record board condition, revision, test scope, serial information when available, and warranty.

For New Surplus inventory, request photographs of the actual board and confirm whether it has ever been installed or repaired.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t buy it as a generic “DSP drive control.”
The more precise identification is FCGD Gate Distribution and Status Card. The board’s function is closely tied to the drive bridge.

⚠️ Trap #2 — Don’t confuse the FCGD with the DSPC.
The DSPC provides information to the FCGD; the FCGD then handles gate distribution and bridge-status processing. They are related, but they are not the same board.

PRO TIP: Before removal, photograph every connector and record the associated DSPC and bridge hardware. This makes post-installation troubleshooting much easier.

⚠️ Trap #3 — Ignore unsupported catalog specifications.
Some reseller pages assign 24 VDC, 200 A, RS-485, or other generic specifications to this part. Those claims conflict with the more specific FCGD documentation and should not be used for engineering design decisions.

Dynamic FAQ

What is the GE DS200FCGDH1BBA?

The is a GE Mark V FCGD Gate Distribution and Status Card used in compatible drive systems. It interfaces with the DSPC and processes gate-control and bridge-status information.

What does FCGD stand for?

FCGD identifies the Gate Distribution and Status Card function associated with this GE board.

What type of bridge does it support?

Technical references describe the board as an interface for a six-pulse, phase-controlled non-reversing bridge.

Is the DS200FCGDH1BBA a Mark V or Mark VI board?

The stronger part-specific references identify it as a Mark V board. Some reseller pages incorrectly label it Mark VI, so the series should be verified against the equipment documentation before procurement.

How do I verify New Surplus authenticity?

Request photographs of the actual , including the GE identification label, revision markings, connectors, and PCB condition. Confirm whether it has ever been installed, repaired, or modified.

What warranty terms should I confirm?

Confirm the warranty period, DOA coverage, return procedure, and actual testing scope. The supplier should clearly distinguish New Surplus, Refurbished, and Used condition and state exactly what testing was performed.
