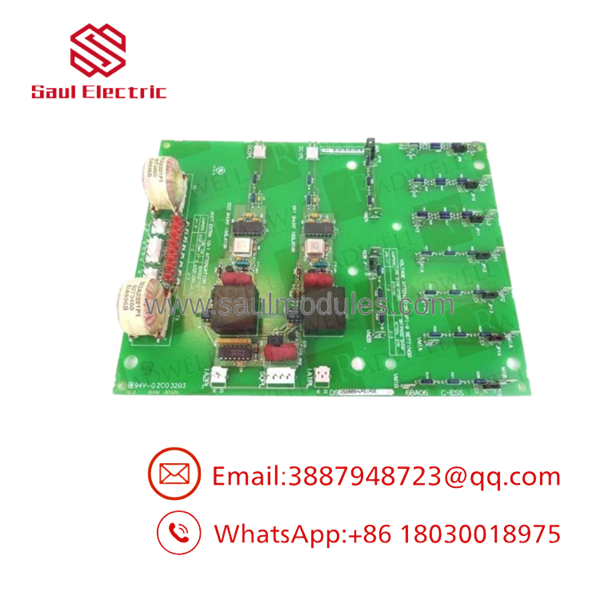

The GE DS200SHVMG1A is a specialized High Voltage Attenuator Board (SHVM) designed for GE Speedtronic Mark V turbine control systems and high-horsepower Innovation Series AC/DC drives. Installed directly on or adjacent to high-power DC buses, its primary task is to sample elevated system voltages—often reaching hundreds of volts DC—and scale them down safely into low-voltage analog signals readable by central processing cards.
To maintain system accuracy and operator safety, the SHVMG1A uses precision high-value resistor networks and high-galvanic-isolation circuitry. This design isolates raw power bus spikes, switching noise, and common-mode transients from reaching sensitive microprocessor racks, ensuring stable voltage feedback for closed-loop motor control and over-voltage protective tripping.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) |
| Part Number | DS200SHVMG1A |
| System Compatibility | Speedtronic Mark V / Innovation Drives |
| Board Function | High Voltage Monitor / Attenuator Board (SHVM) |
| Group Version | Group 1 (G1A) |
| Input Signal Handling | High-voltage DC bus inputs (up to 1000V DC nominal sensing ranges) |
| Output Signal Type | Scaled millivolt/low-voltage analog feedback |
| Isolation Rating | Galvanic isolation between power bus terminals and control logic |
| Onboard Sensing | High-precision metal film voltage-divider resistor networks |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
During high-load operation on a heavy industrial rolling mill drive, the system trips unexpectedly on a false “DC Bus Overvoltage” alarm, even though external meters show stable bus levels. Troubleshooting reveals a degraded precision resistor on the original SHVM attenuation card that caused voltage feedback to drift wildly upward. Every hour the drive stays locked out stalls the entire mill line. Swapping in a pre-inspected, fully bench-tested DS200SHVMG1A board calibrates the feedback loop immediately, getting the plant back to full production.
- Large AC/DC Industrial Drives – DC Bus Voltage Feedback – Measures main DC bus potential for precise motor speed/torque control and over-voltage protection.
- Excitation Control Systems – Field Voltage Sensing – Monitors generator field voltages to provide feedback to static excitation regulators.
- Turbine Drive Control Cabinets – Power Rail Diagnostics – Routes scaled voltage telemetry to diagnostic displays and system event loggers.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE test rigs.
- Inbound Visual Inspection: Detailed check under high-power magnification for thermal stress discoloration, cracked ceramic resistors, cold solder joints, or trace lifting.
- Precision Resistance Audit: Point-to-point high-megohm resistance verification across voltage divider networks to confirm zero tolerance drift or open-circuit degradation.
- Dielectric & Isolation Checks: Insulation resistance checks to ensure total galvanic separation between high-voltage sensing pads and low-voltage signal headers.
- Bench Signal Injection: Applying precise DC calibration voltages to input terminals and reading output millivolt scaling against OEM factory specifications.
- Anti-Static Packaging: Vacuum-sealed in anti-static ESD shielding bags with fresh desiccant packages before custom protective foam boxing.
DS200SHVMG1A
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ LETHAL VOLTAGE HAZARD: High-voltage attenuation boards connect directly to live DC power buses. Never work on or around this board without verifying zero bus voltage with a calibrated meter. Capacitors on the main drive bus can hold lethal charges long after power is shut down!
- ❗ Never Overtighten Screw Terminals: High-voltage input wires often land on screw terminals or standoff posts. Overtightening can crack the underlying fiberglass substrate or break solder pads on the precision resistor networks. Torque to spec.
- ⚠️ Inspect for Creepage Paths & Dust Accumulation: In heavy industrial environments, conductive dust buildup across high-voltage resistor banks can cause arcing or feedback drift. Always clean the mounting area and enclosure before installing the replacement board.
- ❗ Verify Jumper Placements: Check for onboard shorting jumpers that set gain scaling or channel configurations. Take a clear photo of your old board and match jumper positions on the replacement board pin-for-pin before applying control power.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the main job of the DS200SHVMG1A board?
A: It acts as a high-voltage step-down sensor. It takes high-voltage inputs from DC buses or field supplies and scales them down into safe, low-voltage signals for controller feedback.
Q: Is the DS200SHVMG1A board hot-swappable?
A: No. Absolutely not. Pulling or installing a high-voltage sensing board in an energized cabinet presents a severe arc-flash hazard and will damage sensitive control electronics. Turn off and lock out all power sources first.
Q: Does this card require firmware flashing or software programming?
A: No. The DS200SHVMG1A is a hardwired analog attenuation circuit using precision passive components and isolation amplifiers. It requires no software downloads or firmware flashing.
Q: Can I use a DS200SHVMG1A in place of a different revision like G1B?
A: In most cases, G1 group revisions are functionally interchangeable, but minor artwork or component sourcing updates may exist. Always verify resistor divider values and terminal layouts against your cabinet schematic before installation.
Q: What warranty comes with this replacement card?
A: This board comes with a full 12-month replacement warranty from the delivery date, covering all hardware functions, resistance tolerances, and signal accuracy.
