Description
Product Introduction & Engineering Value

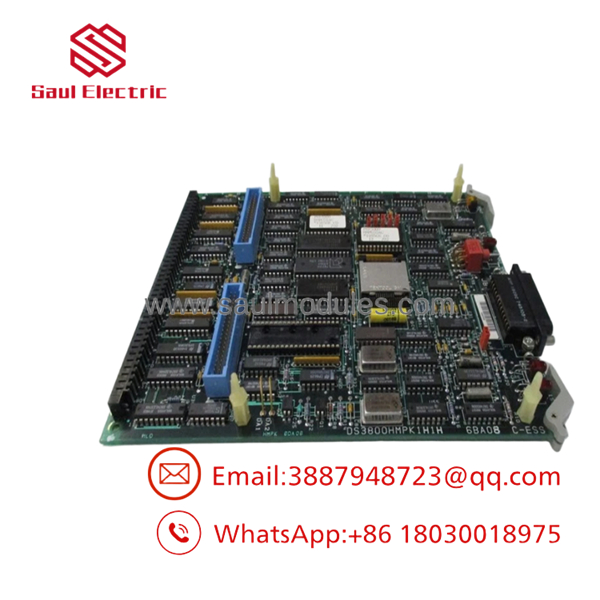

The GE DS3800HMPK1H1H is a legacy DS3800-series circuit board intended for use within compatible GE industrial control equipment. With DS3800 hardware, the complete part number is critical because visually similar boards can have different functions and configurations.
For a maintenance organization supporting an older GE installation, an exact replacement can restore the existing cabinet without forcing an immediate controls migration. The board should, however, be matched against the installed hardware and documentation before energization.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS3800HMPK1H1H |
| Product Family | DS3800 |
| Board Family | DS3800HMPK |
| Board Type | Industrial control circuit board |
| Configuration | 1H1H |
| Technology Generation | Legacy GE control electronics |
| PCB Format | Plug-in printed circuit board |
| Primary Application | GE legacy industrial control equipment |
| Replacement Method | Exact part-number and revision matching |
| Typical Stock Conditions | New surplus, refurbished, or used |
| Serviceability | Board-level inspection and repair may be available |
Technical note: Publicly available information for the exact DS3800HMPK1H1H is limited. Exact operating voltage, I/O assignments, connector pinouts, signal ranges, and other electrical characteristics should therefore be confirmed from the applicable GE documentation or the original equipment drawings. Those values should not be guessed from the part number.
Field Application & the “Trench” Experience
The difficult part of maintaining a DS3800 system is often not the physical board swap. It is identifying the correct board before the outage clock starts running.
A plausible maintenance case: an older GE control cabinet develops intermittent faults. The technician identifies DS3800HMPK1H1H on the suspect PCB and finds another DS3800 board with an almost identical layout in the spare-parts cabinet. Instead of installing it based on appearance, the technician compares the complete part number, revision markings, connector arrangement, and configuration hardware. The exact spare is then inspected and tested before installation.
That discipline avoids turning a single PCB failure into a second troubleshooting problem.
Niche application scenarios
- Legacy GE control cabinets: maintaining older industrial equipment where DS3800 hardware remains operational.
- Planned outage spare management: holding an exact-match PCB to reduce restoration time for obsolete control equipment.
- Controls life-extension projects: replacing individual circuit boards while a broader migration project is evaluated.
DS3800HMPK1H1H
Transparency SOP: QA & Testing
A proper DS3800HMPK1H1H QA process should include the following:
- Identity verification — Confirm
DS3800HMPK1H1H, board family, revision markings, and available serial information. - Physical inspection — Examine connectors, components, solder joints, PCB traces, mounting hardware, and signs of corrosion or heat damage.
- Configuration recording — Document jumper and switch positions where applicable.
- Electrical screening — Check for shorts, abnormal resistance paths, damaged components, and visible electrical stress.
- Functional testing — Use compatible GE test equipment or an appropriate test setup where available.
- Final QA record — Document the board’s condition, test status, traceability information, and warranty.
For New Surplus stock, confirm whether the board is genuinely unused inventory and whether any electrical testing or modification has been performed.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Do not order a generic DS3800HMPK.
The complete designation should be matched. The suffix can distinguish a particular hardware configuration.
⚠️ Trap #2 — Never assume visual similarity means functional equivalence.
Legacy GE boards often share mechanical characteristics. That does not establish electrical compatibility.
PRO TIP: Before removing the original board, take high-resolution photographs of the complete label, connectors, jumpers, switches, and surrounding wiring. This creates a baseline for installation and troubleshooting.
⚠️ Trap #3 — Do not skip controlled testing.
If the board’s exact function is not documented, installing an unknown-condition spare directly into production equipment creates unnecessary risk. Verify the board using the applicable system documentation and test procedure first.
Dynamic FAQ
What is the GE DS3800HMPK1H1H?
The is a GE DS3800-series industrial control printed circuit board, identified by the complete HMPK1H1H part designation.
What equipment uses the DS3800HMPK1H1H?
It is associated with legacy GE industrial control equipment. Exact equipment compatibility should be confirmed from the original cabinet documentation or GE equipment manual.
Can another DS3800HMPK board replace it?
Not automatically. Verify the complete part number, revision, electrical characteristics, connectors, and system application before using a substitute.
What should I provide when requesting a quote?
Provide the exact part number and clear photographs of the installed board. The equipment model, revision information, and application details can also help verify compatibility.
How should New Surplus condition be verified?
Request photographs of the actual unit and ask whether it has ever been installed, repaired, modified, or electrically tested. Confirm the seller’s definition of New Surplus before purchasing.
What warranty should I expect?
Warranty terms depend on the supplier and stock condition. For critical legacy equipment, confirm warranty duration, DOA coverage, return conditions, and test documentation before ordering.
