Description
Product Introduction
The GE IS200AEPAH1AFD mated with the IS210BPPBH2CAA is a specialized power distribution and attenuation assembly designed for GE Speedtronic Mark VI turbine control racks. The main IS200AEPA board acts as an active power plane regulator, taking raw input power from the system rack power supply and filtering it down to stable DC rails for low-voltage digital and analog I/O packs.
The attached IS210BPPBH2CAA processor daughtercard handles localized backplane power monitoring, over-voltage/under-voltage fault detection, and real-time status reporting back to the core controller. By isolating raw power management onto a dedicated multi-board stack, this pairing shields sensitive processor circuitry from transient surges, thermal stress, and high-frequency switching noise inherent to power generation and heavy industrial control environments.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| Main Board Model | IS200AEPAH1AFD (AEPA) |
| Daughtercard Model | IS210BPPBH2CAA (BPPB) |
| System Platform | Speedtronic Mark VI Control System |
| Assembly Configuration | Main Baseboard with Mounted Processor/Interface Daughtercard |
| Bus Interface | GE Mark VI Backplane / Rack Bus Interface |
| Primary Voltage Rails | Regulates +5V DC, ±15V DC, and +24V DC Internal Supply Lines |
| Protection Features | Onboard Fuse Protection, Transient Voltage Surge Suppression (TVSS) |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Form Factor | Double-width VME/Mark VI Rack Slot Module |
Application Scenarios & The “Trench” Experience
Picture this: It’s 1:45 AM during a severe lightning storm near a hydro station. An external surge trips the main 125V DC station battery bus, causing a momentary voltage spike across the control cabinet power supply. The primary Mark VI rack drops power instantly. While the main power supply survives, a shorted capacitor on the power distribution board fries the backplane logic rails. The entire rack stays dark, blocking turbine restart sequences and costing thousands per minute in lost power generation. Swapping out the damaged board stack with a pre-tested IS200AEPAH1AFD w/ IS210BPPBH2CAA pair restores clean, regulated power to the rack backplane, allowing the plant to re-sync to the grid within minutes instead of hours.
- Gas Turbine Speedtronic Mark VI Racks – Provides steady power filtering and rail distribution to critical overspeed and fuel valve control cards. Required to prevent transient noise from inducing false trip signals.
- Hydroelectric Power Stations – Powers local rack I/O modules operating on high-voltage DC station battery backups. Required because of its heavy-duty onboard voltage isolation and surge suppression.
- Heavy Industrial Compressor Controls – Serves as the primary backplane power interface in environments subjected to severe inductive load switching and variable frequency drive (VFD) electrical noise.

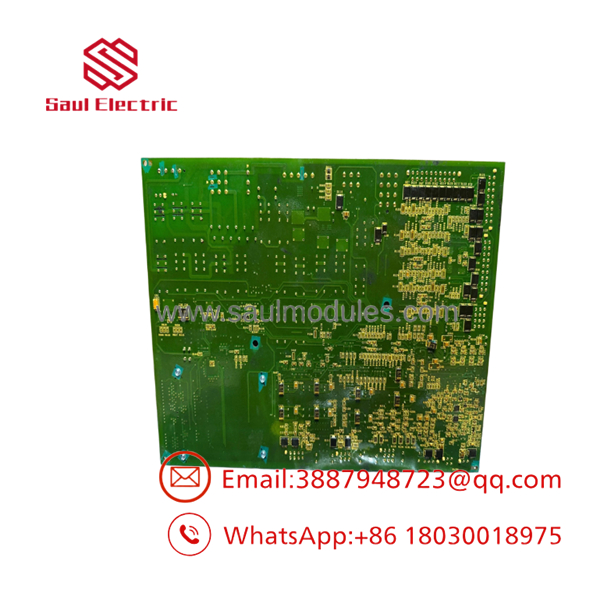

IS200AEPAH1AFD IS210BPPBH2CAA

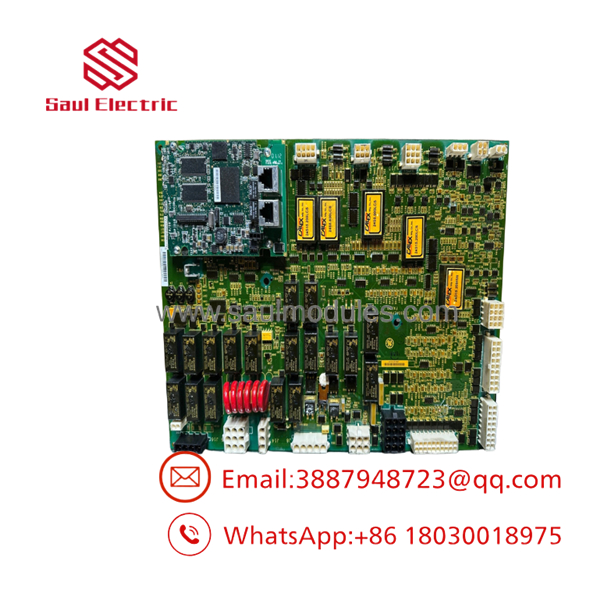

IS200AEPAH1AFD IS210BPPBH2CAA
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE Mark VI test racks before they ever go near a crate.
- Inbound & Mechanical Inspection: Detailed check under magnification for trace lifting, heat discoloration on passives, board-to-board header pin damage, and secure mechanical mounting between the AEPA baseboard and BPPB daughtercard.
- Cold Resistance & Continuity Checks: Insulation resistance testing between high-voltage power rails and logic ground paths to confirm no short circuits prior to power application.
- Live Rack Power-On Test: Assembly installed into a powered Mark VI test rack. Regulated power supplies swept across operating thresholds (18-30V DC input) to verify stable onboard voltage rail generation (+5V, ±15V, +24V).
- Diagnostic & Fault Monitoring Verification: Daughtercard (IS210BPPBH2CAA) communication checked to ensure it correctly reports power supply health, under-voltage triggers, and fault codes to the master core controller without nuisance alarms.
- Anti-Static Sealing & Safe Shipping: Cleared of static charge, vacuum-sealed in ESD shielding bags with fresh desiccant, and packed inside custom-cut high-density foam shipping boxes.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Do NOT Separate the Boards Unless Necessary!
The IS200AEPA main board and IS210BPPBH2CAA daughtercard form a factory-matched pair. The multi-pin headers connecting the two boards are delicate. If you bend or misalign a pin during reassembly, you will bridge power rails directly into logic channels, permanently destroying both boards upon power-up.
- ❗ Verify Standoff Tightness Before Slotting
Physical vibration over time or rough shipping can loosen the threaded metallic standoffs binding the daughtercard to the main board. Always verify that all nylon or metal standoffs are firmly tightened before sliding the assembly into the rack guide rails. A loose card can tilt and short against adjacent VME boards.
- ⚠️ Check Backplane Slot Keying & Alignment
Ensure the module aligns perfectly with the rack guide slots. Never force the ejector handles down. If you encounter resistance, stop and inspect the rear DIN-style backplane connectors for bent pins. Forcing a power board into a misaligned slot can ruin the entire rack backplane.
- ❗ Observe Proper ESD Grounding Protocols
Power distribution boards contain sensitive voltage-sensing micro-electronics alongside high-capacity field-effect devices. Wear a grounded wrist strap when handling this assembly. Touching the exposed trace pads or header pins with a static charge can degrade onboard voltage-divider circuits without leaving visible burn marks.
Frequently Asked Questions (FAQ for Conversion)
Q: Are the IS200AEPAH1AFD and sold as a combined unit?
A: Yes. While they are technically two separate board part numbers, the daughtercard attaches directly to the IS200AEPAH1AFD main board to function as a complete power distribution assembly. We supply them fully assembled, mated, and bench-tested together.
Q: Can I replace just the daughtercard if my main AEPA board is fine?
A: Technically yes, but we strongly advise against replacing sub-boards individually in the field unless you have surface-mount repair tools and bench-testing capabilities. Swapping the entire dual-board assembly eliminates the risk of pin damage and ensures component revision compatibility.
Q: Does this board set require software programming or firmware flashing?
A: No. The AEPA/BPPB assembly operates primarily at the hardware level for power distribution and hardware-based voltage monitoring. Once installed in the correct rack slot, the controller automatically recognizes the board pair through hardware ID loops built into the backplane layout.
Q: Can this power board assembly be hot-swapped while the rack is live?
A: No. Pulling a primary power distribution board while the rack is powered will interrupt logic supply rails to adjacent I/O cards, causing an immediate, uncontrolled crash of the entire rack and connected control loops. Power down the rack section completely before replacing this board set.
Q: Why buy Surplus / Refurbished stock over buying new from GE?
A: Speedtronic Mark VI boards are legacy components with long direct-OEM lead times and high factory prices. Buying factory-sealed or thoroughly bench-tested surplus hardware allows you to secure critical, hard-to-find replacement spares immediately to protect against costly plant downtime.
