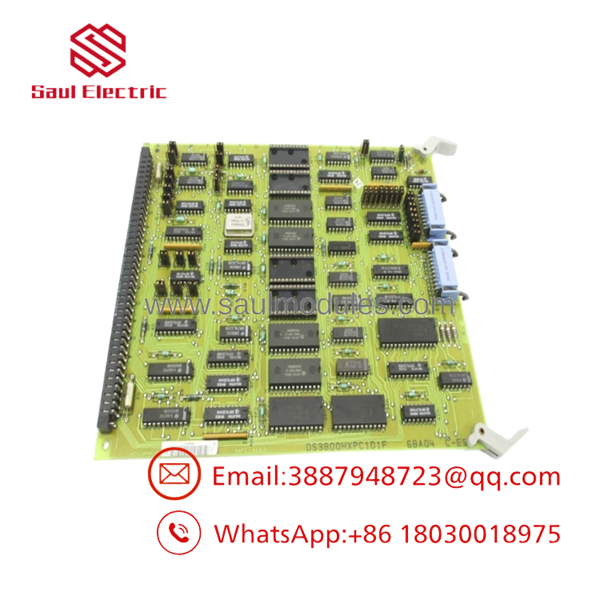

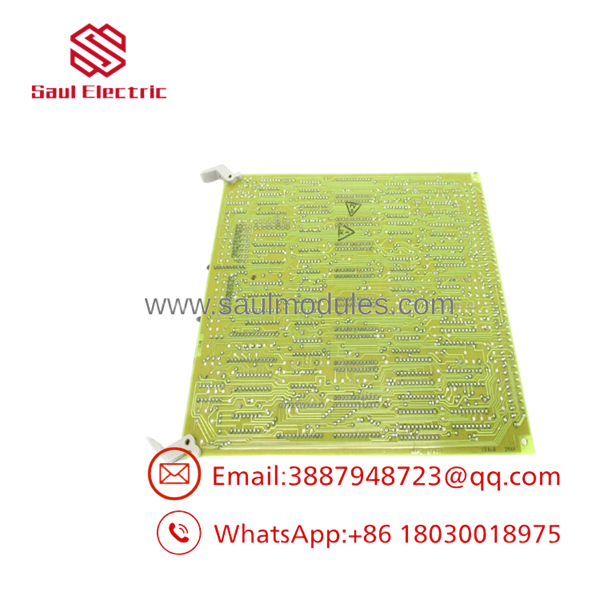

GE DS3800HXPC1D1F Speedtronic Mark IV CPU Expander Board

Description

3. Product Introduction

The GE DS3800HXPC1D1F functions as a CPU Expander Board (HXPC) within legacy GE Speedtronic Mark IV gas and steam turbine control architectures. Designed to work alongside primary processor modules in the main card cage, the HXPC expansion card handles high-speed computational routines, memory addressing, and internal bus communication.

This revised version (1D1F) features component refreshes for enhanced operational stability compared to earlier revisions. Equipped with clearly labeled connector headers, high-density gold card-edge fingers, and configurable hardware jumper networks, the DS3800HXPC1D1F ensures accurate signal routing and backplane processing synchronization.

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

During routine operations on a Mark IV-controlled steam turbine, control technicians observe sporadic bus communication timeouts on a processor core rack. Diagnostics indicate processing expansion bottlenecks caused by trace degradation on an old CPU expander board. Technicians power down the rack cage, release the extraction clips, and remove the faulty card. A bench-tested DS3800HXPC1D1F module is prepared by setting all hardware jumpers to match the original board configuration. Once inserted into the backplane slot and connected to top ribbon headers, the processing rack boots up without bus timeout faults, restoring full redundancy.

• Mark IV Rack Bus Expansion – Logic Processing Offload – Handles expanded mathematical calculations and internal system bus execution.
• Control Core Processing Synchronization – Inter-Processor Communication – Links primary microprocessors with expansion memory and peripheral I/O modules.
• Legacy Equipment Life Extension – Direct Card Swapout – Extends panel life without requiring a complete control system overhaul.

6. Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Audit: Magnified inspection for trace fractures, solder joint oxidation, edge finger wear, and header pin alignment.
2. Contact & Edge Restoration: Micro-polishing gold edge contacts and multi-pin ribbon connectors to ensure minimum electrical resistance across backplanes.
3. Power Rail Bench Verification: Supplying regulated DC bench power to confirm internal voltage drops, clock signal generation, and logic gate integrity.
4. Bus Interfacing & Communication Test: Mounting on a Mark IV backplane test rig to verify full address/data bus communication without transmission loss.
5. Anti-Static ESD Packaging: Enclosed in static-shielding ESD bags with fresh desiccant packages prior to placement in high-density foam crates.

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ POWER DOWN THE RACK BEFORE REMOVAL: Live backplane rails carry high-speed logic signals and active DC power. Hot-swapping the DS3800HXPC1D1F card can cause arc damage to edge fingers or corrupt neighbor CPU memory registers.
• ❗ VERIFY HARDWARE JUMPERS PIN-FOR-PIN: Jumper configurations dictate memory mapping and bus address parameters on CPU expander cards. Carefully match all jumper positions from your original card before powering up the replacement board.
• ⚠️ DO NOT CONFUSE HXPC WITH HXPD MODULES: The HXPC CPU expander is physically and electrically distinct from the HXPD module series. They are not directly interchangeable.
• ❗ USE FULL ESD PROTECTION: Static electricity will ruin high-density processor logic and bus interface chips. Always wear a grounded ESD wrist strap during installation.

DS3800HXPC1D1F

DS3800HXPC1D1F

8. Frequently Asked Questions (FAQ for Conversion)

Q: Is the DS3800HXPC1D1F interchangeable with earlier revisions like DS3800HXPC1C1C?

A: Yes, later functional revisions (such as 1D1F) are backward-compatible with earlier base HXPC models, provided all hardware jumper configurations are properly set.

Q: Is the DS3800HXPC1D1F interchangeable with an HXPD board series?

A: No. HXPC and HXPD boards perform different structural roles within the Mark IV card cage and are not interchangeable.

Q: Does replacing this card require downloading software from a terminal?

A: No. The HXPC card functions as a hardware expansion board. So long as hardware jumper settings match your original module, no software downloads are required.

Q: What warranty is provided with this surplus module?

A: Every unit comes backed by a full 12-month replacement warranty covering bus execution, trace continuity, and logic processing.
