Description
Product Introduction
The GE DS3800NPZA1F1C functions as a dedicated Power Regulator/Distribution Board (NPZA) within the legacy GE Speedtronic Mark IV turbine control system. Occupying a critical slot within the main card chassis, it conditions raw incoming power supply rails and feeds stable DC voltages directly to adjacent processing, memory, and I/O cards across the backplane bus.
Constructed to endure demanding industrial environments, the NPZA1F1C features onboard transient filtering, heavy-duty voltage regulation stages, and passive overload protection. This hardware layer insulates sensitive digital logic chips from line ripple, noise, and voltage drops caused by inductive field device switching.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) |
| Part Number | DS3800NPZA1F1C |
| System Compatibility | Speedtronic Mark IV Control Systems |
| Board Acronym | NPZA (Power Regulator / Distribution Board) |
| Revision Code | 1F1C |
| Power Inputs | Unregulated DC power rails from main system power supply |
| Power Outputs | Regulated low-voltage DC rails for backplane distribution |
| Backplane Interface | Dual gold-plated card-edge finger connectors |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
During a hot restart of a utility gas turbine, the Mark IV central rack generates sporadic CPU bus fault alarms, taking the unit offline. Diagnostics reveal that raw power supply ripple is passing directly through to the logic bus due to degraded filtering capacitors on the original NPZA board. The fluctuating voltage rails cause core processor cards to reset randomly. Swapping in a fully bench-tested DS3800NPZA1F1C board stabilizes the backplane power rails immediately, clearing the bus faults and allowing the turbine to sync to the grid.
- Gas & Steam Turbine Controls – Backplane Power Stabilization – Supplies clean DC voltage to core processor and memory cards across the central rack.
- Industrial Cogeneration Plants – System Noise Suppression – Filters out electrical noise originating from field actuators and power switching gear.
- Excitation & Drive Cabinets – Logic Rail Conditioning – Protects auxiliary logic cards against voltage drops during heavy field load transitions.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE Mark IV test racks.
- Inbound Visual Inspection: Microscopic trace analysis checking for thermal stress, bulging electrolytic capacitors, burnt resistors, or cracked solder joints.
- Gold Finger Inspection: Cleaning and verifying the integrity of the rear card-edge contacts to guarantee low-resistance power distribution across the backplane.
- Power Rail Bench Testing: Applying raw DC input voltages to verify onboard regulators, step-down stages, and filtering efficiency under load.
- Live Rack Simulation: Insertion into an energized Mark IV test chassis to confirm stable voltage delivery to adjacent processor cards under live conditions.
- Anti-Static Packaging: Sealed in thick static-shielding ESD bags with fresh desiccant packages prior to protective foam boxing.

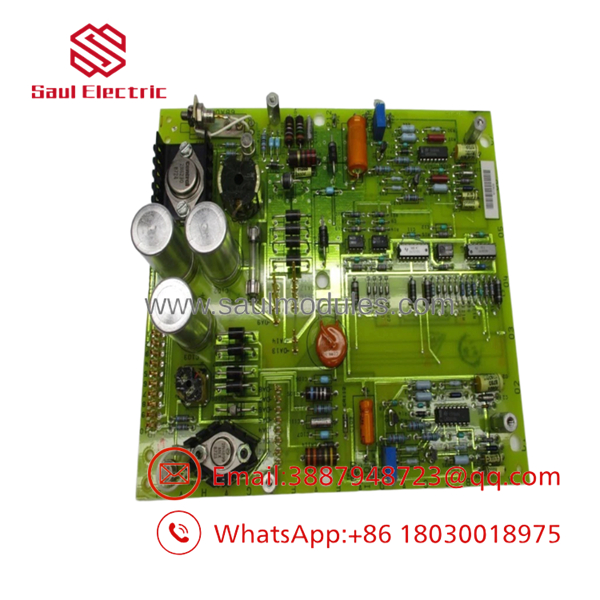

DS3800NPZA1F1C
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ NEVER PULL UNDER POWER: This is a power distribution card. Pulling or inserting the NPZA card while the backplane is energized will cause severe arcing across the edge contacts, likely destroying both the card and adjacent processor boards. Always isolate cabinet power first.
- ❗ Allow Capacitors to Discharge: Large filter capacitors on power boards retain electrical charges after cabinet power is turned off. Wait at least 5 minutes after de-energizing the system and check residual voltage before removing the card.
- ⚠️ Inspect the Card-Edge Socket: If your previous NPZA board failed due to a short circuit, check the female connector slot in the backplane frame for carbon deposits or melted pins before sliding in the new card.
- ❗ Match Hardware Jumpers: To be honest, misconfigured voltage-select jumpers are a common oversight. Take a sharp photograph of all jumper blocks on your failed card and set the replacement board identically before applying power.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the primary role of the DS3800NPZA1F1C card in a Mark IV system?
A: It conditions, regulates, and distributes clean DC power rails to adjacent processing, memory, and communication boards across the backplane.
Q: Does this card require any software configuration or firmware flashing?
A: No. The DS3800NPZA1F1C is a hardwired power distribution and regulation card. It contains no microcontrollers or flash memory and requires zero programming upon installation.
Q: Can I use a 1F1C revision to replace an earlier 1A1A revision?
A: Yes, in most cases. The 1F1C revision represents an updated hardware artwork and component baseline that maintains backward compatibility for Mark IV NPZA applications. Always verify jumper configurations against your cabinet drawings.
Q: Why buy surplus Mark IV boards instead of upgrading the entire system?
A: Full system migrations require extensive engineering, rewiring, and weeks of scheduled plant shutdown. Swapping an NPZA board takes under an hour and costs a fraction of a full migration project.
Q: What warranty coverage is included with this replacement module?
A: Every unit comes backed by a full 12-month replacement warranty from the date of shipment, covering all onboard power regulation paths, filtering components, and hardware integrity.
