Description
Product Introduction

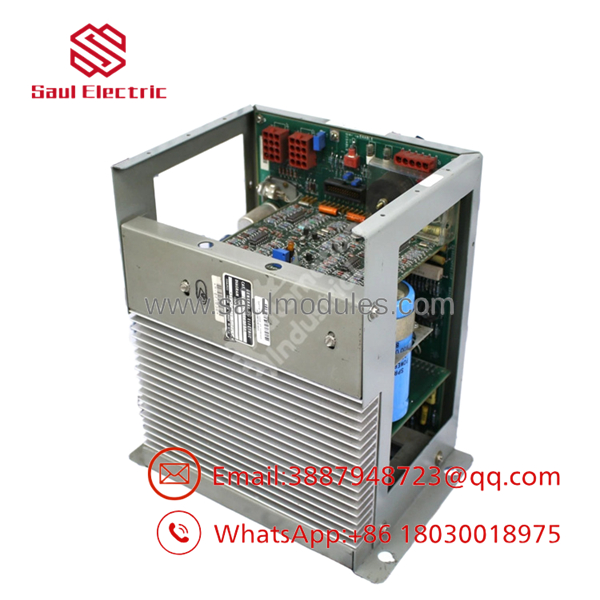

The GE DS3820PSCB1B1A is a heavy-duty power supply board designed for GE Speedtronic Mark IV turbine control systems. Located within the central power distribution rack, it steps down and regulates incoming primary station power into clean, isolated DC voltage buses (+5V, \pm 15V, +24V DC) required to run central CPU cards, signal conditioners, and I/O interface modules.
Turbine technicians and power plant engineers count on the PSCB module as the operational lifeline of the entire Mark IV panel. Because sensitive microprocessor circuits cannot tolerate line ripple or voltage sags, the DS3820PSCB board uses robust filtering inductors and fast-acting power regulation circuitry to buffer internal backplane buses against external grid transients and electrical noise.
Key Technical Specifications
| Parameter | Specification / Value |
| Part Number | DS3820PSCB1B1A |
| System Compatibility | GE Speedtronic Mark IV Control Systems |
| Board Type | Power Supply Control Board (PSCB) |
| Input Voltage Range | Nominal 125V DC station battery / 115V AC auxiliary source |
| Output Bus Rails | +5V DC (Logic), \pm 15V DC (Analog), +24V DC (Relay/Field) |
| Protection Circuitry | Onboard over-voltage crowbar protection & current-limiting fuses |
| Cooling & Thermal | Mounted to heavy extruded aluminum heatsink frame for passive convection cooling |
| Interconnects | Heavy-duty power terminal connectors & edge card backplane interface |
| Revision Level | Group 1B, Assembly 1A (1B1A) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
Application Scenarios & The “Trench” Experience
It’s 2:45 AM during a hot summer peak, and a 150 MW gas turbine unit suddenly trip-locks with a complete control rack reset. Diagnostic LED status lights on the main processor cards are entirely dark. The station battery supply is healthy at 125V DC, but an internal electrolytic filter capacitor on an aging PSCB power supply board shorted out due to long-term thermal fatigue, collapsing the internal +5V logic rail. Every minute the unit remains down costs thousands in lost generation capacity. Swapping in a bench-verified DS3820PSCB1B1A module, verifying fuse ratings, and re-energizing the rack restores backplane power instantly, allowing a clean turbine restart.
- Base-Load Utilities – GE Frame 6/7/9 Gas Turbines – Providing primary regulated DC power rails for triple-modular redundant (TMR) control racks.
- Combined-Cycle Steam Turbines – Power Distribution Racks – Delivering ripple-free DC power to analog governor and valve driver boards.
- Refinery & Petrochemical Works – Turbine-Driven Compressors – Isolating sensitive rack logic from high-noise industrial station power buses.
Field Case Study
A co-generation facility experienced random processor reboot cycles whenever large auxiliary motors started across the plant grid. Troubleshooting identified voltage sag on the +5V logic bus caused by degraded switching transistors on the original power supply board. We overnighted a fully tested DS3820PSCB1B1A replacement module. The lead electrician isolated the rack power feed, racked out the failed module, installed the replacement, and confirmed rock-solid voltage regulation—preventing an estimated $105,000 in unscheduled downtime losses.
DS3820PSCB1B1A
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual live GE Mark IV test benches under load. Here is our exact internal verification workflow before any DS3820PSCB1B1A leaves our facility:
- Inbound Mechanical & Thermal Audit: Inspect the aluminum heatsink frame for mechanical distortion, check power terminal threads, inspect high-power resistors and transformers for thermal discoloration, and verify capacitor tops for bulging.
- Cold Impedance & Short Test: Measure resistance across all output power rails (+5V, \pm 15V, +24V) relative to ground to ensure zero internal short circuits before applying input power.
- Full-Load Power Burn-In: Mount the power supply in a live Mark IV rack chassis and connect calibrated electronic load banks to simulate full cabinet current draw.
- Voltage Regulation & Ripple Test: Measure output bus voltages under variable load conditions using a digital multimeter and an oscilloscope to confirm output voltage stays within \pm 1\% tolerance with < 20mV peak-to-peak AC ripple.
- Revision Code Audit: Log exact
1B1Arevision markings on the final QA release documentation. - ESD & Heavy Packaging: Enclose inside anti-static shielding bags with fresh desiccant prior to packing in custom heavy-duty foam crates to protect the heavy heatsink assembly during transport.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Discharge DC Bus Capacitors Before Handling!
The large filter capacitors on the DS3820PSCB board retain high-voltage DC charges (> 100V DC) long after primary station power is disconnected. Always wait at least 5 minutes after de-energizing the cabinet, and verify zero voltage across the main power terminals with a voltmeter before pulling the unit!
❗ 2. Verify Airflow and Heatsink Clearance
The PSCB module generates significant heat under full rack load and relies on unblocked convection airflow across its external aluminum cooling fins. Ensure cabinet cooling fans are operational and that no wiring harnesses are draped over the heatsink assembly, which can cause thermal shutdown.
⚠️ 3. Check Downstream Rack Shorts Before Powering On a New Board
If a previous PSCB board blew its main fuses or shorted out, always check downstream CPU and I/O cards in the rack for short circuits before installing the new DS3820PSCB1B1A. Powering a fresh supply into a shorted backplane will instantly blow the internal protection fuses on the replacement board!
Frequently Asked Questions (FAQ for Conversion)
A: No. Removing a power supply board while the Mark IV system is online immediately cuts power to connected CPU and I/O cards, causing an instant, ungraceful emergency trip of the turbine. Always execute full LOTO procedures on incoming power before swapping this module.
Q: What does the “1B1A” suffix mean?
A: In GE Speedtronic part numbers, 1B1A designates the exact engineering revision level. The 1B indicates the printed circuit board artwork revision, while 1A refers to the specific installed bill-of-materials (BOM) component revision.
Q: What should I check if the diagnostic power LEDs fail to illuminate after installation?
A: First verify that incoming station power (125V DC or 115V AC) is present at the input terminal block. If input voltage is present, check the board’s internal primary input fuse for continuity using a multimeter.
Q: Is this unit new or refurbished, and what warranty is included?
A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.
Q: Why buy surplus instead of ordering directly through GE OEM networks?
A: Legacy Speedtronic Mark IV power supply components have been discontinued by the manufacturer for years. Sourcing New Surplus from our available stock eliminates multi-month factory lead times, avoids exorbitant rush fees, and provides an immediate drop-in replacement to keep your plant online.
