GE F650NFLF2G5HIP6E Multilin F650 Feeder Protection Relay

Description

Product Introduction

The GE F650NFLF2G5HIP6E is a member of the Multilin F650 family of numerical feeder protection relays. It combines feeder protection, bay control, power metering, fault recording, and SCADA communications in a single platform for utility substations, industrial power systems, renewable energy facilities, and critical electrical distribution networks.

In our field experience, the F650 replaces several discrete protection devices without increasing commissioning complexity. The real advantage isn’t simply the number of protection functions. It’s the ability to integrate protection, control, disturbance recording, and IEC 61850 communications into one relay. Verify the ordered configuration code before installation because communication options, CT ratings, power supply, and I/O vary by catalog number.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s one that’s expensive.

A 33 kV feeder trips during a thunderstorm. The breaker opens exactly as it should, but nobody knows whether the fault originated on the overhead line, inside the substation, or from an external switching event. Without disturbance records, crews spend hours patrolling kilometers of transmission line before discovering a damaged cable termination only a few hundred feet from the breaker.

That’s where the F650 earns its place.

Typical applications include:

• Utility Substations — Primary feeder protection with directional overcurrent, breaker failure, and auto-reclose.
• Industrial Power Distribution — Protection of incoming feeders supplying refineries, steel mills, and chemical plants.
• Renewable Energy Plants — Collection feeder protection for wind and solar substations.
• Mining Operations — Medium-voltage feeder management for crushers, conveyors, and processing plants.
• Commercial Campuses — Distribution automation integrated with SCADA and energy management systems.

Field Replacement Example

A manufacturing facility experienced repeated feeder trips on a 13.8 kV incoming circuit. Breaker testing showed no mechanical problems, and CT ratios were verified. Engineers downloaded the oscillography from the existing F650 and identified intermittent directional ground faults during rain events. After replacing a deteriorated cable termination and installing a verified F650NFLF2G5HIP6E with the original settings restored, the feeder remained stable through the following storm season.

Transparency SOP: Quality Assurance & Testing

We don’t just ship relays; we test them on actual protection test equipment before shipment.

• Inbound Inspection
  • Verify complete catalog number and option code.
  • Inspect display, keypad, terminals, and communication ports.
  • Confirm factory labels and serial numbers.
• Live Functional Testing
  • Apply auxiliary control power.
  • Verify normal startup.
  • Test keypad, LCD, LEDs, and self-diagnostics.
  • Confirm Ethernet and serial communication.
• Protection Verification
  • Inject simulated CT and VT signals.
  • Verify pickup values.
  • Confirm trip outputs and event recording.
• Firmware Verification
  • Record firmware revision.
  • Verify communication options.
  • Document hardware configuration.
• Final QC & Anti-static Packaging
  • Final operational inspection.
  • Anti-static protection.
  • Shock-resistant industrial packaging.
  • Complete serial-number traceability.

The Veteran’s Tech Trap Guide

⚠️ Never assume another F650 uses identical settings.

Two relays may look identical while having different CT ratios, breaker logic, communication options, and protection settings. Always upload and archive the original settings before removing the relay.

❗ Verify the communication protocol before commissioning.

The supports multiple protocols including IEC 61850, DNP3, Modbus, and IEC 60870-5-103/104. Selecting the wrong protocol or Ethernet configuration can leave the relay healthy while completely invisible to SCADA.

⚠️ Confirm CT polarity before energizing the feeder.

Directional protection depends on correct current transformer polarity. One reversed CT can produce false directional elements and nuisance trips during system faults.

❗ Test the breaker after relay replacement.

A successful secondary injection test doesn’t prove the breaker trips correctly. Perform a complete trip circuit verification before returning the feeder to service. Protection is only as reliable as the breaker it controls.

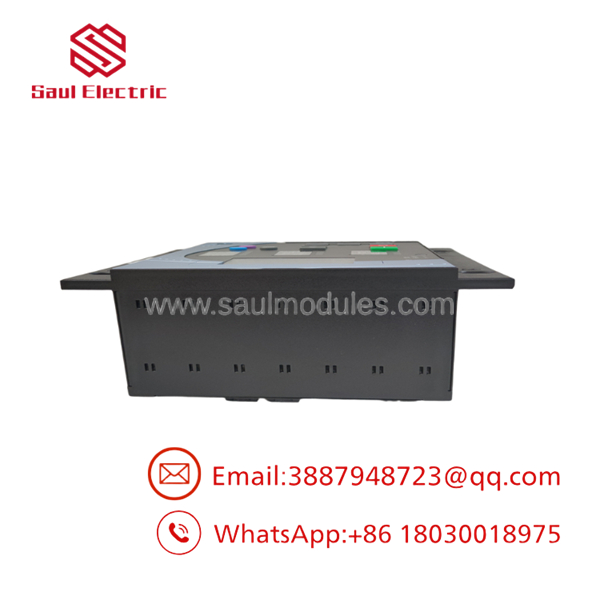

F650NFLF2G5HIP6E

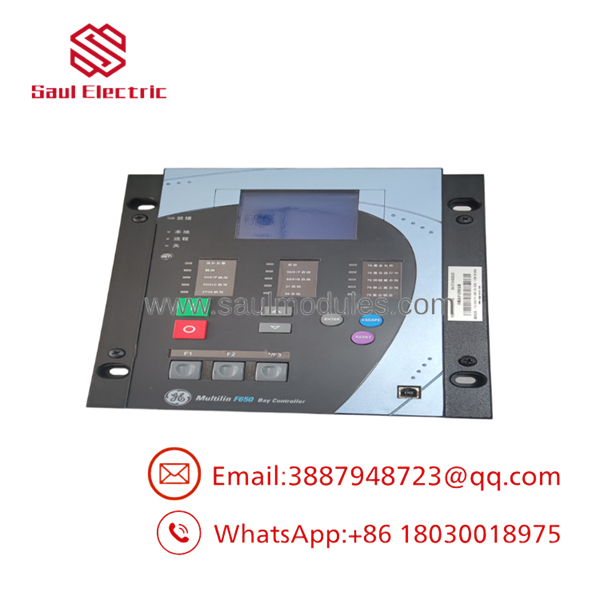

F650NFLF2G5HIP6E

Frequently Asked Questions (FAQ)

Q1. What is the primary function of the F650NFLF2G5HIP6E?

It provides feeder protection, breaker control, automation, power metering, event recording, and SCADA communications for medium-voltage distribution systems.

Q2. Which communication protocols are supported?

Depending on the installed hardware configuration, the relay supports IEC 61850 Edition 2, DNP3, Modbus RTU, Modbus TCP/IP, and IEC 60870-5-103/104, allowing integration with modern SCADA and substation automation systems.

Q3. Does the relay support auto-reclosing?

Yes. The includes an integrated four-shot autorecloser with synchronism check and configurable reclosing logic for overhead feeder applications.

Q4. Can this relay replace older electromechanical feeder relays?

Yes, in many applications. However, protection coordination, CT/VT ratios, breaker interface wiring, and communication settings must be reviewed before commissioning. Never assume a direct one-for-one replacement without engineering verification.

Q5. Why do replacement projects sometimes fail?

The relay itself is rarely the problem. Most commissioning issues involve incorrect protection settings, mismatched CT polarity, communication configuration, or incomplete transfer of the original settings database.

Q6. Is this relay suitable for IEC 61850 substations?

Yes. Many configurations include IEC 61850 Edition 2 support, making the relay suitable for modern digital substations while maintaining compatibility with legacy protocols where required.

Q7. What warranty is typically provided?

Most industrial automation suppliers provide a 12-month warranty on functionally tested new surplus or professionally refurbished relays. Before energizing the feeder, verify the firmware revision, option code, protection settings, CT/VT ratios, communication protocol, and breaker trip logic against the approved protection study.
