Product Introduction & Engineering Value
Troubleshooting intermittent field output faults shouldn’t require carrying a multimeter to every junction box. The GE VersaMax IC200MDL740E features channel-level LED indicators and built-in electronic short-circuit protection to make solenoid and indicator driver maintenance effortless. Configured with 16 high-side (sourcing) transistor outputs, it drops into any standard VersaMax carrier base to drive 24 VDC industrial field loads.
Drawing a minimal 45 mA from the 5 VDC backplane bus, this module preserves system power budget for high-draw analog or communication cards on the same rack. Revision E includes updated output driver silicon, providing enhanced thermal handling during heavy inductive load switching like hydraulic valves and large interposing relays.
Technical Specifications
| Parameter | Specification |
| Output Channels | 16 points (1 group of 16 or 2 groups of 8 depending on carrier wiring) |
| Output Type / Logic | Discrete Transistor / Positive Logic (Sourcing) |
| Operating Voltage Range | 10.2 to 30 VDC (24 VDC nominal external supply) |
| Output Current Capacity | 0.5 Amps per point max @ 30°C (4.0 Amps max per 8-point group) |
| Response Time | 0.5 ms ON / 0.5 ms OFF maximum |
| Inrush Current | 2.0 Amps for 10 ms maximum |
| Backplane Current Consumption | 45 mA @ 5 VDC nominal |
| Off-State Leakage Current | 0.5 mA maximum |
| Isolation Rating | 250 VAC continuous / 1500 VAC for 1 minute (Field-to-Logic) |
| Protection | Electronic short-circuit & thermal overload protection |
Field Application & The “Trench” Experience
During an overnight shift at a bottling facility, a shorted pneumatic valve coil repeatedly tripped an older output module’s fuse on a main packaging conveyor, taking down two upstream labeling lines. We replaced the card with an IC200MDL740E. When power was restored, the card’s electronic short-circuit protection immediately isolated the damaged valve channel without dropping power to the remaining 15 active actuators—allowing operators to keep the main conveyor running while technicians repaired the faulty solenoid cable.
Niche Application Scenarios:
- Automated Material Handling: Driving 24 VDC diverter gates, stop-pins, and photo-eye alignment solenoids on high-speed sorting conveyors.
- Batch Chemical Processing: Actuating 24 VDC pilot solenoid valves connected to pneumatic process actuators.
- Control Panel Pilot Indication: Operating high-density LED pushbuttons and visual alarm stack lights across large operator consoles.

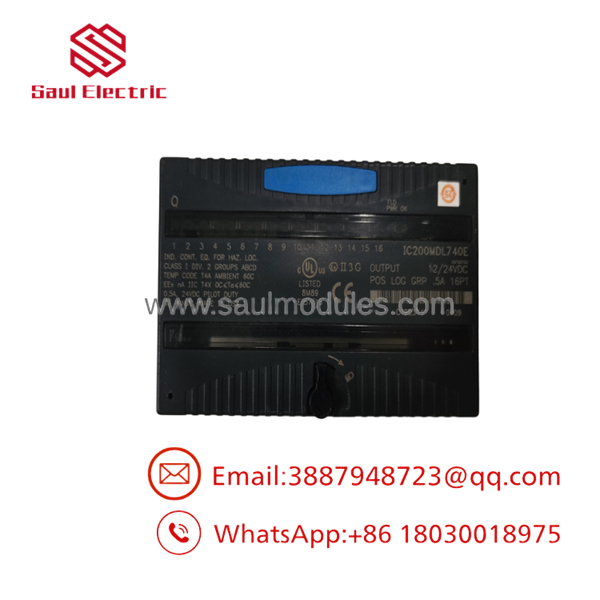

- IC200MDL740E

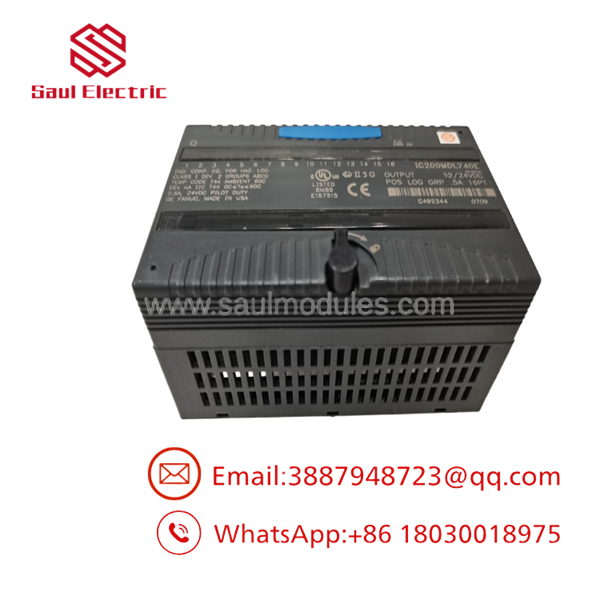

- IC200MDL740E
Transparency SOP: QA & Testing
To ensure every New Surplus and Remanufactured IC200MDL740E delivers reliable performance in critical output control loops, our technicians perform the following multi-step inspection:
- Backplane & Board Inspection: Checking Revision E board markings, edge connector gold tabs, and carrier alignment guides for physical wear.
- Logic Power Rail Test: Verifying logic-side current consumption stays steady at ~45 mA @ 5 VDC on our VersaMax test rack.
- 16-Channel Load Bank Testing: Connecting all 16 channels to a 0.5A resistive load bank; toggling outputs rapidly in Machine Edition to verify clean switching.
- Thermal & Short-Circuit Verification: Inducing a temporary direct short on active output channels to confirm instant electronic driver shutdown without backplane failure.
- Field Power Loss Diagnostic Test: Removing external 24 VDC field supply while checking that the CPU properly logs “Loss of Field Power” diagnostics.
The Veteran’s Tech Trap Guide
- ⚠️ Sourcing vs. Sinking Output Circuitry: The IC200MDL740E is a sourcing (PNP) module—it switches positive 24 VDC to your load. If your field equipment (e.g., Japanese-spec machinery or certain safety relays) requires a sinking (NPN) module that switches common ground, you must use an IC200MDL741 instead!
- PRO TIP: Total Group Current Limit! Although each point is rated for 0.5A, the total continuous current for an 8-point group cannot exceed 4.0 Amps. Operating all 8 points at max load simultaneously in high ambient temperatures will trigger the internal thermal shutdown.
- ⚠️ Flyback Diodes on Inductive Loads: While the card features internal output protection, switching unsuppressed inductive loads (large magnetic brakes or heavy contactors) can generate severe voltage spikes. Always wire a freewheeling flyback diode across inductive field coils to extend module lifespan.
Dynamic FAQ
Q: What does the “E” suffix mean on the part number?
A: The “E” indicates Revision E, which incorporates factory component updates and refined output driver protection circuitry. It is 100% drop-in compatible with earlier hardware revisions (A through D).
Q: Does this module require an external 24 VDC power supply to switch loads?
A: Yes. The 5 VDC backplane powers only the internal logic. An external 24 VDC field power supply must be wired to the carrier base to drive the sourcing output transistors.
Q: What carriers are compatible with the ?
A: It works with standard VersaMax I/O carriers, including box-style screw terminal carriers (IC200CHS002 / IC200CHS022) and spring-style carriers (IC200CHS005 / IC200CHS025).
Q: Are these units tested and covered by a warranty?
A: Yes. Every unit is 100% bench-tested under full electrical load and backed by a comprehensive 1-Year replacement warranty.
