Description
Product Introduction
The GE Fanuc IC200MDL742 is a VersaMax discrete output module used to switch field devices from a PLC. It provides 32 positive-logic 24VDC output points, so it is a common fit for lamps, relays, contactors, and other on/off loads in older GE automation systems.
Its real value is density with protection. The module is built with ESCP and grouped outputs, which makes it a practical replacement in compact legacy racks where you need a lot of outputs without reworking the cabinet.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IC200MDL742 |
| Manufacturer | GE Fanuc / Emerson |
| Series | VersaMax |
| Module Type | Discrete output module |
| Output Points | 32 |
| Logic Type | Positive logic |
| Output Voltage | 18 to 30 VDC, nominal 24 VDC |
| Output Current | 0.5 A per point |
| Grouping | 2 groups of 16 |
| Response Time | 0.5 ms ON, 0.5 ms OFF |
| Power Consumption | 150 mA from 5 V backplane |
| Protection | ESCP, short circuit and overcurrent protection |
| Application | PLC discrete load switching |
Application Scenarios & the “Trench” Experience
A machine goes dark because one output card starts dropping commands. The PLC logic is still alive, but coils and indicators are not. That is the kind of failure that turns a routine swap into a late-night hunt through the panel.
- Manufacturing – Solenoid and relay control – Needed because the PLC must drive many discrete loads at 24VDC.
- Packaging – Indicator lamps and interlocks – Needed when a dense output card feeds multiple machine functions.
- Process plants – Contactor and valve command signals – Needed for grouped positive-logic switching with protection.
- Utilities – Legacy control cabinet retrofit – Needed when the old VersaMax rack must stay in service.
- Machine skids – Compact output expansion – Needed when cabinet space is limited and output density matters.
A realistic replacement case: a production skid lost half of its output commands after a field short took out one section of the module. The operators saw failed actuators, not a bad card. A verified IC200MDL742 replacement restored the group outputs, saved the rack, and avoided a larger panel rebuild.

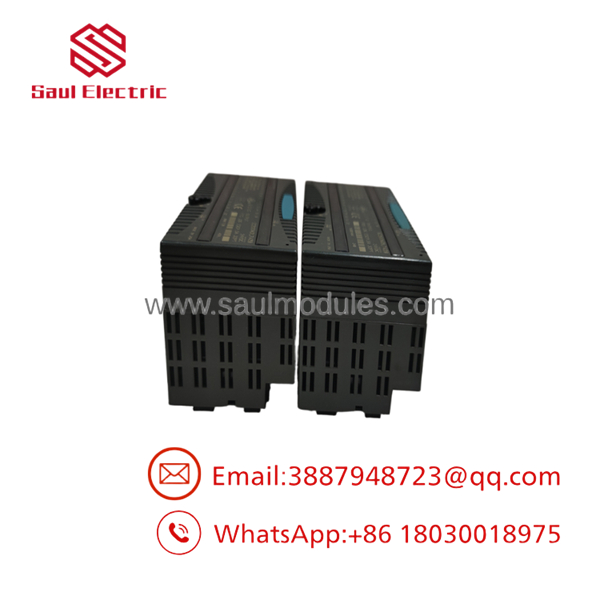

- IC200MDL742

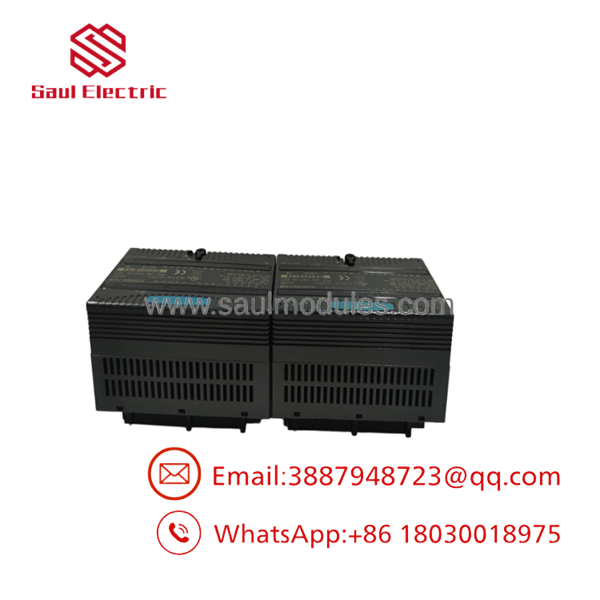

- IC200MDL742
Transparency SOP: Quality Assurance & Testing
We do not just ship boxes; we test them on actual GE Fanuc racks.
- Inbound Inspection: Check part number, connector integrity, label authenticity, and any visible heat or arc damage.
- Live Rig Testing: Power the module on a matching VersaMax setup and verify output switching, LEDs, and diagnostics.
- Electrical Parameter Checks: Confirm output current behavior, voltage drop, and grouped load response.
- Firmware Verification: Record revision data when available and compare it to compatibility expectations.
- Final QC & Anti-static Packaging: Release only after the module passes functional checks, then pack it in ESD-safe material.
The Veteran’s Tech Trap Guide
- ⚠️ Do not mix up output groups. A short on one group can mislead you into thinking the whole card is dead.
- ❗ Check the load current per point. 0.5 A sounds decent until someone hangs too much on one channel.
- ⚠️ Verify positive logic before installation. Wrong field wiring will make the system behave backward.
- ❗ Don’t ignore the backplane supply. A healthy output stage still needs the right rack power.
Frequently Asked Questions
Q: Is the IC200MDL742 hot-swappable?
A: No. Treat it as a powered-down replacement unless your exact rack documentation explicitly allows live insertion.
Q: What kind of outputs does it have?
A: 32 positive-logic 24VDC outputs, arranged in two groups of 16.
Q: What is the current rating per point?
A: 0.5 A per point.
Q: What protection does it include?
A: ESCP plus overload and short-circuit protection.
Q: Why is this cheaper than direct OEM stock?
A: Because it usually comes from surplus or secondary-market inventory, not a fresh factory build. Lower cost only makes sense if the part is properly tested.
Q: Is it fake or refurbished?
A: You should not assume either way. The honest answer is to verify labels, revision, condition, and rack test results.
Q: What warranty is reasonable?
A: Twelve months is common for tested industrial surplus, but the test record matters more than the marketing claim.
