GE HE693RTM705 Series 90-30 Modbus RTU Master

Description

Product Introduction & Engineering Value

When legacy field instrumentation or remote terminal units need direct integration into a Series 90-30 rack without expensive protocol gateways, the Horner HE693RTM705 delivers native Modbus/RTU master capability. It offloads serial polling overhead entirely from the main CPU, managing multi-drop RS-485 networks or dedicated RS-232 radio links directly through 90-30 reference tables.

Providing two independently configurable communication channels, the module allows engineers to handle simultaneous dial-in/dial-out, radio telemetry, or standard RS-485 multi-drop topologies. By mapping up to 250-byte Modbus payloads directly to internal %R, %M, or %AI registers, it keeps ladder logic lean while maintaining steady data throughput across distributed field hardware.

Technical Specifications

Field Application & The “Trench” Experience

We were called into a remote water treatment plant running an old CPU351 setup. A newly added skid contained three third-party flow meters communicating solely via Modbus RTU, and the client needed their totalizer data logged in the central 90-30 PLC. Instead of installing an Ethernet bridge, we slotted an HE693RTM705 into slot 4 of the main baseplate, hooked up the Port 2 RS-485 pair to the meters, and mapped the Modbus registers into the PLC’s %R registers within an hour.

Niche Application Scenarios:

1. Remote Tank Farm Telemetry: Polling field level transmitters over licensed 900 MHz radio modems via RS-232 on Channel 1.
2. Substation Power Metering: Collecting multi-drop RS-485 power data from digital protective relays into CPU %AI tables.
3. Gas Compressor Monitoring: Interfacing engine controllers across long multidrop serial runs without loading the PLC execution loop.

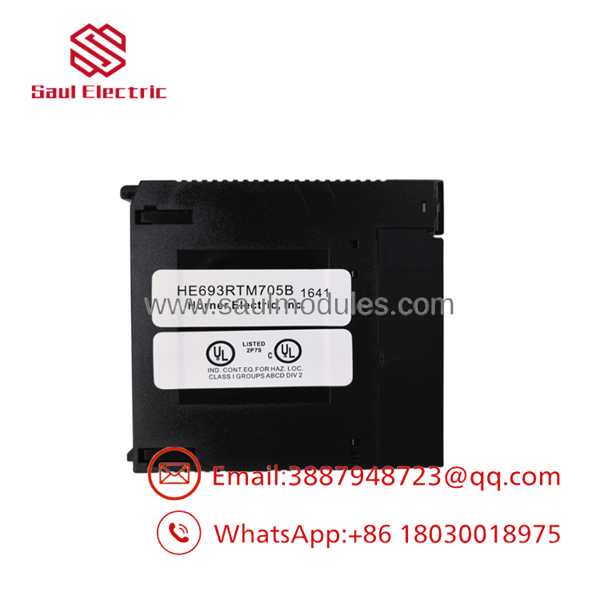

HE693RTM705

Transparency SOP: QA & Testing

To ensure every New Surplus or Remanufactured HE693RTM705 unit handles high-traffic serial polling reliably, our technicians execute the following bench test sequence:

1. Physical Integrity & Bus Pin Audit: Inspect backplane connector pins for micro-fractures, verify solder joints, and clear dust from internal logic boards.
2. Backplane Current Verification: Test 5 VDC power rails under load to confirm backplane draw remains strictly within the 425 mA specification.
3. Dual-Port Communication Loopback: Wire Port 1 (RS-232) and Port 2 (RS-485) to dedicated Modbus slave simulators.
4. Stress Polling Run: Execute continuously looped Read/Write Coil and Register commands (250-byte blocks) for 4 hours while checking for CRC errors or dropped packets.
5. Rack Compatibility Check: Confirm the module initiates proper “Module OK” handshake on CPU331, CPU351, and CPU364 test racks.

The Veteran’s Tech Trap Guide

• ⚠️ Rack Location Fault: Do not install this module in an expansion or remote baseplate. It requires direct bus access to the main CPU rack to process reference data tables. Placing it in an expansion rack causes the module to fail hardware initialization.
• PRO TIP: Check your CPU model before ordering! The HE693RTM705 requires a CPU331 or larger (e.g., CPU341, CPU351, CPU364). Lower-tier embedded CPUs like the CPU311 or CPU323 lack the backplane throughput to support this card.
• ⚠️ Termination Resistors on Port 2: On RS-485 multi-drop runs, forgetting the 120 Ω termination resistors at both physical ends of the line is the #1 cause of intermittent Modbus timeout errors (EOM/CRC mismatches).

Dynamic FAQ

Q: Can the HE693RTM705 act as a Modbus RTU Slave to a master SCADA system?

A: No. The is specifically engineered as a Modbus Master module. If you need the Series 90-30 to operate as a serial slave, standard CMM modules (like the IC693CMM321) or serial CPU ports should be used instead.

Q: What happens if a slave device on the network stops responding?

A: The module manages response timeouts internally without halting the CPU. Timeout status and error codes are reported back to designated error registers in the 90-30 PLC memory so ladder logic can flag the offline node.

Q: Does the module require an external 24 VDC power supply?

A: No. All logic and port processing power is drawn directly from the 5 VDC Series 90-30 backplane supply (consuming ~425 mA).

Q: Are these units tested and backed by a warranty?

A: Yes. Every module is fully bench-tested, restored to factory defaults, and covered by a comprehensive 1-Year replacement warranty.
