GE Fanuc IC200UEX626 VersaMax Micro Analog Expansion Unit

Description

Product Introduction

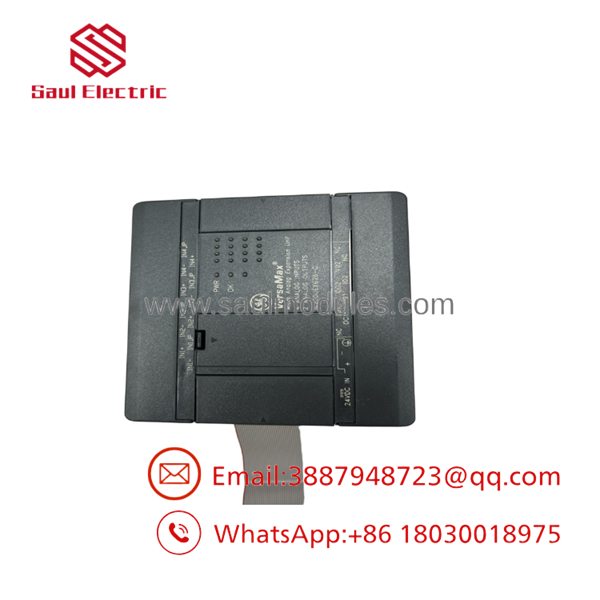

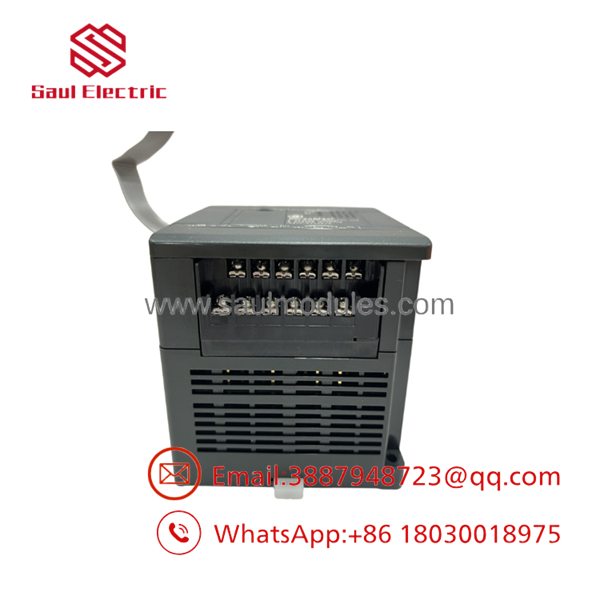

The GE Fanuc IC200UEX626 is a VersaMax Micro analog expansion unit used to add analog I/O to a compact controller. It provides four analog inputs and two analog outputs, which makes it a good fit for small machines that need a little process control without moving to a full rack system.

The practical value is straightforward. You get analog capability in the same small footprint class as the Micro family, with 24VDC power and support for common voltage and current signal ranges. For legacy panels, that can save a lot of cabinet work.

Key Technical Specifications

Application Scenarios & the “Trench” Experience

A small machine loses analog control because the skid needs one more sensor input and one output for trim control. The PLC itself is fine, but the panel is out of room and the budget does not allow a full redesign. That is where a Micro expansion unit earns its keep.

• Packaging – Trim and setpoint control – Needed because the system needs a few analog points without adding a full PLC rack.
• Process skids – Small loop control – Needed when a compact controller must read and drive analog signals directly.
• Water treatment – Local flow or level trim – Needed for low-channel analog expansion in a tight cabinet.
• Machine retrofits – Legacy Micro upgrade – Needed when an existing VersaMax Micro panel needs analog capability.
• Utilities – Small auxiliary systems – Needed when 24VDC powered analog expansion is enough for the job.

A realistic replacement case: a small dosing skid lost analog trim control after one channel drifted and the original expansion unit became suspect. The operators could still run manually, but the process was ugly and wasteful. Swapping in a verified IC200UEX626 restored the analog loop and avoided a much larger controller replacement. That is the kind of job these little units are built for.

IC200UEX626

IC200UEX626

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GE Fanuc racks.

• Inbound Inspection: Confirm model string, connector condition, enclosure integrity, and any sign of heat stress or contamination.
• Live Rig Testing: Power the unit on a matching setup and verify analog input and output response.
• Electrical Parameter Checks: Confirm signal scaling, supply draw, and stability across representative test points.
• Firmware Verification: Record the exact revision or hardware data where available.
• Final QC & Anti-static Packaging: Release only after the module passes test, then pack in ESD-safe material.

The Veteran’s Tech Trap Guide

• ⚠️ Do not confuse it with a pure input module. This one does both analog input and analog output.
• ❗ Verify signal range before installation. Voltage and current ranges must match the field device.
• ⚠️ Check the power budget. Small Micro systems can get tight on 24VDC supply headroom.
• ❗ Respect the revision suffix. In old GE hardware, the suffix letter can matter more than people expect.

Frequently Asked Questions

Q: Is the IC200UEX626 hot-swappable?
A: No. Treat it as a powered-down replacement unless your exact system documentation says otherwise.

Q: How many analog channels does it have?
A: Four analog inputs and two analog outputs.

Q: What signal types does it support?
A: Common voltage and current ranges, including 0 to 10V, +/-10V, 4 to 20mA, and 0 to 20mA.

Q: What is the resolution?
A: 12-bit.

Q: Why is this cheaper than direct OEM stock?
A: Because it usually comes from surplus or secondary-market inventory, not fresh OEM production. Lower price only helps if the unit is tested and traceable.

Q: Is it fake or refurbished?
A: You should not assume either way. The honest answer is to verify labels, revision, and rack test results.

Q: What warranty is reasonable?
A: Twelve months is common for tested industrial surplus, but the test log is the real proof.
