Product Introduction & Engineering Value
When managing long-standing legacy installations, finding original 110 VAC input modules that drop into GE Series One racks without requiring panel re-engineering can be a major hurdle. The IC610MDL116A provides 16 discrete input points designed to interface directly with standard 110/120 VAC field devices such as pushbuttons, limit switches, and motor starter auxiliary contacts.
Utilizing optical isolation rated at 1500 V, the card isolates high-voltage field spikes and electrical noise from the sensitive internal logic backplane. Its proven optical front-end and onboard filter network eliminate signal chatter caused by contact bounce on aging industrial switches.
Technical Specifications
- Number of Channels: 16 input points
- Input Voltage Nominal: 110 VAC (50/60 Hz)
- Operating Voltage Range: 80 to 132 VAC
- Input Current: 8 mA per point @ 110 VAC (typical)
- ON Voltage Level: 80 VAC minimum
- OFF Voltage Level: 30 VAC maximum
- ON Delay / OFF Delay: 10 ms to 30 ms maximum (filtered against contact chatter)
- Backplane Power Draw: 100 mA @ 9 VDC (drawn directly from CPU/Expansion rack power)
- Isolation Rating: 1500 VAC channel-to-backplane (optical isolation)
- Status Indication: Red LED per channel (1–16) on module front faceplate
Field Application & The “Trench” Experience
During an overhaul of a heritage material handling system at an automotive stamping facility, a voltage surge destroyed several input points on a legacy Series One rack, halting the main transfer line. Panel space was fixed, and rewriting ladder logic for a modern PAC platform was out of the question due to strict production timelines. We pulled a tested IC610MDL116A from surplus stock, swapped it into slot 2 of the expansion rack, and landed the 110 VAC field wiring onto the swing arm. All 16 limit switch inputs registered immediately, allowing the line to resume operation without a single line-code change.
Niche Application Scenarios:
- Stamping Press Guard Monitoring: Interface 110 VAC safety interlocks and key switches into legacy Series One PLC racks.
- Municipal Pumping Stations: Reading 120 VAC float switches and pump run-indication contacts across legacy telemetry panels.
- Conveyor Control Racks: Polling photo-eye sensors and emergency pull-cord switches operating on 110 VAC control transformers.

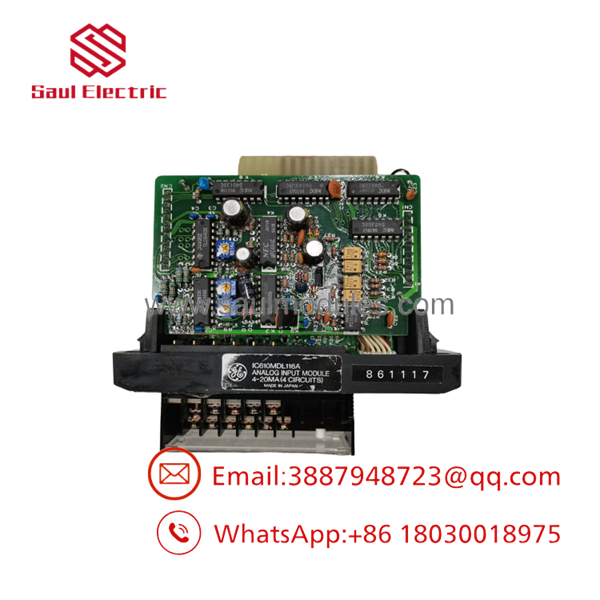

- IC610MDL116A

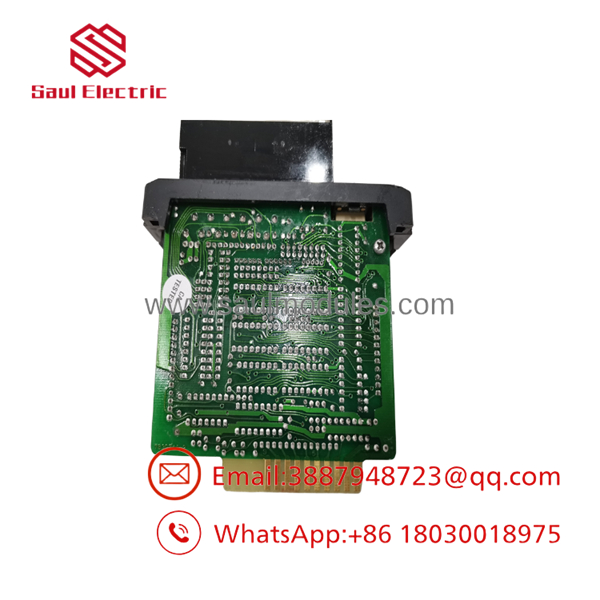

- IC610MDL116A
Transparency SOP: QA & Testing
- Backplane Connector & Terminal Audit: Visual inspection of the edge connector fingers, card housing, and front panel LED lenses for mechanical defects or thermal degradation.
- Logic Power Rail Test: Verification that backplane power draw remains within nominal tolerances on our Series One test rack.
- 16-Channel 110 VAC Voltage Injection: Injecting 110 VAC across each individual channel using a simulated field switch bank to verify optocoupler triggering and LED illumination.
- Leakage & Threshold Verification: Testing ON threshold (>80 VAC) and OFF threshold (<30 VAC) limits to ensure reliable switching performance without false triggers from field cable leakage.
- Burn-In & CPU Execution Test: Running the module in a live Series One CPU rack for 2 hours under continuous channel-toggling cycles to ensure long-term thermal stability.
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Confuse AC and DC Models: The IC610MDL116A is strictly an AC input card (80–132 VAC). Connecting 24 VDC sensor outputs to this card will not activate the optocoupler front-end, while applying 110 VAC to a 24 VDC input card (like the IC610MDL106) will cause immediate hardware destruction.
- PRO TIP: Mind the Common Terminal Grouping! Channels on the IC610MDL116A share common AC returns. Ensure your field wiring feeds all 16 inputs from the same 110 VAC phase or control transformer to avoid phase-to-phase short circuits across adjacent terminal points!
- ⚠️ Watch for Off-State Cable Leakage: Long field wiring runs or solid-state proximity sensors with high off-state leakage current (>2 mA) can hold the input channel above its 30 VAC OFF threshold, causing channels to remain stuck “ON” in logic even when the sensor is open.
Dynamic FAQ
Q: Is the cross-compatible with Texas Instruments or AutomationDirect/Koyo 305 systems? A: Yes. The GE Series One, TI305, Siemens 305, and Koyo DL305 platforms share the same underlying hardware design. The physically and functionally corresponds to the Koyo/AutomationDirect D3-16NA-1 110VAC input module.
Q: Do I need an external DC power supply to power this module’s logic? A: No. The internal logic interface is powered directly from the 9 VDC backplane bus supplied by the Series One CPU or expansion rack power supply unit.
Q: What is the difference between revision and IC610MDL116B? A: The revision letter indicates internal component manufacturing updates. Form, fit, logic addressing, and electrical ratings remain 100% identical and fully backward/forward compatible across revisions.
Q: What warranty coverage is provided on supplied units? A: Every unit undergoes full 16-point AC bench testing and ships backed by a comprehensive 1-Year replacement warranty.
