GE Fanuc IC693ALG220 Series 90-30 4-Channel Analog Voltage Input Module

Description

Product Introduction

The GE Fanuc IC693ALG220 is a 4-channel analog voltage input module designed for the Series 90-30 PLC platform. Engineered to interface analog field instruments with a central controller, this high-precision module converts analog voltage signals—such as speed feedback, position sensor readings, and pressure signals—into 12-bit digital logic words.

Plugging directly into any standard I/O slot of a Series 90-30 backplane (such as IC693CHS391 or IC693CHS397), the IC693ALG220 processes inputs using an A/D converter with fast channel update times. Each channel can be configured independently for unipolar (0 to +10 VDC) or bipolar (-10 to +10 VDC) voltage ranges, ensuring flexibility across complex motion and feedback loops.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 1:45 AM at a plastics extrusion plant. The main feed screw drive trips offline due to speed feedback instability. The central PLC receives fluctuating voltage readings from a tachometer feedback circuit, causing the extruder to cycle wildly. The issue stems from an internal A/D converter failure on the aging IC693ALG220 card caused by years of thermal cycling inside the main control panel.

Primary Industrial Applications

• Plastics & Extrusion Machinery: Reads potentiometer position sensors, dancer arm feedback, and drive speed references.
• Metal Stamping & Presses: Monitors linear position transducers (LVDTs) for press slide positioning and stroke control.
• Paper & Converting Lines: Measures tension feedback signals from load cells across web-handling roller arrays.
• HVAC & Compressor Control: Monitors system pressure differential voltage transmitters and chilled water valve position feedback.

Field Case Study A paper converting facility in Wisconsin experienced a sudden channel failure on its unwind stand tension control rack. Replacing the entire Series 90-30 PLC system would require weeks of planned shutdown, program rewrites, and cabinet rewiring. Sourcing a pre-tested surplus IC693ALG220 allowed the maintenance team to swap the card into the existing backplane slot in under 10 minutes. The CPU recognized the replacement instantly, restoring proper line tension without rewriting a single line of ladder logic.

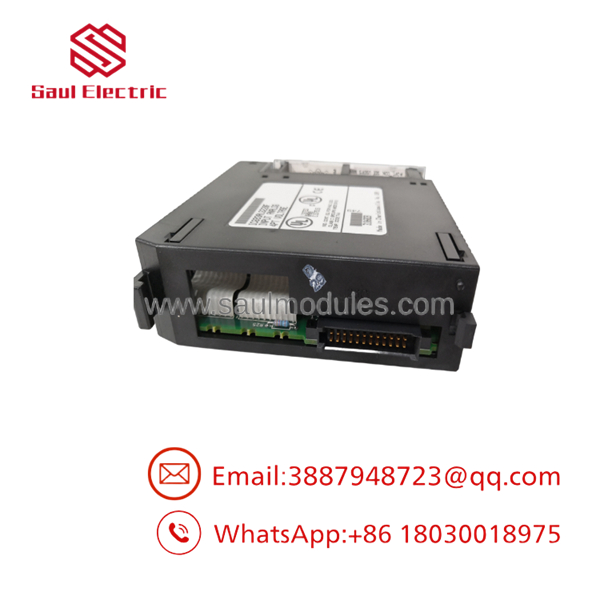

IC693ALG220

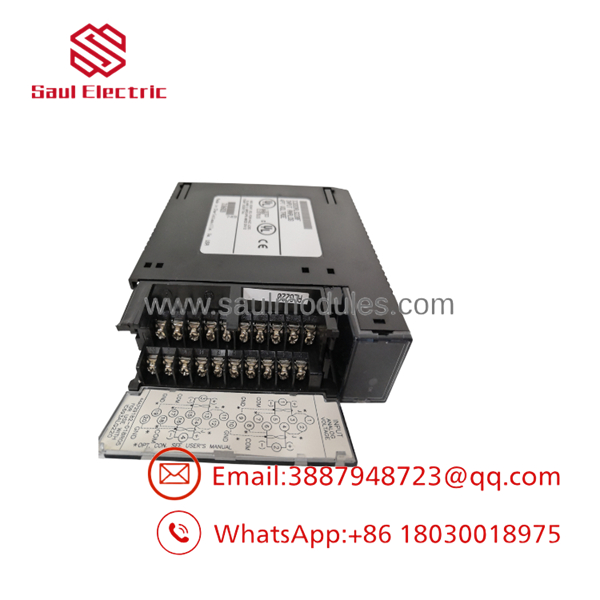

IC693ALG220

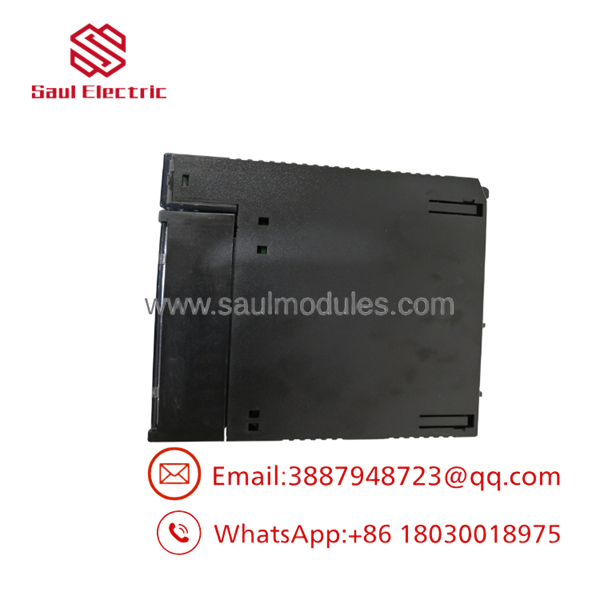

IC693ALG220

Transparency SOP: Quality Assurance & Testing

Every module undergoes functional screening on active Series 90-30 test benches:

1. Connector & Casing Audit: Inspection of backplane edge connectors, terminal strip contacts, housing snaps, and side retention clips for physical stress or oxidation.
2. Backplane Engagement Check: Mounting the card onto a Series 90-30 rack with a CPU (e.g., IC693CPU374) to verify backplane bus communications and power-up handshakes.
3. 4-Channel Voltage Injection Test: Injecting precise reference voltages (-10V, 0V, +5V, +10V) across all 4 input channels using a calibrated signal source to confirm 12-bit ADC accuracy and linearity in %AI memory.
4. Thermal Stability Audit: Running continuous 24-hour channel scans under load to ensure onboard reference circuits demonstrate zero thermal drift or gain errors.
5. ESD Protection & Packaging: Clearing memory registers, placing the module inside an anti-static ESD shielding bag, and packing with custom foam cushioning.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Trap 1: Check Voltage Range Configuration Jumpers! The supports both 0 to +10V and -10 to +10V inputs, but configuring the input range requires setting internal hardware jumpers on the module circuit board OR configuring the hardware tree in Logicmaster / Proficy Machine Edition. If a channel configured for 0–10V receives a negative voltage (-10V), the CPU memory word will clamp to 0, missing vital negative feedback data.

❗ Trap 2: Mind Single-Ended Ground Loops! The features single-ended inputs sharing a common return line (COM). Connecting field sensors that have separate, non-isolated ground references can create ground loops, causing noise offsets or incorrect voltage readings across adjacent channels.

⚠️ Trap 3: Do Not Attempt Hot-Swapping! The GE Fanuc Series 90-30 backplane architecture does NOT support hot-swapping I/O modules. Removing or inserting an card while the rack power supply is energized will send voltage arcs across the gold backplane fingers, risking permanent damage to both the module and the CPU.

❗ Trap 4: Check Cable Shielding on Long Voltage Runs. High-impedance voltage signals (>500k ohms) are susceptible to electromagnetic interference (EMI) from nearby VFD motor cables and high-current contactors. Always use twisted, shielded pair wiring for voltage inputs and ground the shield at the PLC chassis ground terminal only.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I use the to read 4-20mA current signals? A: No directly. The is designed specifically for voltage inputs. To read 4-20mA signals, you should use a dedicated current input module such as the IC693ALG221 or IC693ALG222, or install external precision 250-ohm shunt resistors across the input terminals.

Q: What is the difference between and IC693ALG221? A: The reads Voltage signals (-10 to +10V / 0 to +10V), whereas the IC693ALG221 reads Current signals (4-20mA / 0-20mA / 4-20mA Enhanced).

Q: Does the require an external user power supply? A: No. The receives all operating logic power (+5 VDC) directly from the Series 90-30 backplane power supply module (e.g., IC693PWR321).

Q: Why choose pre-tested surplus modules over replacing the entire PLC system? A: Upgrading a full PLC platform requires re-engineering panel drawings, migrating ladder logic, and enduring days of plant downtime. Dropping in a pre-tested replacement restores system operation in minutes at a fraction of the cost.

Q: What warranty comes with this module? A: Every module includes a full 12-month functional replacement warranty. If any channel or internal component experiences failures under normal operating conditions within 365 days, we replace it immediately.
