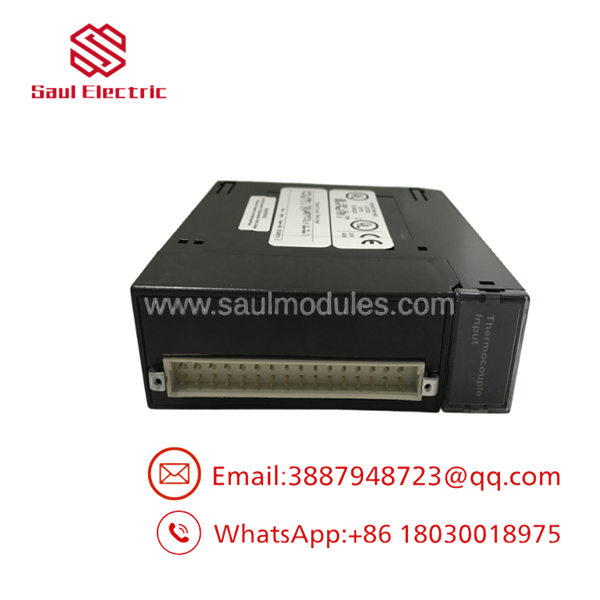

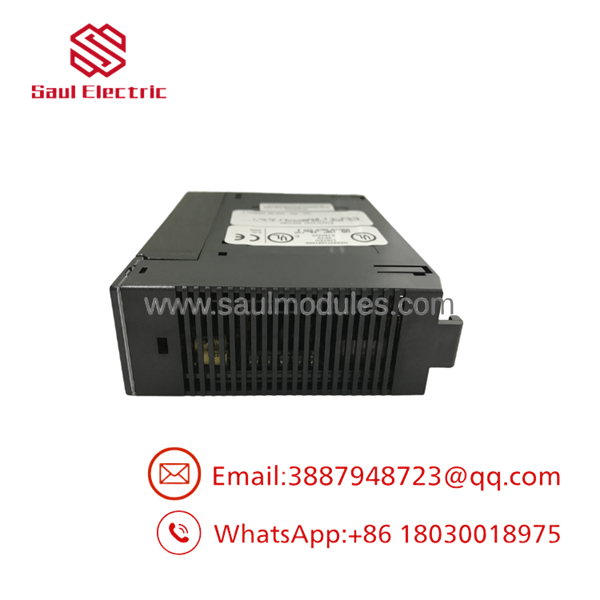

The GE Fanuc HE693THM166 is a high-density thermocouple input module for Series 90-30 systems. It lets a PLC read temperature directly from thermocouples without external transmitters or signal conditioners. The module is built for legacy industrial automation racks where temperature control still has to work the same way it did 15 or 20 years ago.
What sets it apart is the channel count and the onboard signal handling. Each module handles 16 inputs, supports multiple thermocouple types, and reports temperature in 0.5°C or 0.5°F increments. That makes it useful when you need dense I/O, reasonable accuracy, and fewer external parts in the panel.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | HE693THM166 |
| Manufacturer | GE Fanuc / Horner APG |
| Module Type | High-density thermocouple input module |
| Channel Count | 16 channels |
| Supported Thermocouple Types | J, K, N, T, E, R, S, B, C, X |
| Temperature Resolution | 0.5°C or 0.5°F |
| Power Consumption | 100 mA @ 5 VDC |
| Input Impedance | 20 MΩ |
| Maximum Safe Overload | +/- 35 V |
| Common Mode Range | +/- 12 V |
| Common Mode Rejection | >100 dB |
| Operating Temperature | 0 to 60°C |
| Field Wiring | 32-position removable terminal block |
| Recommended Wire Size | 24 AWG |
| Conversion Rate | 40 channels per second |
Application Scenarios & the “Trench” Experience
A heater loop goes unstable on a Friday night shift. Operators chase the process, but the real problem is a dead thermocouple input card. That is the kind of failure that turns a simple temperature signal into a full production headache.
- Plastics – Barrel and zone temperature monitoring – Needed because multiple thermocouples must be read directly by the PLC.
- Food processing – Oven and cooker temperature control – Needed when dense, multi-point temperature input is required in a legacy rack.
- Chemical processing – Reactor temperature monitoring – Needed for direct thermocouple acquisition with open-circuit detection.
- Metals and heat treatment – Furnace zone control – Needed because the module supports multiple thermocouple types and high channel density.
- Utilities – Legacy plant retrofit – Needed when the existing Series 90-30 base must stay in service.
A realistic replacement case: a packaging plant lost one HE693THM166 module on a multi-zone sealing line. The PLC still ran, but temperature values started freezing and drifting, which forced the line down. A tested replacement card restored all 16 channels, and the maintenance team avoided a long weekend rework on the control panel. Downtime was the expensive part. The card was the easy part.
- HE693THM166
- HE693THM166
Transparency SOP: Quality Assurance & Testing
We do not just ship boxes; we test them on actual GE Fanuc racks.
- Inbound Inspection: Verify part number, connector condition, label authenticity, and signs of prior overheating or contamination.
- Live Rig Testing: Power the module on a matching rack and confirm startup behavior, channel response, and fault indication.
- Electrical Parameter Checks: Confirm current draw, input stability, and signal response across representative thermocouple inputs.
- Firmware Verification: Record the exact firmware or hardware revision if available on the module label or test log.
- Final QC & Anti-static Packaging: Seal the unit only after it passes functional checks, then pack it in ESD-safe material.
The Veteran’s Tech Trap Guide
- ⚠️ Don’t mix up thermocouple wire types. J on the panel and K in the field is how you get garbage data and a long afternoon.
- ❗ Take a photo of the terminal block before removal. One swapped pair can look like a failed module.
- ⚠️ Watch the cold junction compensation area. Bad airflow or heat from nearby parts will skew readings.
- ❗ Respect grounding and shielding. A sloppy shield termination can create noise that looks like sensor failure.
Frequently Asked Questions
Q: Is the HE693THM166 hot-swappable?
A: No. Treat it as a powered-down replacement unless your exact rack documentation says otherwise. Pulling it live is asking for trouble.
Q: How many thermocouple inputs does it have?
A: 16 channels.
Q: What thermocouple types does it support?
A: J, K, N, T, E, R, S, B, C, and X.
Q: What is the temperature resolution?
A: 0.5°C or 0.5°F, depending on setup.
Q: Does it need external signal conditioning?
A: No. It performs the thermocouple processing on the module itself.
Q: Why is this cheaper than OEM direct stock?
A: Because it usually comes from surplus or refurbished industrial inventory, not a fresh factory production run. That lowers cost, but testing matters more.
Q: Is it fake or refurbished?
A: It can be either, depending on the seller. A serious supplier should prove it with rack testing, inspection, and traceable condition grading.
