GE Fanuc IC200GBI001 VersaMax Genius Network Interface Unit

Description

Product Introduction

The GE Fanuc IC200GBI001 is a Genius Network Interface Unit for the VersaMax platform. It lets a VersaMax rack act as a remote I/O drop on a Genius network, which is how a lot of older GE systems moved data around without a full controller in every panel.

This module matters in legacy distributed I/O systems where the network architecture is already fixed. It supports multiple racks, bus scan data transfer, and the kind of compatibility that keeps old plants running without ripping out the whole control layer.

Key Technical Specifications

Application Scenarios & the “Trench” Experience

A line goes down because a remote I/O drop stops talking to the network. The PLC is alive, the cabinet lights are on, but the data is dead. That is the moment when a Genius interface module becomes the whole story.

• Manufacturing – Remote I/O drops – Needed because the VersaMax rack must participate on a Genius network.
• Turbine control – Legacy GE control systems – Needed where Genius networking is part of the original architecture.
• Process plants – Distributed control cabinets – Needed for long-run I/O without moving everything to a new platform.
• Retrofit work – Legacy network preservation – Needed when the site wants to keep the existing bus structure.
• Utilities – Multi-rack remote I/O – Needed when several racks must report through one network interface.

A realistic replacement case: a gas turbine support system lost its Genius interface during a planned maintenance window, and the operator could not trust remote I/O status. The spare shelf had the right part number, but the team still had to verify the rack, address, and network settings before power-up. Once the correct IC200GBI001 was in place, the remote drops came back cleanly and the shutdown stayed a planned one.

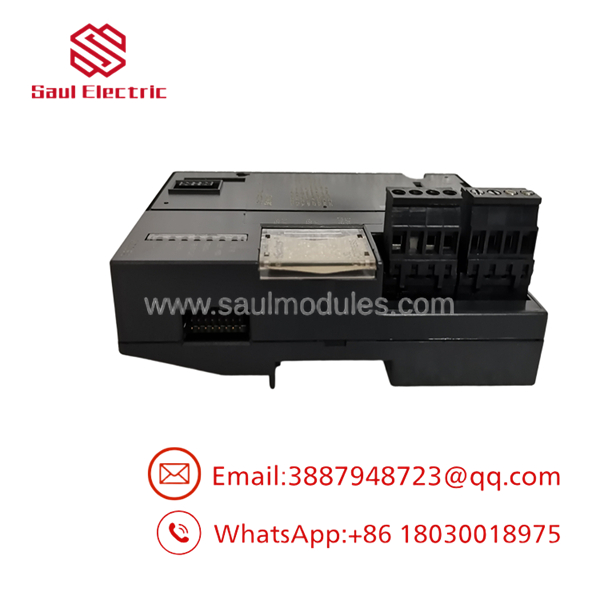

IC200GBI001

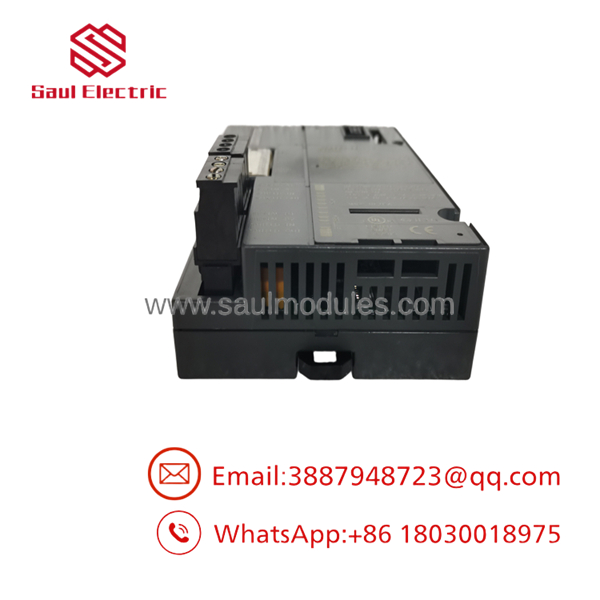

IC200GBI001

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GE Fanuc racks.

• Inbound Inspection: Verify part number, revision label, connector wear, and any evidence of prior heat or contamination.
• Live Rig Testing: Power the module on a matching VersaMax base and confirm network handshake, status LEDs, and rack recognition.
• Electrical Parameter Checks: Confirm supply draw and communication stability under load.
• Firmware Verification: Record exact revision data where available and compare it to the expected compatibility set.
• Final QC & Anti-static Packaging: Seal only after functional validation, then pack in ESD-safe material.

The Veteran’s Tech Trap Guide

• ⚠️ Don’t confuse Genius with other GE networks. The wiring may look similar, but the protocol is not.
• ❗ Check the rack count and address settings. A wrong address can make a good card look dead.
• ⚠️ Verify the power numbers before install. Legacy modules often have more than one reported supply value.
• ❗ Take notes before you pull the old one. Bus termination, address, and rack location all matter.

Frequently Asked Questions

Q: Is the IC200GBI001 hot-swappable?
A: No. Treat it as a powered-down replacement unless your exact system documentation says otherwise.

Q: What does this module do?
A: It acts as a Genius Network Interface Unit for VersaMax remote I/O.

Q: How many racks can it handle?
A: Up to 8 racks, with 8 modules per rack.

Q: What is the bus address range?
A: 0 to 31.

Q: What data rates does it support?
A: 38.4, 76.8, and 153.6 kbaud.

Q: Why is it cheaper than direct OEM stock?
A: Because it usually comes through surplus channels, not fresh OEM production. That lowers price, but testing and traceability become the real value.

Q: Is it fake or refurbished?
A: You should not assume either way. The only honest answer is to verify condition, revision, and rack test results before purchase.
