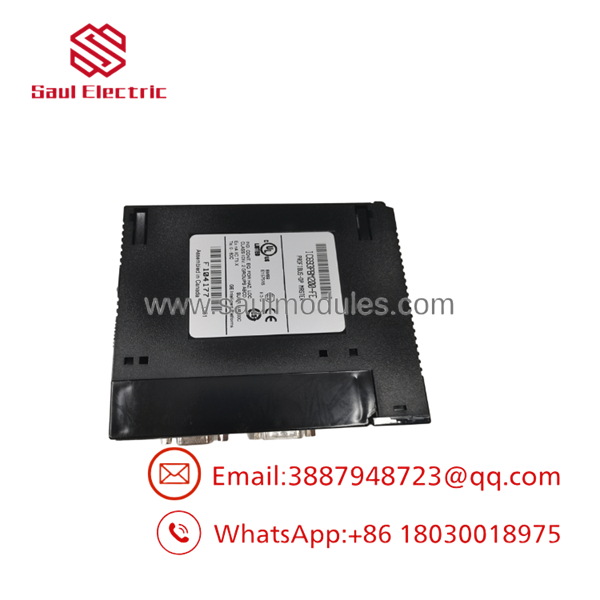

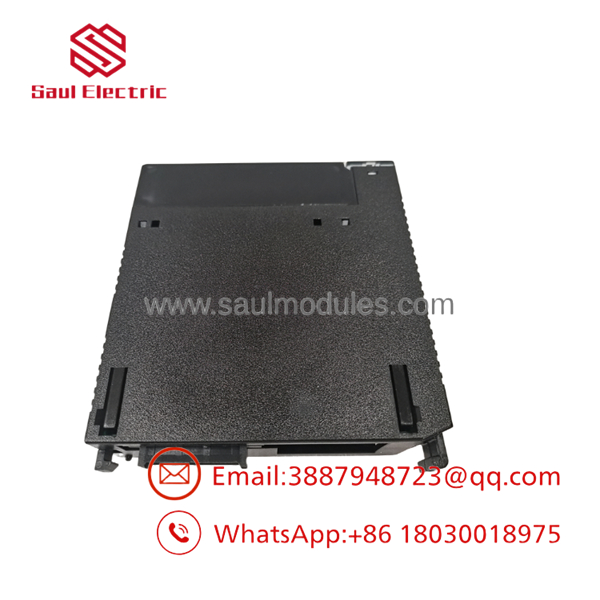

GE Fanuc IC693PBM200-FE Series 90-30 PROFIBUS DP Master

Description

Product Introduction & Engineering Value

Connecting legacy PLC architecture to distributed field devices on a high-speed fieldbus requires a reliable communication bridge. The GE Fanuc IC693PBM200-FE acts as the dedicated PROFIBUS DP Master controller for the Series 90-30 platform, allowing the host CPU to seamlessly scan, read, and write data across large networks of remote I/O blocks, variable frequency drives (VFDs), valve manifolds, and instrumentation.

Plugging into any standard slot on a Series 90-30 baseplate (except Slot 1 of a modular CPU rack), the IC693PBM200-FE offloads complex fieldbus token-passing and cyclic communication tasks from the main PLC processor. It features onboard status LEDs for network communication (COM) and system logic health (SYS), along with an RS-232 service port for firmware updating. For manufacturing facilities running PROFIBUS architecture on aging Series 90-30 chassis, keeping a verified IC693PBM200-FE on standby protects against complete network dropouts.

Technical Specifications

• Network Protocol: PROFIBUS-DP (Decentralized Periphery) Master
• Baud Rates Supported: Auto-detects 9.6k, 19.2k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, and 12M Baud
• Maximum Slaves Supported: Up to 125 PROFIBUS DP slave nodes
• I/O Capacity per Slave: Max 244 bytes input / 244 bytes output per node
• Total Module Memory Limit: 3,972 bytes Input data / 3,972 bytes Output data across all slaves
• Advanced Modes: Sync Mode, Freeze Mode, and Clear Mode on PLC I/O scan stop
• CPU / Software Requirements: CPU Firmware v8.00 or higher; Proficy Machine Edition Logic Developer (v2.6 or later) or VersaPro
• Backplane Power Consumption: 450 mA maximum at +5 VDC bus rail
• Interface Connector: Standard 9-pin Sub-D female PROFIBUS connector (RS-485 physical layer) + 6-pin RJ11 service port

Field Application & The “Trench” Experience

The Bottling Line Network Failure

During a product changeover at a beverage packaging facility, a main packaging rack lost all communication with 18 remote PROFIBUS valve islands and encoder nodes, flashing a red SYS error on the master card. The shift electrician inspected the panel and found the original PROFIBUS master module was failing to complete its network handshake due to corrupted memory blocks during backplane power cycles.

The technician grabbed a spare IC693PBM200-FE module from inventory. Because PROFIBUS node configurations and slave GSD files are stored in the host CPU’s hardware configuration memory (configured via Proficy Machine Edition), swapping the physical card required zero field-side reprogramming. They unclipped the DB9 fieldbus connector, swapped the card into Slot 3 of the baseplate, reattached the shielded DB9 cable, and powered up the rack. The IC693PBM200-FE automatically pulled its network mapping configuration from the CPU, established green COM sync across all 18 nodes, and restored full production within 15 minutes.

Primary Industrial Use Cases

• Automated Material Handling: Interfacing a central Series 90-30 PLC to multiple remote motor drives (VFDs) and barcode scanners over a single shielded PROFIBUS trunk.
• Water & Wastewater Treatment: Gathering digital/analog signals from scattered pump stations and flowmeters running on PROFIBUS DP networks.
• Chemical Batching Systems: Coordinating high-density valve manifolds and weight transmitters across hazardous and non-hazardous plant zones.

IC693PBM200-FE

Transparency SOP: QA & Testing

[1. Visual & Port Audit] ──> [2. Backplane Current Check] ──> [3. Baud Rate Loopback Sweep] ──> [4. Multi-Slave Stress Scan]

1. Connector & Housing Inspection: We inspect the module chassis for damaged housing snaps, verify the backplane edge connector is free of tarnish, and check that the DB9 housing locking nuts are firmly seated.
2. Backplane Logic Verification: The module is inserted into a Series 90-30 baseplate to verify backplane +5 VDC logic current draw stays under the specified 450 mA rating.
3. High-Speed Baud Rate Test: Using a PROFIBUS bus analyzer, the module is tested across all standard communication speeds—from 9.6k Baud up to 12M Baud—to confirm physical transceiver driver timing and waveform clarity.
4. Live Multi-Slave Rack Scan: We integrate the into an active test rack containing an IC693CPU363 CPU connected to multiple PROFIBUS slave drops. We simulate cyclic I/O sweeps, verify Clear/Sync/Freeze modes, and confirm zero dropped packets under full bus load.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ TRAP 1: Baseplate Slot 1 Limitation (Modular CPU Baseplates)

The can be mounted in almost any slot in a CPU, Expansion, or Remote baseplate EXCEPT Slot 1 of a modular CPU baseplate (IC693CHS391 / IC693CHS397). Slot 1 on those baseplates is reserved strictly for the CPU module itself. Placing this module in Slot 1 will prevent the rack from powering up or executing backplane scans.

⚠️ TRAP 2: Bus Address Mapping vs. Configuration Order (HE693 Comparison)

If you are replacing an older Horner-manufactured PROFIBUS card (HE693PBM101) with the GE , be aware that slave status bits are ordered differently. The Horner card orders status bits by their sequence in the software configuration tree, whereas the maps status bits strictly by ascending bus node address. You may need to adjust bit-level ladder logic if relying on slave status word arrays.

⚠️ TRAP 3: RS-485 Termination Resistors at Line Ends

PROFIBUS DP requires active termination at both physical ends of the cable trunk. If the sits at the start or end of the daisy chain, the termination switch on the DB9 cable connector must be flipped to ON. Leaving line ends unterminated will cause intermittent CRC frame errors and sporadic node dropouts at higher baud rates (especially above 1.5M Baud).

Dynamic FAQ

Q: What does the “-FE” suffix on part number indicate?

A: The “-FE” suffix designates the specific hardware design and factory firmware revision level of the IC693PBM200 module. Revision FE includes updated internal component board revisions and enhanced baud rate stability compared to earlier revisions like -AA or -BA.

Q: Can the serve as a PROFIBUS PA (Process Automation) master directly?

A: No. The natively supports PROFIBUS DP (RS-485 physical layer). To connect to PROFIBUS PA field instruments (MBP 31.25 kbit/s physical layer), you must install an intermediate DP/PA coupler or link device between the module and the PA network segment.

Q: What happens to field outputs when the Series 90-30 CPU is placed in STOP mode?

A: When the PLC CPU stops scanning I/O, the enters Clear Mode. In Clear Mode, the master continues scanning the PROFIBUS slaves but transmits zeroed output data to prevent actuators or motors from remaining energized unsafely.

Q: Does the require external 24 VDC power?

A: No. The module draws all logic and transceiver power directly from the baseplate’s +5 VDC power bus rail (drawing up to 450 mA). No external power wire connections are needed on the front of the module.

Q: What warranty is offered with your surplus/remanufactured modules?

A: All modules—whether new surplus or fully remanufactured—pass 12M Baud multi-slave stress testing and include our 12-month full-replacement warranty in ESD protective packaging.
