Description
Product Introduction & Engineering Value
High-density control cabinets run out of rail space fast when you’re driving hundreds of discrete field devices. The GE PACSystems RX3i IC694MDL753 fixes that panel congestion by packing 32 positive-logic sourcing outputs into a single slot width, cutting hardware rack footprint in half compared to standard 16-point cards.
Designed to interface directly with the high-speed RX3i PCI backplane, this module delivers fast, low-latency transistor switching without waiting on mechanical contact bounce. With four independently isolated 8-channel groups, it gives control engineers the flexibility to route different field voltage supplies across a single physical card while keeping sensitive logic isolated from high-draw solenoids.
Technical Specifications
| Parameter | Specification Details |
| Output Channels | 32 Positive Logic (Sourcing) |
| Operating Voltage Range | 12 to 24 VDC (+20%, -15%) |
| Output Current Capacity | 0.5 A maximum per point (3.0 A max per 8-point group) |
| Isolation Grouping | 4 Isolated Groups (8 points per group) |
| Response Time | 0.5 ms maximum On/Off switching delay |
| Off-State Leakage Current | 0.5 mA maximum |
| Inrush Current | 2.0 A maximum for 10 ms |
| Backplane Current Draw | 300 mA @ 5 VDC / 130 mA @ 24 VDC isolated |
| Connector Type | Dual 24-Pin High-Density Connectors (Box Header) |
| Status Indicators | 32 LED logic-side output state lights |
Field Application & The “Trench” Experience
The Trench Story: A high-speed automotive stamping cell experienced intermittent production halts when a wiring bundle shorted against a robot riser, frying two output channels on an existing output card. The field service team bypassed the damaged points by remapping signals to spare channels on an installed IC694MDL753, updating the %Q bits in PAC Machine Edition online without taking down CPU power, and had the stamping line cycling parts again in 15 minutes flat.
- High-Speed Pallet Sorting Conveyors: Driving 24V pneumatic diverter valves requiring sub-millisecond response times across automated distribution centers.
- Automated Assembly Matrix Control: Switching bank-mounted solenoid manifolds and 24 VDC indicator pilot lights across multi-station indexing tables.
- Motor Control Center (MCC) Pilot Interfaces: Providing clean 24 VDC run commands and interlock signals to local contactor coils and motor starters.

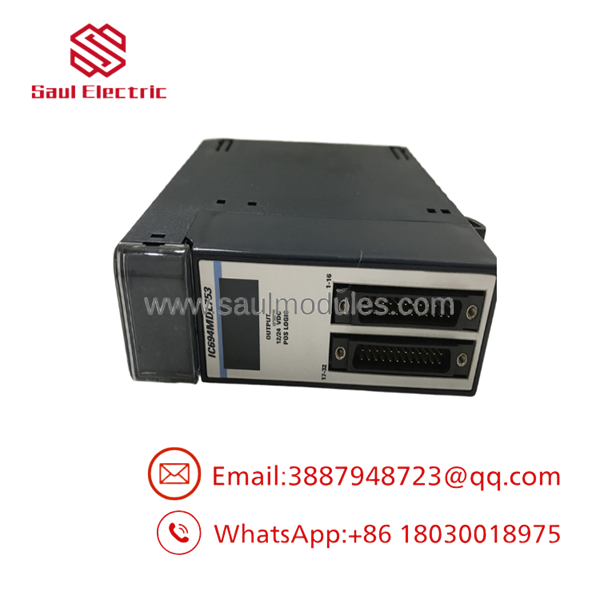

- IC694MDL753

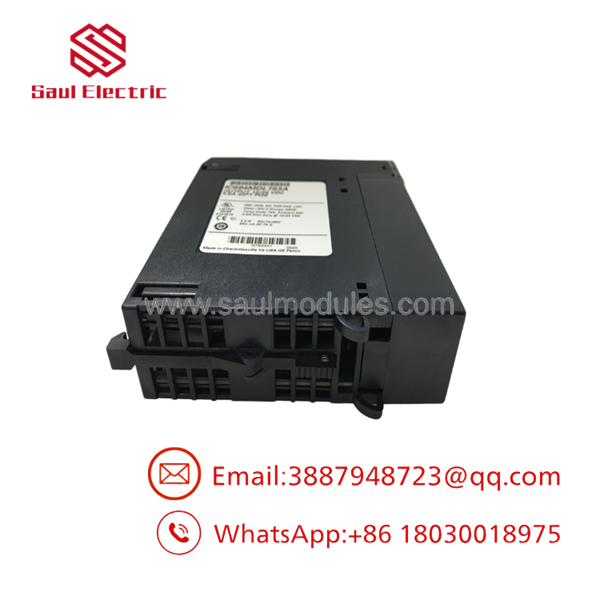

- IC694MDL753
Transparency SOP: QA & Testing
- Connector Pin & Housing Audit: Thorough mechanical check of both 24-pin front headers, housing guide rails, and card-edge backplane pins for bent or contaminated contacts.
- Backplane & Group Power-Up: Plugging the unit into an RX3i baseplate (IC695CHS012) and applying 24 VDC field power across all four isolated group power terminals to confirm
MODULE OKstatus and power distribution. - Full 32-Point Load Cycling: Driving each of the 32 individual sourcing channels against a 0.5A resistive/inductive load array to verify switching voltage drop (< 0.5V) and thermal stability.
- Leakage & Crosstalk Verification: Confirming off-state leakage stays well under 0.5 mA per channel to prevent false actuation of high-impedance relay inputs.
- Dynamic LED Array Test: Rapidly stepping output bit patterns to verify optical isolation and proper operation of all 32 front-panel diagnostic LEDs.
The Veteran’s Tech Trap Guide
⚠️ Wiring Pinouts & Sourcing Logic: The IC694MDL753 is a sourcing (positive logic) module—it switches the +24 VDC line out to your load. If you connect it to field devices wired for sinking (NPN) logic where the load expects a switched ground, nothing will activate. Double-check your field device polarity before terminating wires.
⚠️ Group Power & Common Line Independence: Each of the 4 groups (Points 1–8, 9–16, 17–24, 25–32) requires its own external +24V supply and 0V DC reference return wired to the front header. If you leave a group’s ground or power pin unhooked, that entire 8-point section will remain completely dead even if the module LEDs light up.
PRO TIP: This module uses dual high-density 24-pin connectors instead of standard screw terminal blocks. Never attempt to crimp these connectors by hand in the field with generic pliers; use factory pre-wired cable harnesses (like IC693CBL300) or dedicated terminal block break-out boards to avoid intermittent pin retention faults.
Dynamic FAQ
Q: Does the IC694MDL753 feature built-in short circuit protection on its outputs?
A: The provides electronic short-circuit protection, but it is intended for transient overcurrent defense. For long-term wiring protection against direct short circuits, external fast-acting fuses should be placed on each field power group feed.
Q: Can I run 12 VDC field devices on Group 1 and 24 VDC field devices on Group 2?
A: Yes. Because the card features four fully isolated groups of 8 points, you can connect different DC power sources (within the 12 to 24 VDC operating range) to separate group power terminals on the same module.
Q: What is the difference between the and the older Series 90-30 IC693MDL753?
A: The is built for the high-speed RX3i PCI backplane with updated internal electronics and plastic housing, whereas the IC693 model uses the legacy Series 90-30 backplane protocol.
Q: Are your surplus units backed by a warranty?
A: Absolutely. All our New Surplus and Refurbished modules pass complete 32-channel bench testing under actual load conditions, are sealed in anti-static ESD packaging, and carry our full replacement warranty.
