Description
Product Introduction & Engineering Value
Engineering legacy control systems means balancing rock-solid reliability against tricky hardware limitations. The GE Fanuc IC697BEM731 Genius Bus Controller acts as the operational brain for token-passing Genius LAN architectures inside Series 90-70 racks. It handles asynchronous scanning of field-mounted Genius I/O blocks (IC660/IC661) and offloads deterministic token routing directly from the CPU backplane.
Equipped with a dedicated front-panel Hand-Held Monitor (HHM) port, field technicians can directly tap into network diagnostics or force point states without breaking open a laptop. Configuration transfers entirely through soft-assignment in MS-DOS Logicmaster 90-70 or Windows-based VersaPro/Proficy Machine Edition software, removing hardware jumpers completely.
Technical Specifications
| Parameter | Specification |
| Module Type | Genius Bus Controller (GBC) |
| Operating Voltage | 5.0 V DC (Backplane supplied) |
| Backplane Current Draw | 1.3 Amps @ +5V DC |
| Network Drops per Channel | Up to 30 Genius I/O blocks or peer controllers |
| Supported Baud Rates | 153.6 Kbaud (Std/Ext), 76.8 Kbaud, 38.4 Kbaud |
| Max Network Cable Distance | 2,000 ft @ 153.6K (Std); 3,500 ft @ 153.6K (Ext); 7,500 ft @ 38.4K |
| Physical Cable Type | Belden 9182 shielded twinaxial cable (or equivalent) |
| Network Termination | 75 Ohm or 150 Ohm resistors required at both line ends |
| Communication Capabilities | Global Data, Datagrams, Directed Messaging, and I/O scan transfers |
| Front Connectors | 3PL (Genius Bus Terminal Block), 1PL (Hand-Held Monitor Port) |
| Diagnostics & Status | 3 Front LEDs: MODULE OK, BUS OK, and HHM Active |
Field Application & The “Trench” Experience
During a planned shutdown at a continuous paper mill, a legacy Genius Bus Controller on the headbox control rack suffered a complete logic failure following a clean-power bus transfer. The failure dropped communications to 22 field-mounted IC660 discrete and block-analog units controlling slice lip actuators.
Because the existing architecture relied on global data exchange to sync drive speeds across three separate Series 90-70 racks, the whole line locked out. Swapping the failed module with an IC697BEM731 unit, reconnecting the Belden twinax leads to the 3PL terminal block, and pushing the hardware configuration file restored full Genius token ring traffic within 15 minutes.
Target Application Scenarios:
- Catalytic Cracking Unit Temperature Control: Offloading field temperature block polling from remote thermocouple drops across long cable runs.
- Blast Furnace Material Handling: Managing high-density Genius block I/O distributed over broad physical footprints.
- Inter-PLC Global Data Exchange: Deterministically passing process data inter-rack between main 90-70 supervisory controllers and auxiliary 90-30 skid systems.

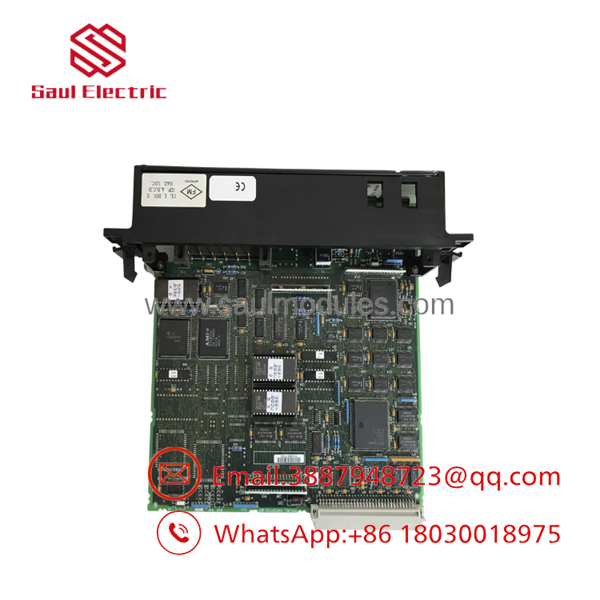

- IC697BEM731

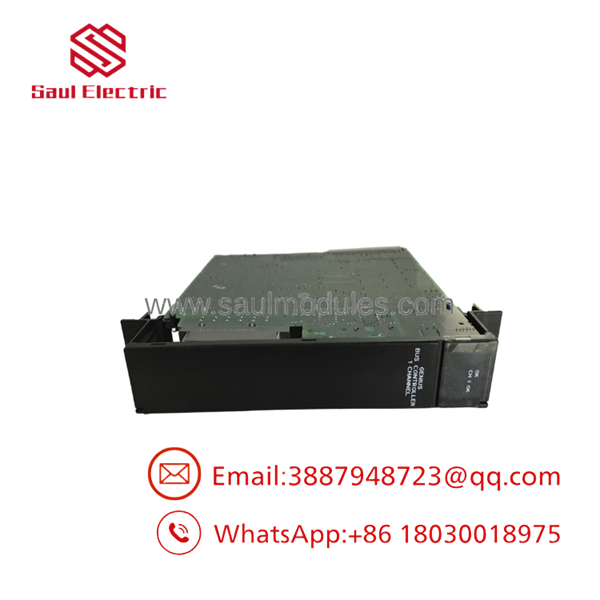

- IC697BEM731
Transparency SOP: QA & Testing
Every IC697BEM731 unit undergoes rigorous multi-step hardware and network stress testing before entering active inventory:
- Backplane & Visual Validation: Connectors (3PL/1PL) and board trace pathways are inspected under optical magnification for pin fatigue or component scorching.
- Current Draw Verification: Mounted into a energized Series 90-70 test rack to measure real-time current draw across the +5V bus, confirming it holds steady at the 1.3A nominal baseline.
- Genius Network Stress Testing: Wired into an active Genius bus loop with multiple Genius blocks and an IC660HHM501 handheld monitor attached to test token passing, packet integrity, and baud-rate switching.
- Global Data & Datagram Transfers: Continuous 24-hour cycle test transferring cyclic data packets to verify zero corrupted datagrams or dropped bus tokens under load.
The Veteran’s Tech Trap Guide
⚠️ SHIELD GROUNDING ROUTING: Never tie the Genius bus cable shield to panel ground at both ends directly through standard earth lugs. Connect the shield strictly to the SHIELD IN / SHIELD OUT terminals on the 3PL block. Dual hard-grounding creates destructive ground loops that scramble data frames across long cable runs.
⚠️ TERMINATION RESISTOR MISMATCH: Double-check your end-of-line termination resistors. The network must have exact matching resistors (75 Ohm for standard cables, 150 Ohm for high-impedance) at the physical first and last devices on the bus. Leaving the bus open-ended or using incorrect resistance ratings causes signal reflections that trigger intermittent “Drop Out” faults on random blocks.
PRO TIP: Do not plug the IC660HHM501 Hand-Held Monitor directly into the 1PL front port if another HHM is currently plugged into a field block on the same Genius network. Having two active HHMs on the same physical bus simultaneously causes bus collisions and can drop the network token!
Dynamic FAQ
Q: Can I use the IC697BEM731 in Slot 1 of a Series 90-70 rack?
A: No. Slot 1 is reserved exclusively for the main System CPU module. The can be installed in any available I/O slot in the main CPU rack or option racks.
Q: What is the maximum number of devices I can connect to a single card?
A: A single-channel supports up to 30 Genius bus drops (addresses 0 through 31, with one address reserved for the controller itself).
Q: What cable type should I use for running a Genius bus network?
A: GE Fanuc recommends using high-quality shielded twinaxial cable, such as Belden 9182 or equivalent low-capacitance cable, to maintain noise immunity over long distances.
Q: Does your surplus stock of modules come with a warranty?
A: Yes. All of our New Surplus and fully reconditioned modules are backed by our comprehensive 2-year full replacement warranty.
Q: Why does the bottom LED on my remain off during normal operation?
A: On the module, the bottom LED is intentionally unused and stays continuously OFF during normal operation. Only the top (MODULE OK) and middle (BUS OK) LEDs indicate operational status.
