Product Introduction & Engineering Value
When processing heavy mathematical algorithms and managing large I/O counts, standard entry-level Series 90-70 CPUs often hit a wall in scan times. The GE Fanuc IC697CPX782 answers that challenge with an 80486DX4 processor running at 96 MHz, delivering a blazing 0.4-microsecond Boolean execution speed alongside full 32-bit floating-point math support.
Occupying a single slot in the CPU chassis, this module includes 1 MB of battery-backed CMOS RAM and 256 KB of non-volatile Flash memory. It features three independent onboard serial ports (one RS-232 and two RS-485), giving engineering teams multi-channel serial integration without taking up extra VME slot space for serial coprocessors.
Technical Specifications
- Microprocessor: 32-bit Intel 80486DX4 running at 96 MHz
- User Memory: 1 Megabyte battery-backed CMOS RAM + 256 Kilobytes Flash memory
- Boolean Logic Speed: 0.4 microseconds per function
- Backplane Power Consumption: 3.1 Amps nominal @ +5V DC
- Slot Requirement: Single slot (occupies Slot 1 of the CPU rack)
- I/O Capacity: Up to 12,000 mixed discrete I/O points and 8,000 analog I/O points
- Communication Ports: 3 Onboard Serial Ports (Port 1: RS-232, Port 2: RS-485 opto-isolated, Port 3: RS-485 non-isolated)
- Supported Protocols: SNP, SNPX, and Serial Read/Write commands
- Front Panel Controls: 3-position operating mode switch (Run/Disabled, Run/Enabled, Stop/Disabled) and Memory Protect Key Switch
- Status Indicators: 7 front-facing green LEDs for CPU runtime, backplane, and port activity monitoring

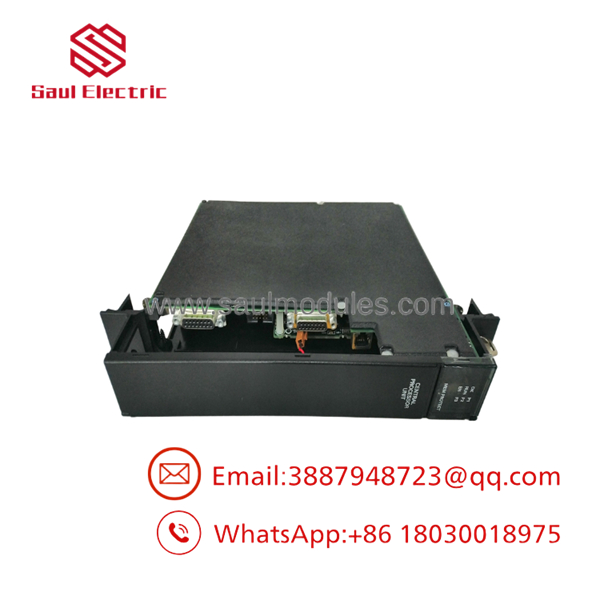

- IC697CPX782
Field Application & The “Trench” Experience
During an emergency overhaul at a high-volume chemical batch plant, a legacy Series 90-70 CPU card threw fatal memory parity faults following a power spike, shutting down two critical reactor temperature control loops. The process required extensive 32-bit floating-point PID calculations and fast communication across three downstream Genius bus networks.
The maintenance team dropped an IC697CPX782 into Slot 1 of the main rack. Because the unit features 1 MB of onboard memory and three serial ports, they loaded the existing project file using VersaPro over the RS-232 port, connected the HMI and secondary monitoring lines to the RS-485 ports, and had the reactor line fully operational in under 45 minutes without sacrificing loop resolution or scan speed.
Target Installation Scenarios:
- Multi-Axis Motion & Machine Tool Control: Executing high-speed trajectory math and rapid Boolean logic updates without introducing scan jitter.
- Large-Scale Water Treatment Facilities: Managing up to 12,000 discrete points and complex analog voting logic across multiple expansion chassis.
- Distributed Power Generation Monitoring: Interfacing directly with local panel HMIs and RTUs through onboard RS-485 serial ports.
Transparency SOP: QA & Testing
Every IC697CPX782 module undergoes systematic bench validation before entering our ready-to-ship inventory:
- Physical & Pin Block Inspection: Backplane VME pins, front key switch mechanisms, and serial DB port connectors are checked under magnification for mechanical stress or bent contacts.
- Thermal & Voltage Load Test: Seated in Slot 1 of a Series 90-70 test chassis backed by a high-output power supply to verify the CPU holds tight parameters under a full 3.1A power load.
- Memory Integrity Cycling: NVRAM and Flash storage are stress-tested through power-loss cycles to verify that battery-backed program data holds without corruption.
- Multi-Port Serial Communication Pass: Ports 1, 2, and 3 are individually tested under continuous SNP protocol polling to verify zero dropped frames or parity errors.
The Veteran’s Tech Trap Guide
⚠️ HEAVY CURRENT DRAW WARNING: The 80486DX4 96 MHz processor and expanded memory bank draw a heavy 3.1 Amps from the +5V DC backplane bus. If you are upgrading an older 80386 CPU to the IC697CPX782 in a fully populated rack, verify that your rack power supply (such as an IC697PWR711 or PWR724) has sufficient remaining overhead to avoid thermal shutdowns.
⚠️ BATTERY RETENTION TIMELINE: Non-powered RAM retention is nominally 6 months under standard conditions using a fresh lithium battery. In control cabinets operating near 50°C to 60°C, battery degradation accelerates rapidly. Always replace the lithium battery on a 2-to-3-year preventive maintenance cycle to prevent total program loss during plant turnarounds.
PRO TIP: Port 2 is opto-isolated RS-485, while Port 3 is non-isolated RS-485. Always use Port 2 for long-distance serial runs or inter-cabinet comms to prevent ground loop potential differences from damaging the processor board.
Dynamic FAQ
Q: Can I use the IC697CPX782 in any slot of a Series 90-70 chassis?
A: No. Like all Series 90-70 CPUs, the must strictly be installed in Slot 1 (the leftmost position) of the main rack.
Q: What software can I use to program and configure the ?
A: This processor supports legacy MS-DOS Logicmaster 90-70, VersaPro, and modern Proficy Machine Edition (PME) software suites.
Q: Does this CPU support direct Ethernet communications out of the box?
A: No. While it has three serial ports onboard, connecting to an Ethernet TCP/IP network requires installing a dedicated Series 90-70 Ethernet module (such as the IC697CMM741 or IC697CMM742) in an adjacent backplane slot.
Q: What condition is your stock in, and what warranty covers this module?
A: We supply both New Surplus and fully reconditioned modules. Each unit is rig-tested and backed by our comprehensive 2-year replacement warranty.
Q: How do I lock the CPU memory from unauthorized changes in the field?
A: You can restrict logic modifications either through software password protection or by turning the front-panel Memory Protect key switch to the locked position.
