Product Introduction & Engineering Value
Balancing high-resolution visualization with cost-conscious panel design is a constant hurdle in mid-sized OEM equipment builds. The GE Fanuc IC754VSI12CTD hits the sweet spot by packing a spacious 12.1-inch SVGA display into a cost-effective “Intermediate” hardware profile, delivering sharp graphics without requiring full-scale enterprise HMI hardware budgets.
Running on a light Windows CE footprint with 32 MB of non-volatile Flash and 32 MB of system DRAM, this unit executes Proficy Machine Edition runtime projects smoothly. Its dual-interface hardware—featuring built-in 10/100 Ethernet alongside configurable RS-232/RS-485 serial communications—makes it a natural choice for drop-in panel upgrades across legacy GE Series 90-30 or modern VersaMax architectures.
Technical Specifications
| Parameter | Specification Details |
| Display Size & Type | 12.1-inch Color Active-Matrix TFT LCD |
| Native Resolution | 800 x 600 pixels (SVGA), 65k colors |
| Touch Matrix | Analog Resistive (Finger, gloved hand, or stylus) |
| Processor Type | 32-bit ARM-based RISC Processor |
| System Memory | 32 MB SDRAM / 32 MB Non-Volatile Flash |
| Operating System | Microsoft Windows CE |
| Nominal Input Power | 24 VDC Nominal (18.0 to 30.0 VDC operating range) |
| Max Power Draw | 48 Watts maximum |
| Serial Ports | 1x Software-configurable RS-232 / RS-485 port |
| Ethernet Port | 1x 10/100 Mbps RJ45 Port |
| Peripheral Expansion | 1x USB Type-A Host Port, 1x Type II CompactFlash Slot |
| Ingress Protection | NEMA 4/4X/12, IP66 (front bezel when gasket-mounted) |
Field Application & The “Trench” Experience
A municipal wastewater treatment facility in Indiana hit a bottleneck when the 10-inch HMI on a main sludge-dewatering centrifuge failed due to a dead backlight. The OEM replacement was on a 12-week backorder, leaving operators blind to critical torque and vibration trends. Our field crew pulled an IC754VSI12CTD from bench stock. Because the existing Proficy View runtime file was under 20 MB, it fitted into the VSI tier’s 32 MB Flash footprint without modification. The technician adapted the panel cutout, loaded the project via a CompactFlash card, and restored Modbus TCP link to the main PLC in under two hours.
Niche Application Scenarios:
- Centrifugal Sludge Dewatering Systems: Displaying real-time differential bowl speeds, torque curves, and polymer feed rate alarms.
- Corrugated Board Laminating Machinery: Managing multi-axis roll temperature synchronization and glue applicator timing over serial links.
- Industrial Chiller Plants: Monitoring compressor suction pressures, evaporator fluid temperatures, and safety interlocks.
Transparency SOP: QA & Testing
- Physical & Screen Inspection: Every unit undergoes microscopic verification of the glass matrix, bezel edge gaskets, CompactFlash pin array, and rear screw terminals.
- DC Voltage Tolerance Sweeps: Power supplies are swept from 18 VDC up to 30 VDC to confirm stable boot sequences and DC-DC converter regulation under varying supply conditions.
- Multi-Point Touch & Burn-In: The analog resistive grid is recalibrated across a 25-point matrix, followed by a 10-hour graphics burn-in cycle to ensure zero thermal drift or backlight fading.
- Active Communications Testing: Continuous data loopback stress tests are run on both the 10/100 Ethernet port and the serial RS-232/485 port to guarantee error-free packet transfer.

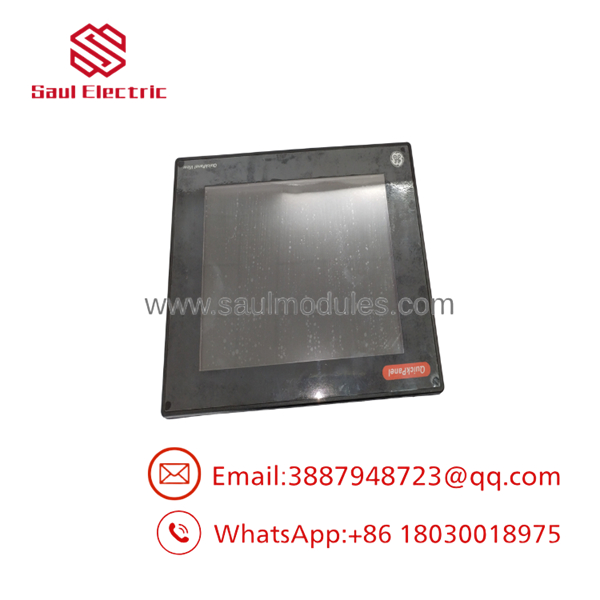

- IC754VSI12CTD

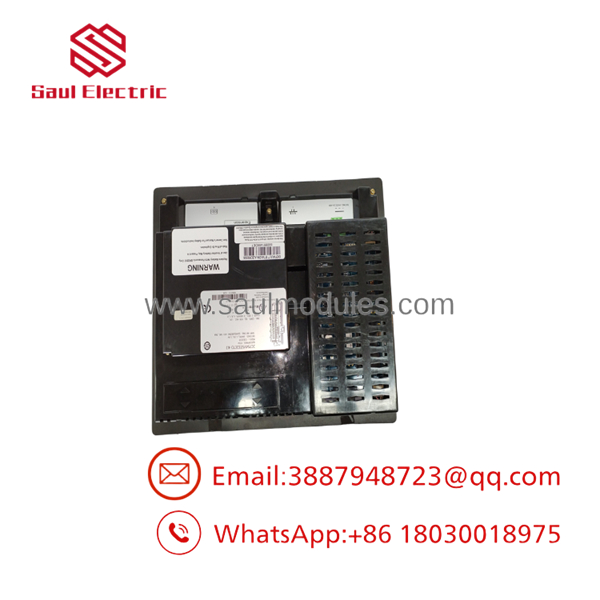

- IC754VSI12CTD
The Veteran’s Tech Trap Guide
- ⚠️ The VSI vs. VSF Memory Trap: The IC754VSI12CTD is an Intermediate tier model equipped with 32 MB Flash / 32 MB DRAM. The VSF variant features 64 MB / 64 MB. If your backup Proficy Machine Edition project uses heavy graphical animation or large historical trend logs exceeding 30 MB, downloading it to a VSI unit will throw an “Out of Memory” compiler error or cause Windows CE runtime crashes.
- PRO TIP (Preventing Phantom Touch Inputs): When installing the unit into an enclosure door, tighten the panel mounting clamps in an alternating cross-pattern using hand tools only. Over-torquing the corner brackets warps the outer frame, exerting continuous mechanical stress on the resistive touchscreen layer—registering as an uncalibratable “ghost touch.”
- ⚠️ Serial Jumper/Software Configuration: The single serial port is shared between RS-232 and RS-485 modes. Do not rely solely on software settings in Proficy—verify that your wiring harness matches the pinout specification for the selected mode, or you risk blowing out the internal optocouplers during RS-485 4-wire operation.
Dynamic FAQ
Q: Can I upgrade the internal memory on the IC754VSI12CTD to match a VSF model?
A: No, the 32 MB DRAM and 32 MB Flash are surface-mounted directly to the mainboard and cannot be expanded with RAM modules. Additional storage for data logging can, however, be added via the CompactFlash slot or USB host port.
Q: How do I back up the runtime project directly from the QuickPanel?
A: If the original developer enabled the “Uploadable” option during the initial transfer, you can connect via Proficy Machine Edition over Ethernet or serial to upload the compiled runtime file back to your PC.
Q: Does this unit support direct connection to non-GE PLCs?
A: Yes. The QuickPanel View platform includes native Windows CE drivers for major protocols including Modbus TCP, Modbus RTU, Allen-Bradley DF1/EtherNet/IP, and Siemens MPI/PPI.
Q: What is the standard warranty on bench-tested New Surplus units?
A: All units are fully tested in our facility and ship with a comprehensive 12-month replacement warranty.
