Description
Product Introduction & Engineering Value
Managing stable reference voltages across legacy Speedtronic control racks is critical to preventing sudden fuel valve excursions or trip conditions. The GE IC3600EPSA1 serves as a dedicated voltage regulator card within Mark I and Mark II turbine management systems. It conditions incoming bus power, dampens electrical transients, and maintains steady reference levels for downstream analog monitoring loops.
Constructed with discrete, military-grade passive components and heavy-duty PCB traces, this board withstands decades of thermal cycling near generator enclosures. Front-accessible potentiometers allow fine-tuning of regulation setpoints directly on the rack, providing reliable, drop-in replacement capability when servicing aging heavy-duty gas turbine controls.
Technical Specifications
- System Compatibility: GE Speedtronic Mark I & Mark II Turbine Control Racks
- Board Classification: Analog Voltage Regulator / Power Supply Conditioning Card
- Output Adjustment: 2x Front-Facing Multi-Turn Trimmer Potentiometers (Flat-head adjustment)
- Amplification & Switching: Dual circular TO-39 metal-can transistors and dark blue discrete power transistors
- Card Interconnect: 25-Pin Right-Angle Male Metal Edge Connector
- Filtering Components: High-grade polypropylene film capacitors paired with an axial electrolytic storage capacitor
- Protection Circuitry: High-current blocking diodes for reverse polarity and spike suppression
- Operating Ambient: Designed for industrial control room/cabinet deployment (0°C to 60°C)
Field Application & The “Trench” Experience
During a planned outage at a peaking power station running a Frame 7 gas turbine, technicians noticed severe drift on the main fuel valve positioner loop. The legacy Mark II control panel showed intermittent reference voltage fluctuations across the control card bus. A swap with an untested spare failed to hold setpoint. Our team supplied a fully bench-certified IC3600EPSA1 board. Once installed into the card cage, the field instrument tech adjusted the two onboard potentiometers to match the loop calibration specs, stabilizing the 10V reference and allowing successful turbine light-off before peak demand hours.
Niche Application Scenarios:
- Heavy-Duty Gas Turbine Fuel Control: Regulating reference voltages for startup, speed, and exhaust temperature control loops.
- Steam Turbine Governor Racks: Providing clean DC rails to electro-hydraulic servo valve (EHSV) driver cards.
- Legacy Power Generation SCADA Interfaces: Safeguarding sensitive analog sensor feedback channels from transient supply spikes.
Transparency SOP: QA & Testing
- Visual Component Inspection: Every card undergoes microscopic check for PCB trace delamination, dried electrolytic capacitors, diode leg corrosion, or damaged potentiometer adjustment screws.
- Component-Level Passive Analysis: Inductance, capacitance, and resistance (LCR) testing is executed on all capacitors and power resistors to ensure they meet original GE factory tolerances.
- Powered Backplane Simulation: The card is installed in a powered Speedtronic test fixture to measure output voltage regulation across varying input loads and input line sweeps.
- Thermal Stress & Drift Test: The board is run under power in a thermal chamber while monitoring trimmer potentiometer stability to verify zero voltage drift over time.

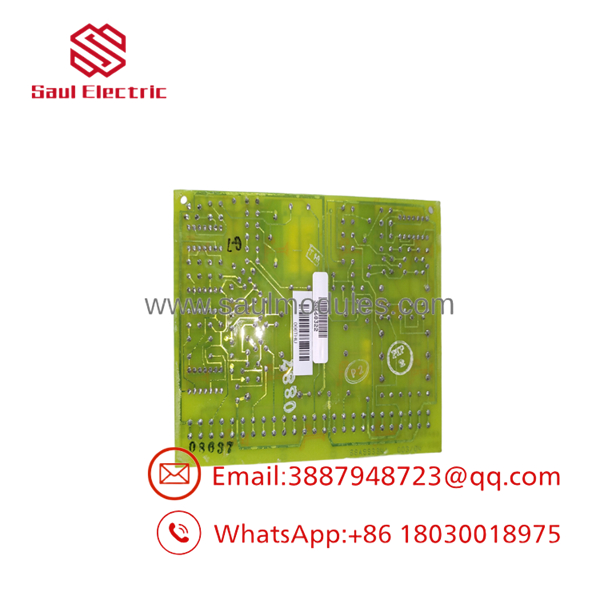

- IC3600EPSA1

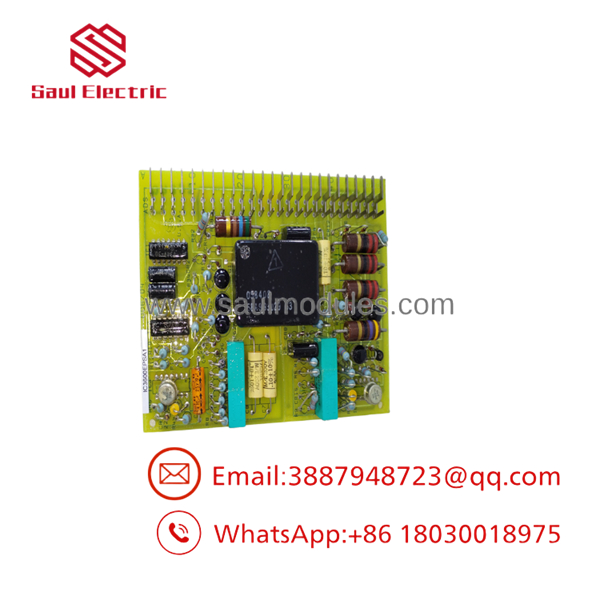

- IC3600EPSA1
The Veteran’s Tech Trap Guide
- ⚠️ Potentiometer Lock Drift: The two front-facing potentiometers control critical voltage references. Never insert a replacement IC3600EPSA1 board straight out of the box without taking baseline voltage measurements at the test points—potentiometers can shift during shipping or differ from your cabinet’s specific calibration values.
- PRO TIP (Card Edge Connector Cleaning): The 25-pin metal edge prongs tend to build up oxide layers after sitting in storage for years. Before sliding the board into the Mark I/II card cage, clean the connector prongs with an electrical contact cleaner and a lint-free swab to prevent intermittent contact resistance.
- ⚠️ Capacitor Age Hazard: Because these boards were manufactured during the Mark I/II era, original electrolytic capacitors can leak or lose capacitance over time. Ensure any surplus stock you purchase has undergone capacitor health testing or re-capping to prevent instantaneous short circuits on power-up.
Dynamic FAQ
Q: Is the IC3600EPSA1 compatible with Mark IV or Mark V Speedtronic systems?
A: No. The IC3600 series architecture is engineered specifically for GE Mark I and Mark II analog control frames. Mark IV and V systems utilize the DS3800 and IS200 series digital board families.
Q: How do I adjust the voltage output on the ?
A: Output levels are adjusted using a small flat-head screwdriver on the two front-mounted variable resistor potentiometers while monitoring test point voltages with a calibrated digital multimeter.
Q: What is the significance of the revision letters (e.g., IC3600EPSA1B)?
A: Revision letters (like ‘B’ or ‘C’) at the end of the part number indicate minor manufacturing or component vendor updates by GE. In most Speedtronic Mark I/II applications, higher revision boards are backward-compatible with earlier revisions.
Q: What warranty is provided with New Surplus or Refurbished units?
A: All units are fully bench-tested and verified under load, backed by a standard 12-month replacement warranty.
