Product Introduction & Engineering Value
As production lines evolve, the original PLC rack often runs out of available I/O long before the controller reaches its processing limits. Expanding the system without redesigning the control architecture becomes the practical solution.
The GE IC693CHS392J is a 10-slot Expansion Baseplate for the Series 90-30 PLC family. It extends local I/O capacity through the Series 90-30 expansion bus while maintaining communication with the primary CPU baseplate. This approach allows additional digital, analog, communication, and specialty modules to be integrated into an existing control system without replacing the processor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Model | IC693CHS392J |
| PLC Family | Series 90-30 |
| Product Type | Expansion I/O Baseplate |
| Number of Slots | 10 |
| Expansion Connector | 25-pin D-type female |
| Expansion Distance | Up to 50 ft (15 m) from the CPU rack |
| Rack Addressing | Rack Number Selection DIP switch |
| Backplane Power Consumption | Approximately 150 mA @ 5 VDC |
| Supported Modules | Most Series 90-30 I/O and option modules |
| Mounting | Panel-mounted industrial control cabinet |
| Intelligent Module Restriction | PCM, ADC, BEM330, and CMM311 must remain in the CPU baseplate. |
Field Application & The “Trench” Experience
During an expansion of a pharmaceutical packaging line, engineers needed twelve additional digital outputs and several analog input channels for new inspection equipment. The existing CPU had sufficient processing capacity, but the original rack was completely occupied.
Rather than replacing the PLC platform, the maintenance team installed an IC693CHS392J expansion baseplate adjacent to the primary rack. Existing logic required only hardware configuration updates, and the additional I/O became available without interrupting the rest of the control architecture. The production upgrade was completed during a planned weekend shutdown, avoiding a costly controller migration.
Typical application scenarios include:
- Automated palletizing systems requiring additional distributed I/O
- Boiler control systems with expanding instrumentation
- Water treatment facilities adding chemical dosing and monitoring loops

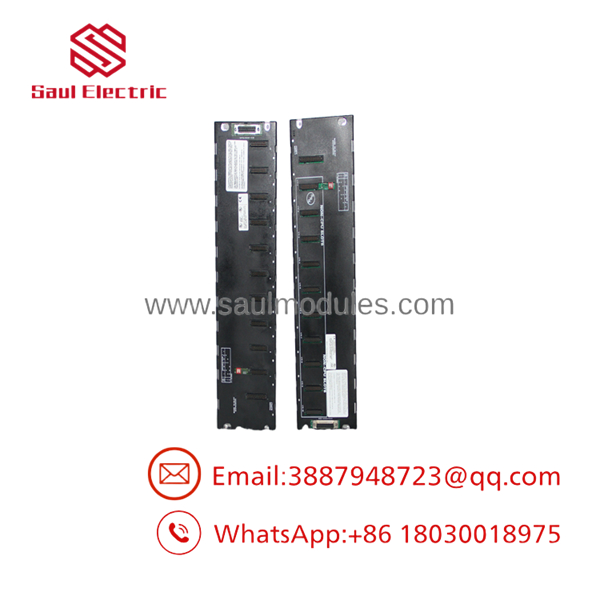

IC693CHS392J

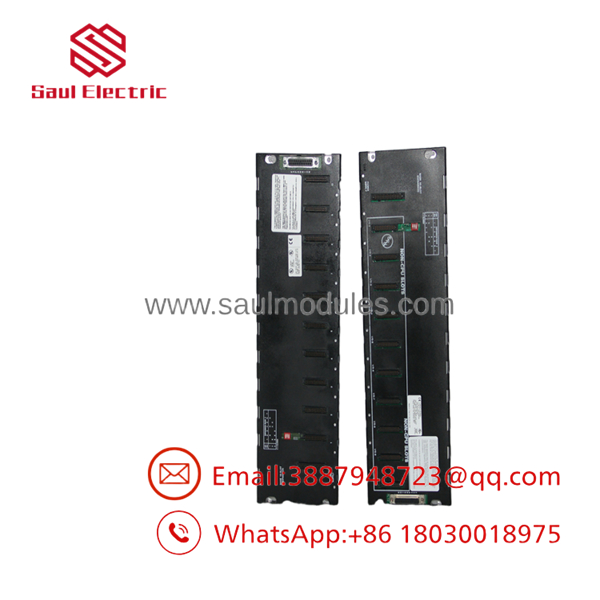

IC693CHS392J

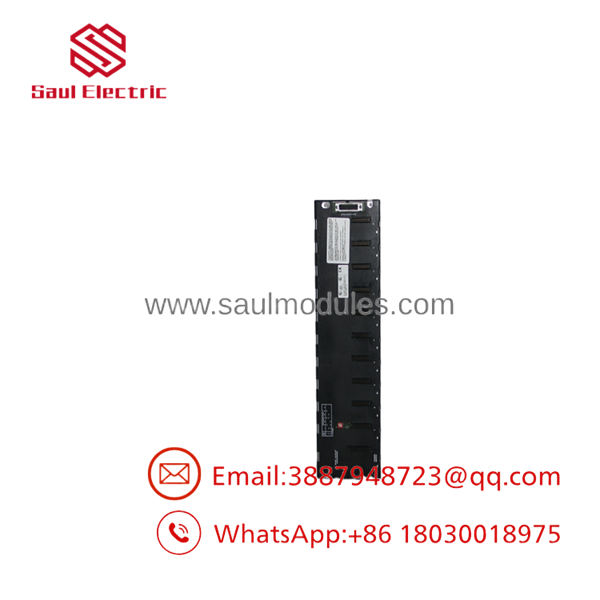

IC693CHS392J
Transparency SOP: QA & Testing
Before shipment, every baseplate is evaluated through a documented inspection process.
- ✔ Verify the complete part number and hardware revision.
- ✔ Inspect slot connectors for bent contacts, oxidation, and mechanical wear.
- ✔ Confirm proper operation of the 25-pin expansion connector.
- ✔ Install a compatible Series 90-30 power supply and multiple I/O modules to verify backplane communication.
- ✔ Verify rack addressing DIP switch operation.
- ✔ Package the unit in ESD-safe protective materials.
For New Surplus inventory, unused condition and labeling are confirmed. Refurbished units undergo additional functional verification before release.
The Veteran’s Tech Trap Guide
⚠️ This Is Not a CPU Baseplate
The IC693CHS392J is an Expansion Baseplate. It cannot operate independently and must be connected to a compatible Series 90-30 CPU baseplate.
⚠️ Check the Rack Number DIP Switch
Incorrect rack addressing is one of the most common causes of missing I/O after installation. Always verify the DIP switch settings before powering the system.
PRO TIP: If only the expansion rack reports communication faults, inspect the 25-pin expansion cable and connector before replacing I/O modules. Damaged cables frequently produce symptoms that resemble multiple module failures.
⚠️ Observe Intelligent Module Restrictions
Modules such as PCM, ADC, BEM330, and CMM311 must remain installed in the CPU baseplate. Installing them in an expansion rack can prevent normal operation.
Dynamic FAQ
Q1. What is the primary purpose of the IC693CHS392J?
It expands the available I/O capacity of a Series 90-30 PLC by adding a 10-slot expansion rack connected to the CPU baseplate through the local expansion bus.
Q2. Can the IC693CHS392J operate without a CPU?
No. It is an expansion baseplate and requires connection to a compatible Series 90-30 CPU baseplate to function.
Q3. How far can the expansion rack be installed from the CPU rack?
The expansion baseplate supports installation up to 50 feet (15 meters) from the CPU baseplate when the appropriate expansion cable is used.
Q4. Can all Series 90-30 modules be installed in this baseplate?
Most I/O and option modules are supported. However, certain intelligent modules—including PCM, ADC, BEM330, and CMM311—must be installed in the CPU baseplate rather than the expansion baseplate.
Q5. What does the “J” revision indicate?
The “J” suffix identifies a later hardware revision within the IC693CHS392 family. Later revisions generally incorporate manufacturing updates and hardware improvements while maintaining compatibility with supported Series 90-30 systems. Always verify compatibility before replacement.
Q6. Are New Surplus units tested before shipment?
Yes. New Surplus units are inspected for unused condition, connector integrity, and part number verification. Refurbished units undergo additional functional testing in a compatible Series 90-30 test system before shipment.
