Product Introduction & Engineering Value
High-voltage field signals deserve careful handling. Connecting 240 VAC devices directly into a PLC system requires electrical isolation, predictable response times, and dependable diagnostics to avoid nuisance trips and difficult troubleshooting.
The GE IC693MDL231 is an 8-point isolated 240 VAC discrete input module for the Series 90-30 PLC platform. Each channel has its own common terminal and is electrically isolated, allowing reliable monitoring of pushbuttons, limit switches, auxiliary contacts, and proximity switches operating from standard industrial AC control circuits.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Model | IC693MDL231 |
| Product Type | AC Discrete Input Module |
| PLC Platform | Series 90-30 |
| Number of Inputs | 8 isolated channels |
| Rated Input Voltage | 240 VAC, 50/60 Hz |
| Input Voltage Range | 0–264 VAC |
| Input Current | 15 mA typical at rated voltage |
| ON-State Voltage | 148–264 VAC |
| OFF-State Voltage | 0–40 VAC |
| ON Response Time | 30 ms maximum |
| OFF Response Time | 45 ms maximum |
| Isolation | 1500 VAC RMS field-to-logic; 500 VAC RMS between inputs |
| Backplane Power Consumption | 60 mA @ 5 VDC (all inputs ON) |
| Status Indicators | Eight individual green LEDs |
| Mounting | Any I/O slot in a 5-slot or 10-slot Series 90-30 baseplate |
Field Application & The “Trench” Experience
During the modernization of a cement grinding plant, the original 240 VAC field wiring for conveyor limit switches and emergency stop contacts was still in excellent condition. Replacing every field device with low-voltage hardware would have required several days of rewiring and production downtime.
Instead, maintenance engineers installed an IC693MDL231, allowing the existing 240 VAC control circuits to interface directly with the Series 90-30 PLC. Only the module configuration and terminal wiring changed inside the cabinet. Production resumed after a single maintenance shift.
Typical applications include:
- Conveyor limit switch monitoring in aggregate processing
- 240 VAC motor starter auxiliary contact feedback
- Boiler burner permissive and safety interlock circuits

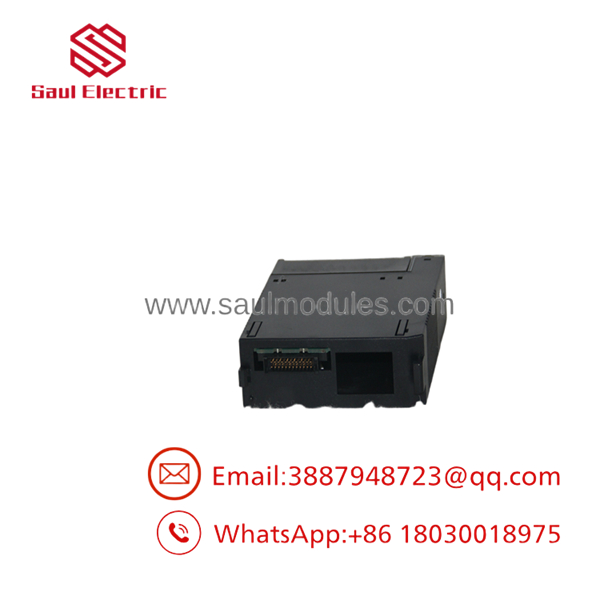

IC693MDL231

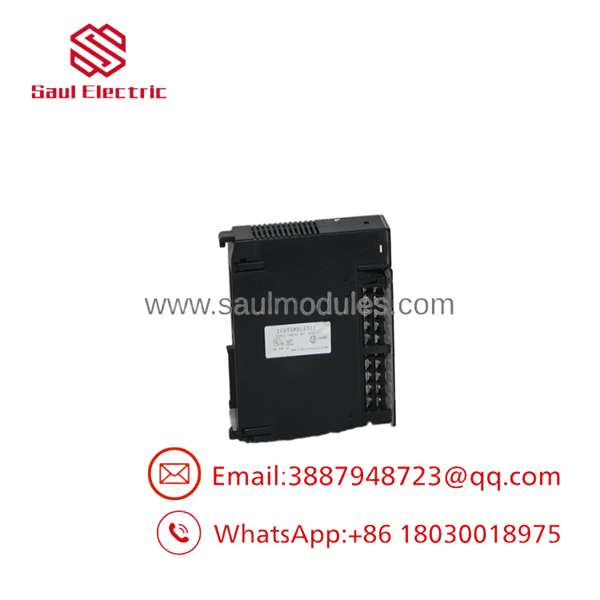

IC693MDL231

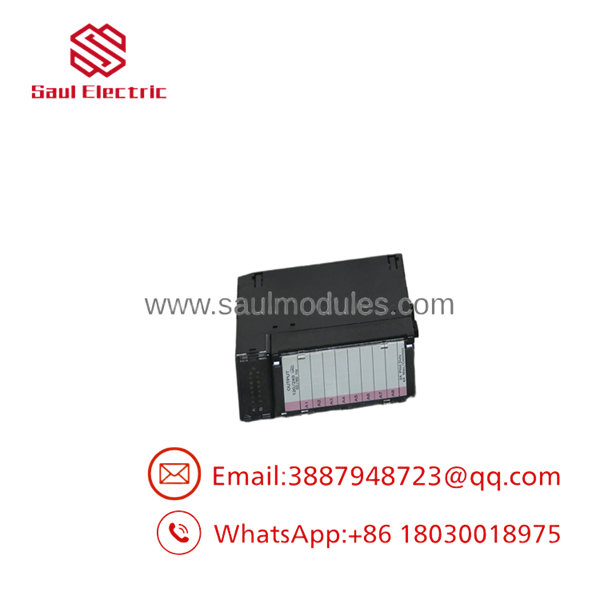

IC693MDL231
Transparency SOP: QA & Testing
Before shipment, every module is subjected to documented inspection and functional verification.
- Confirm the complete catalog number and hardware revision.
- Inspect the terminal block, backplane connector, housing, and LED assembly.
- Verify channel isolation and insulation resistance.
- Simulate 240 VAC inputs on all eight channels and confirm corresponding PLC status bits.
- Check LED operation, response timing, and backplane communication.
- Package the module in ESD-safe materials with protective industrial packaging.
New Surplus modules are inspected to verify unused condition. Refurbished units additionally undergo operational testing under rated AC input conditions.
The Veteran’s Tech Trap Guide
⚠️ This Module Is AC Only
The IC693MDL231 requires an AC input source. It cannot correctly detect DC voltage, even if the voltage level appears similar. Attempting to use 24 VDC or 125 VDC field signals will result in incorrect input status.
⚠️ Watch the ON Threshold
The module recognizes an ON state only when the input reaches approximately 148 VAC or higher. Low-voltage control transformers or excessive voltage drop can cause intermittent input detection.
PRO TIP: Each input has its own common terminal. This simplifies isolated field wiring but often surprises technicians accustomed to modules that share a common return.
⚠️ Don’t Ignore Response Time
With 30 ms ON and 45 ms OFF response times, this module is intended for standard industrial control signals—not high-speed counting or pulse detection. Fast encoder signals require dedicated high-speed input modules.
Dynamic FAQ
Q1. What is the primary function of the IC693MDL231?
It provides eight isolated 240 VAC discrete input channels for monitoring field devices such as pushbuttons, selector switches, relays, and limit switches in a Series 90-30 PLC system.
Q2. Can the IC693MDL231 accept DC voltage inputs?
No. This module is designed exclusively for 240 VAC, 50/60 Hz input signals and should not be connected to DC-powered field devices.
Q3. Is each input electrically isolated?
Yes. Each of the eight channels includes an individual common terminal, with 1500 VAC RMS isolation between the field wiring and the PLC logic, plus 500 VAC RMS isolation between input channels.
Q4. Which field devices are commonly connected to this module?
Typical devices include 240 VAC pushbuttons, limit switches, auxiliary relay contacts, motor starter feedback contacts, and AC proximity sensors.
Q5. Can the module be installed in any Series 90-30 rack?
Yes. The may be installed in any available I/O slot on compatible 5-slot or 10-slot Series 90-30 baseplates.
Q6. Are New Surplus modules tested before shipment?
Yes. Every New Surplus module is inspected for correct identification, connector integrity, LED operation, and physical condition. Refurbished units additionally complete functional input verification and communication testing before shipment.
