Description
Product Introduction

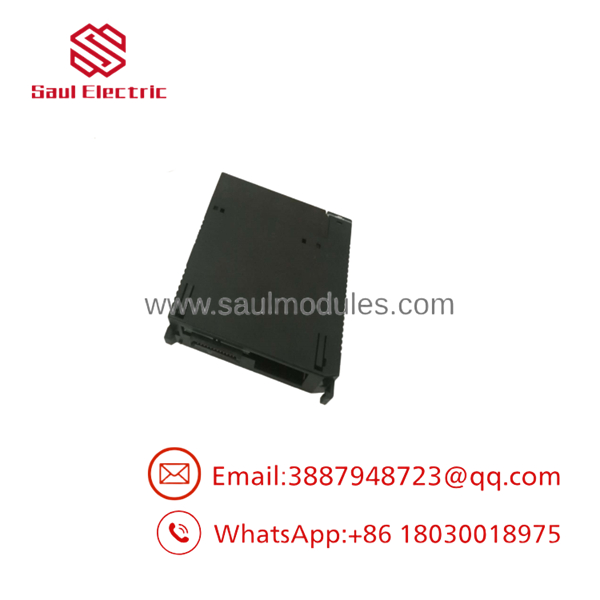

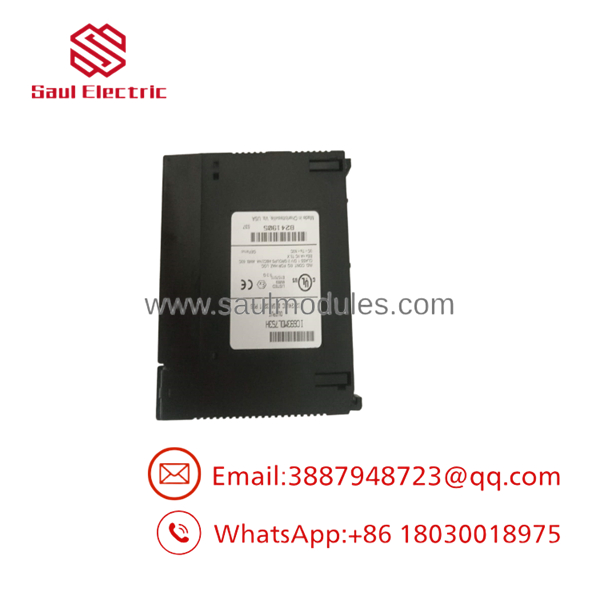

The GE Fanuc IC693MDL753 is a 32-point 12/24 Volt DC Positive Logic (Sourcing) Discrete Output Module engineered for GE Series 90-30 PLC systems. Occupying a single option slot on any CPU, expansion, or remote baseplate, it provides double the density of standard 16-point cards, maximizing panel space by controlling up to 32 independent DC field loads.
Organized into four isolated groups of 8 points (Groups A, B, C, and D), the IC693MDL753 provides solid-state sourcing outputs up to 0.5 Amps per point. Unlike lower-density cards using screw terminal blocks, this high-density module features two front-facing 24-pin Fujitsu/ribbon connectors. Its optical isolation shields sensitive rack electronics, while dual 16-LED arrays display active point status for both upper (A/B) and lower (C/D) channel banks.
Key Technical Specifications
| Parameter | Specification |
| Full Part Number | IC693MDL753 (Covers all revision levels) |
| Module Type | High-Density Discrete 12/24VDC Output (Positive Logic / Sourcing) |
| Number of Points | 32 Points (4 isolated groups of 8 points: A, B, C, D) |
| Operating Voltage Range | 12 to 30 VDC (+12/24 VDC nominal) |
| Output Current Rating | 0.5 A max per point (3.0 A max total per group / 12.0 A max per module) |
| Output Type | Solid-state sourcing transistors |
| Response Time | 0.5 ms maximum ON delay / 0.5 ms maximum OFF delay |
| Inrush Current | 2 A maximum for 10 ms |
| Backplane Current Draw | 260 mA at 5 VDC (from Series 90-30 baseplate power supply) |
| Isolation | 1500V RMS between field side and backplane; 500V RMS between groups |
| Field Wiring Connector | Dual 24-pin connectors (requires cable assemblies or terminal block adapters) |
Application Scenarios & The “Trench” Experience
At 4:20 AM in a high-speed pharmaceutical packaging facility, a matrix of 16 reject pushers and 16 lane diverters suddenly froze mid-cycle. While the CPU called for ejection routines, no voltage appeared at the reject solenoids—an unsuppressed voltage spike from a failing solenoid valve had blown out the output transistors on Group C of the installed high-density module. With bottles piling up on the main feed screw, the entire packaging line sat locked out, accruing over $5,000 per hour in idle production costs.
Application Scenarios
- High-Density Solenoid Arrays: Controls up to 32 pneumatic directional control valves or manifold blocks from a single rack slot.
- Complex Material Handling: Actuates large banks of diverters, sorters, reject gates, and indexing stop pins in automated warehouses.
- Machine Status Indicator Matrices: Drives complete control panel annunciator grids, stack lights, and status lamps across complex workstations.
- Multi-Channel Interposing Relays: Provides high-density sourcing logic signals to external relay terminal blocks driving high-power field actuators.
Field Case Study
A automotive stamping plant in Illinois suffered a total station shutdown when a pinched wiring harness shorted out multiple output channels on their legacy IC693MDL753 card, halting a 32-station transfer die assembly line. We dispatched a fully bench-tested, pre-cleared surplus IC693MDL753 module via hot-shot courier. The site technician killed rack power, unclipped the two 24-pin pre-wired cable connectors, popped the module out of option slot 5, snapped in the replacement unit, and reattached the quick-connect cables. The transfer press was restored to full 32-axis operation in under 10 minutes of arrival.
IC693MDL753
IC693MDL753
Transparency SOP: Quality Assurance & Testing
We test every IC693MDL753 unit under live physical load on active GE test racks before it enters our ready-to-ship inventory.
- Inbound Visual Verification: Inspection for casing cracks, bent backplane pins, pin-header integrity on both 24-pin front connectors, and OEM tag authenticity.
- Backplane Power-On Check: Slotted into an active GE Series 90-30 rack (IC693CHS392 driven by an IC693PWR330 supply) to verify backplane initialization and LED self-test routines.
- 32-Point Full Load Switching Test: Applied 24VDC field power across all 4 groups using custom breakout boards; switched a 0.5A inductive load across all 32 channels individually and simultaneously to confirm clean transistor switching and LED response.
- Thermal Soak & Stress Test: Executed continuous high-frequency output cycling under full 3A per group current load for 4 hours inside a thermal test chamber to ensure zero transistor thermal degradation.
- ESD Sealing & Final QC: Cleaned, connectors inspected, and sealed inside heavy-duty ESD shielding with custom impact-resistant protective foam packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Requires High-Density Connectors / Wiring Cables: Unlike 8-point and 16-point cards that use standard 20-terminal screw blocks, the uses two 24-pin connectors. You must use pre-wired cable assemblies (such as IC693CBL327/328) or DIN-rail terminal block breakout kits (such as IC693ACC337) to wire field devices.
- ❗ Never Hot-Swap on the Baseplate: The GE Series 90-30 backplane is not hot-swappable! Inserting or pulling the while the baseplate power supply is energized can arc backplane pins, ruin internal backplane transceivers, or trigger a CPU hardware fault. Always kill main rack power first.
- ⚠️ Verify All 4 Group Power Commons (+24VDC): The 32 output channels are split into 4 independent groups of 8 (A, B, C, D). Each group requires its own external +12/24VDC power feed and DC common connection via the 24-pin connectors. If points 17–24 are dead while 1–16 work, check the external power supply connection dedicated to Group C.
- ❗ Always Install Flyback Diodes on Inductive Loads: When driving inductive loads (solenoid coils, relay coils, magnetic brakes), always place a reverse-biased flyback diode (such as a 1N4004) directly across the coil terminals. Inductive back-EMF spikes can exceed transistor breakdown voltages and permanently destroy output channels.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the GE Fanuc hot-swappable?
A: No. You must turn off main power to the Series 90-30 baseplate before removing or installing the module to prevent backplane or chip damage.
Q: Does the come with the wiring terminal block?
A: No. Standard screw terminal blocks are not used on 32-point modules due to spacing. The requires 24-pin connector cables or field wiring breakout blocks (sold separately or transferred from your existing installation).
Q: What is the main difference between IC693MDL741 and ?
A: The IC693MDL741 is a 16-point sourcing output module with a 20-terminal screw block, whereas the is a 32-point high-density sourcing output module utilizing dual 24-pin connectors to double slot capacity.
Q: How do the status LEDs work on the 32-point module?
A: The front panel includes a dual-bank LED display with an A/B switch or split layout that allows you to monitor the active ON/OFF status of all 32 output channels in real time.
Q: What warranty coverage comes with this surplus output card?
A: Every module comes backed by a full 12-month replacement warranty. All units are authentic GE Fanuc surplus equipment, thoroughly inspected, cleaned, and bench-tested under live 32-channel 24VDC loads prior to shipping.
