GE IC693NIU004 Series 90-30 Ethernet Network Interface Unit (NIU)

Description

Product Introduction

The GE Fanuc IC693NIU004 is an Ethernet Network Interface Unit (NIU) designed for GE Series 90-30 PLC architectures. Installed directly into Slot 1 (the CPU slot) of a Series 90-30 baseplate, the NIU004 transforms the local rack into an intelligent remote I/O drop on an Ethernet network. This eliminates the cost and complexity of placing full PLC CPUs at remote field stations.

Utilizing Ethernet Global Data (EGD) and SRTP protocols over an attached Ethernet daughterboard or transceivers, the IC693NIU004 continuously gathers status data from local discrete and analog I/O modules and streams it back to a master controller or SCADA host over standard TCP/IP. It also features dual RS-232/RS-485 serial ports for local configuration, operator interfaces, or serial field devices.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

At 2:40 AM on a remote municipal water treatment skid, the master PLC lost communication with the chemical dosing drop over 800 feet away. The network status indicator went completely dark on the remote station—a line surge had damaged the processing chip on the legacy NIU module controlling the remote rack. Without active flow and dosing feedback, the main PLC defaulted to a safety shutdown, halting clean water processing.

Application Scenarios

• Distributed Field I/O Stations: Links remote valve clusters, tank level transmitters, and pump controls to a centralized master PLC via standard Ethernet.
• SCADA / HMI Direct Telemetry: Connects remote station I/O directly to plant-wide Ignition or Wonderware SCADA systems using EGD messaging without a CPU script.
• Modular OEM Equipment Drops: Enables machine builders to manufacture self-contained sub-assemblies (e.g., chillers, conveyors) that plug into a master PLC network.
• Legacy Serial-to-Ethernet Bridge: Upgrades old serial-based remote I/O drops (SNP/CCM) to high-speed TCP/IP infrastructure.

Field Case Study

A chemical processing plant in Louisiana experienced a total remote rack drop on their offsite tank farm when an lightning-induced ground loop fried their legacy IC693NIU004 card. The master control room lost telemetry on 48 tank level switches and temperature transmitters, threatening production scheduling. We dispatched a bench-tested, pre-cleared surplus IC693NIU004 module via overnight courier. The site technician powered down the remote baseplate, swapped the card in Slot 1, downloaded the saved node configuration via Proficy Machine Edition over the serial port, and fully restored Ethernet communications within 20 minutes.

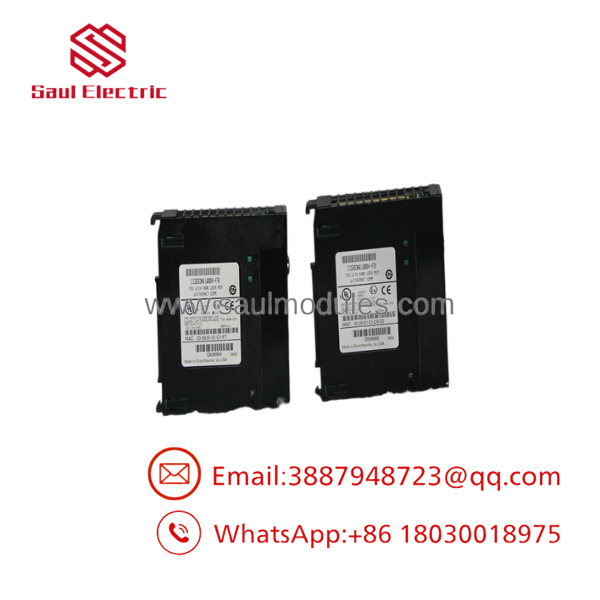

IC693NIU004

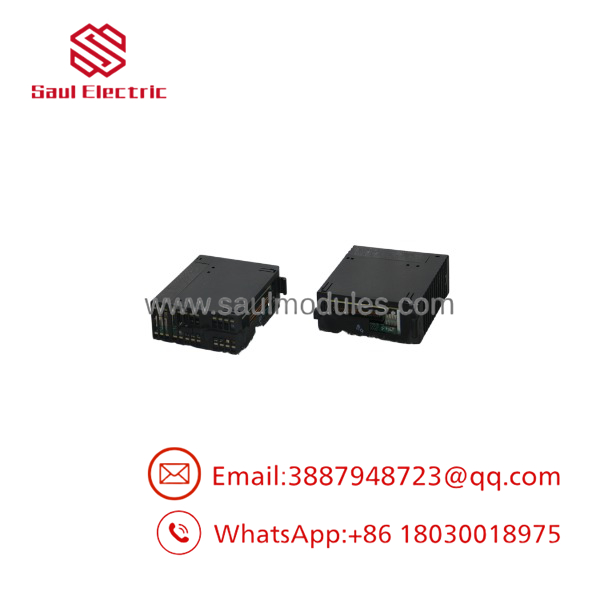

IC693NIU004

Transparency SOP: Quality Assurance & Testing

We test every IC693NIU004 unit under live network traffic on active GE test racks before it enters our ready-to-ship inventory.

1. Inbound Visual Verification: Inspection for casing cracks, backplane pin integrity, daughterboard connection header alignment, and serial port connector wear.
2. Backplane & CPU Slot Verification: Slotted into Slot 1 of a GE Series 90-30 baseplate (IC693CHS391 driven by an IC693PWR330 power supply) to confirm power-up, module POST (Power-On Self-Test), and baseplate bus master control.
3. Ethernet Communication & EGD Test: Attached an Ethernet transceiver and configured EGD exchange tasks; transmitted discrete and analog data streams continuously to a host master CPU to verify 0% packet loss.
4. Dual Serial Port Diagnostics: Verified loopback communications and configuration uploads across both Port 1 (RS-232) and Port 2 (RS-485) using Proficy Machine Edition over SNP protocol.
5. ESD Sealing & Final QC: Memory cleared to factory defaults, module sealed in anti-static ESD shielding, and packed into custom impact-resistant protective foam packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Must Be Installed in Slot 1 Only: The is a backplane master and must be installed in Slot 1 (the CPU slot) of the Series 90-30 baseplate. Placing it in an option slot (Slots 2 through 10) will prevent the rack from powering up or communicating with I/O modules.
• ❗ Never Hot-Swap on the Baseplate: The GE Series 90-30 backplane is not hot-swappable! Inserting or removing the while the baseplate power supply is energized will arc backplane pins and cause severe electrical damage to the module and baseplate logic bus. Always turn off main rack power first.
• ⚠️ Store Your NIU Configuration: The NIU004 holds IP addresses, subnets, and EGD exchange tables in hardware memory. When replacing a failed card, you must reload the node configuration using Proficy Machine Edition (or Logicmaster) over the serial configuration port or Ethernet connection.
• ❗ Check 5V Power Supply Margin: The draws a significant 870 mA from the 5VDC backplane bus. Ensure your power supply (e.g., IC693PWR330) has sufficient capacity to power the NIU card along with all installed analog and discrete I/O modules in the rack.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE Fanuc hot-swappable?

A: No. Power to the Series 90-30 baseplate must be completely turned off before removing or installing the module to prevent permanent electronic damage.

Q: Does the require a PLC CPU in the same rack?

A: No. The NIU004 acts as the rack controller. It manages all local I/O modules in the rack and sends that I/O data over Ethernet to a master PLC or SCADA system.

Q: How do I assign an IP address to a replacement ?

A: You can set the IP address by connecting a programming PC running Proficy Machine Edition or VersaPro to serial Port 1 (RS-232) or Port 2 (RS-485) and downloading the hardware configuration file.

Q: What is the primary difference between an NIU and a standard Ethernet module (e.g., IC693CMM321)?

A: A standard Ethernet module (CMM321) is an option card that sits in a rack controlled by a local CPU. The NIU (NIU004) sits in the CPU slot and replaces the CPU entirely, converting the rack into a dedicated remote I/O drop.

Q: What warranty coverage comes with this surplus NIU module?

A: Every module comes backed by a full 12-month replacement warranty. All units are authentic GE Fanuc surplus equipment, thoroughly inspected, cleaned, and bench-tested under live Ethernet data traffic prior to shipment.
