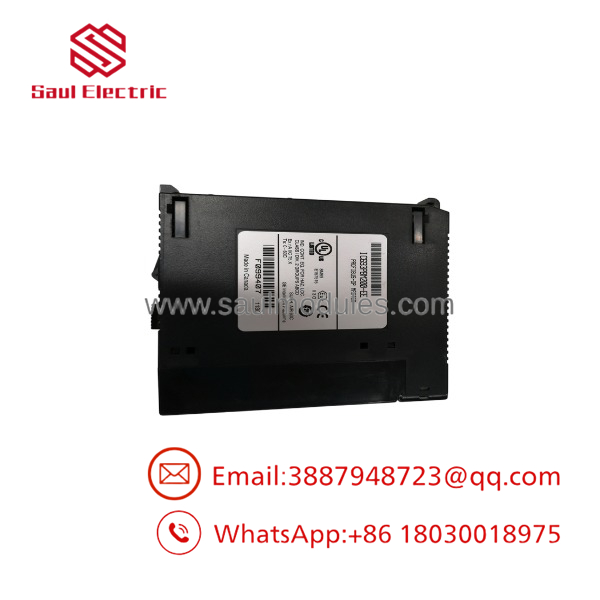

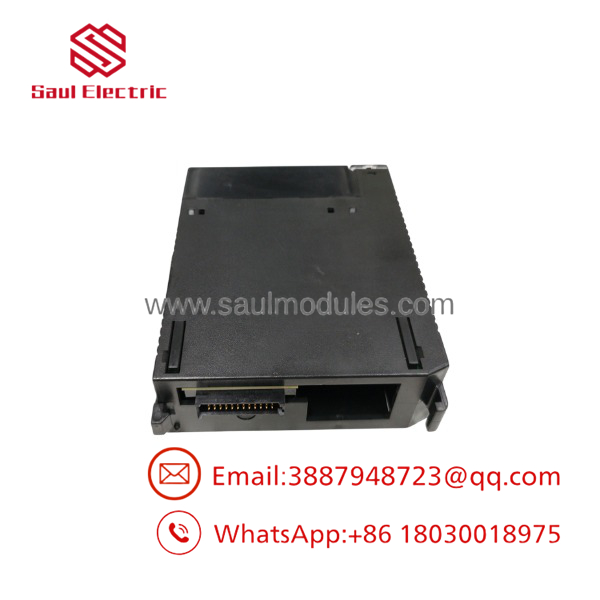

GE IC693PBM200-FE Series 90-30 PROFIBUS DP Master Module

Description

Product Introduction

The GE Fanuc IC693PBM200-FE is a high-performance PROFIBUS DP Master Module engineered for the GE Series 90-30 PLC family. Occupying a single option slot on any CPU, expansion, or remote baseplate, it enables high-speed data exchanges between the Series 90-30 CPU and distributed PROFIBUS DP slave devices such as VFDs, remote I/O blocks, valve manifolds, and instrumentation.

The revision “-FE” designation represents an updated hardware and firmware spin of the IC693PBM200 series. It features optimized memory handling for high-density I/O configurations, enhanced RS-485 transceiver noise rejection, and full compatibility with Proficy Machine Edition and PROFIBUS configuration utilities (GSD management).

Key Technical Specifications

Application Scenarios & The “Trench” Experience

At 1:50 AM on an automotive paint and oven conveyor line, the entire fieldbus loop crashed. The “BUS OK” LED on the master card went dark, causing 18 variable frequency drives and 10 remote I/O blocks to go offline simultaneously. A voltage transient on the RS-485 field cable had destroyed the physical transceiver layer on the aging network scanner module. With vehicle bodies sitting idle inside the curing oven, the facility faced extreme scrap costs if the line was not restarted immediately.

Application Scenarios

• Distributed Motor Drives: Connects Series 90-30 controllers to third-party VFDs and soft starters (Siemens, ABB, Danfoss) over a single shielded twisted-pair line.
• Complex Process Skid Automation: Aggregates multi-channel remote I/O drops, flow meters, and control valves across large chemical processing skids.
• Robotic Tooling & Valve Manifolds: Controls high-density pneumatic valve islands (Festo, SMC) on welding and assembly robots.
• Multi-Vendor PLC Bridge: Interfaces GE Series 90-30 CPUs into broader PROFIBUS networks alongside Siemens S7 systems.

Field Case Study

A paper mill in Maine experienced a total machine lockup when an internal hardware fault disabled their legacy IC693PBM200 master module. We dispatched a bench-tested, pre-cleared surplus IC693PBM200-FE card via local hot-shot courier. The site technician turned off rack power, unbolted the DB9 PROFIBUS cable, swapped the module in option slot 3, restored power, and downloaded the existing GSD configuration file via Proficy Machine Edition. The paper machine was fully re-synced and running within 15 minutes of delivery.

IC693PBM200-FE

IC693PBM200-FE

Transparency SOP: Quality Assurance & Testing

We test every IC693PBM200-FE card under active multi-node network traffic on live GE test racks before adding it to our inventory.

1. Inbound Visual Verification: Inspection for casing cracks, bent DB9 connector pins, damaged backplane card-edge connections, and label revision authenticity.
2. Backplane Power-On Check: Slotted into an active GE Series 90-30 baseplate (IC693CHS392 powered by an IC693PWR330) to verify MODULE OK POST execution.
3. High-Speed PROFIBUS Network Sweep: Connected to a multi-node test network featuring remote I/O blocks and drives; swept communication speeds from 9.6 Kbps up to 12 Mbps.
4. Data Throughput & Stress Test: Executed continuous cyclic data exchange and acyclic diagnostic requests for 4 hours to verify zero packet corruption or bus-off trips.
5. ESD Sealing & Final QC: Memory reset to factory defaults, module sealed in heavy-duty ESD shielding, and packed in custom impact-resistant protective foam.

The Veteran’s Tech Trap Guide

• ⚠️ Check DB9 Connector Bus Termination: The PROFIBUS network relies on RS-485 physical signaling and must have active termination turned ON at both physical ends of the segment. Ensure the switch on the PROFIBUS DB9 cable connector at the -FE is set correctly (ON if end of line, OFF if pass-through).
• ❗ Never Hot-Swap on the Baseplate: The GE Series 90-30 backplane is not hot-swappable! Inserting or removing the -FE while the rack power supply is energized can arc backplane pins, damage internal CAN/RS-485 transceivers, or trigger an immediate CPU fault. Always kill rack power first.
• ⚠️ Verify GSD File Hardware Revisions: When swapping older revision cards (-AA, -AB, etc.) with the -FE revision, verify in Proficy Machine Edition that your PROFIBUS configuration parameters and GSD database accurately match the firmware capability level.
• ❗ Proper Shield Grounding is Mandatory: PROFIBUS runs at speeds up to 12 Mbps and is sensitive to ground noise. Ensure the PROFIBUS cable shield is grounded at the cable connector shell and that the PLC baseplate is bonded to a clean earth ground.

Frequently Asked Questions (FAQ for Conversion)

Q: Isuc hot-swappable?

A: No. You must turn off main power to the Series 90-30 baseplate before removing or ihe module to prevent electrical or logic damage.

Q: What is the significance of the “-FE” suffix on this part number?

A: The “-FE” suffix indicates a specific hardware and firmware revision step that provides improved high-speed noise immunity, expanded diagnostic buffer handling, and enhanced compatibility with modern GSD configurations in Proficy Machine Edition.

Q: How many slave dehe scan?

A: The module can manage up to 125 PROFIBUS DP slave nodes (addresses 1 through 125) on a fully segmented network using PROFIBUS repeaters.

Q: Do I need to reprogram ladder logic when replacing an older revision PBM200 with an -FE revision?

A: No. If installed in the same slot with the same network node mapping, no ladder logic changes are required.

Q: What warranty coverage comes with this surplus PROFIBUS card?

ry module comes backed by a full 12-month replacement warranty. All units are authentic GE Fanuc surplus equipment, thoroughly inspected, cleaned, and bench-tested under live 12 Mbps network traffic prior to shipment.
