Product Introduction & Engineering Value
Power supply failures often masquerade as CPU faults, communication errors, or intermittent I/O problems. Before replacing processors or field modules, experienced technicians usually verify the integrity of the PLC power supply because every component in the rack depends on stable internal voltage.

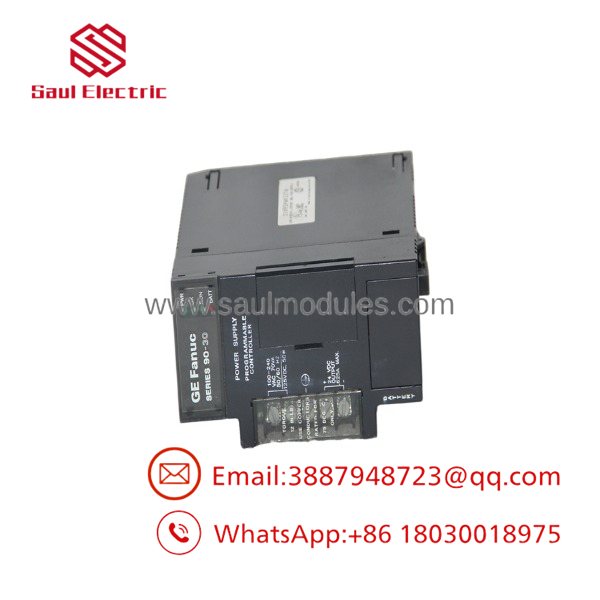

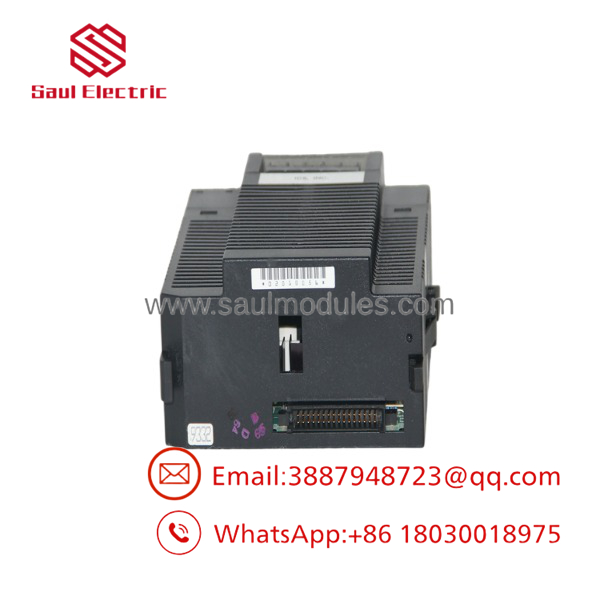

The GE IC693PWR321 is a 30-watt AC/DC power supply for the Series 90-30 PLC platform. It accepts either 120/240 VAC or 125 VDC input and generates regulated +5 VDC, +24 VDC Relay, and +24 VDC Isolated outputs. The module also incorporates overload and short-circuit protection to safeguard both the power supply and connected control hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Model | IC693PWR321 |
| Product Family | Series 90-30 |
| Module Type | Standard AC/DC Power Supply |
| Nominal Input Voltage | 120/240 VAC or 125 VDC |
| AC Input Range | 85–264 VAC |
| DC Input Range | 100–300 VDC |
| Maximum Input Power | 90 VA (AC), 50 W (DC) |
| Total Output Power | 30 W Maximum |
| +5 VDC Output | 15 W Maximum |
| +24 VDC Relay Output | 15 W Maximum |
| +24 VDC Isolated Output | 20 W Maximum (combined total not to exceed 30 W) |
| Isolated 24 VDC Output Current | 0.8 A Maximum |
| Inrush Current | 4 A Peak, 250 ms Maximum |
| Holdup Time | 20 ms Minimum |
| Protective Features | Overvoltage and overcurrent protection with short-circuit shutdown |
| Battery Connector | Supports optional lithium backup battery |
| Installation Position | Leftmost slot of every Series 90-30 baseplate |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
IC693PWR321
IC693PWR321
Field Application & The “Trench” Experience
A wastewater treatment facility experienced random PLC resets every few days. Initial troubleshooting focused on the CPU and communication modules because no obvious power failures had been recorded. After measuring the internal backplane voltages during peak relay activity, technicians discovered the aging power supply was no longer maintaining stable output under load.
Replacing the IC693PWR321 restored normal backplane voltage, eliminated unexpected controller resets, and returned the plant to continuous operation without replacing any CPUs or I/O modules.
Common application scenarios include:
- Municipal water and wastewater treatment control panels
- Material handling systems with multiple relay output modules
- Process automation cabinets requiring isolated 24 VDC power for input modules
Transparency SOP: QA & Testing
Every IC693PWR321 undergoes a documented electrical verification procedure before shipment.
- Confirm catalog number, hardware revision, and terminal block configuration.
- Inspect the enclosure, PCB, cooling components, and backplane connector.
- Apply both AC and DC input power during functional testing.
- Measure all regulated outputs under simulated operating loads.
- Verify overload protection, short-circuit response, and output stability.
- Perform repeated cold-start and warm-start cycles while monitoring voltage regulation.
- Complete final inspection before ESD-safe packaging.
New Surplus units are inspected to verify original OEM condition. Refurbished modules receive additional load testing, thermal verification, and extended operational burn-in before shipment.
The Veteran’s Tech Trap Guide
⚠️ Always Calculate the Total Power Budget
The power supply can produce 30 watts total, not 15 W + 15 W + 20 W simultaneously. The combined load across all outputs must remain within the overall 30 W rating. Exceeding this limit can produce intermittent PLC faults rather than an immediate shutdown.
⚠️ Install It Only in the Leftmost Slot
Unlike standard I/O modules, the IC693PWR321 is designed exclusively for the leftmost baseplate position. Installing it elsewhere prevents proper distribution of backplane power.
PRO TIP: Before replacing a suspected failed CPU, measure the +5 VDC backplane voltage under full operating load. Many seemingly random processor faults originate from a power supply operating near its maximum capacity.
⚠️ Inspect the Backup Battery Connection
The power supply includes a connector for the optional lithium backup battery used for memory retention. During maintenance, verify both battery condition and connector integrity to prevent memory loss after prolonged power outages.
Dynamic FAQ
Q1. What is the primary function of the IC693PWR321?
The supplies regulated internal power for the Series 90-30 PLC, providing +5 VDC, +24 VDC Relay, and +24 VDC Isolated outputs to support CPUs, I/O modules, and auxiliary circuits.
Q2. Which input voltages are supported?
The module accepts 85–264 VAC or 100–300 VDC, making it suitable for facilities using either AC mains or industrial DC control power.
Q3. What is the maximum available output power?
The combined output capacity is 30 watts. Individual output rails have separate limits, but the total power drawn from all outputs must not exceed the overall rating.
Q4. Does the provide isolated 24 VDC output?
Yes. In addition to the relay supply, the module provides an isolated +24 VDC output that can power compatible input modules or approved external 24 VDC circuits, with a maximum output current of 0.8 A.
Q5. Where should the module be installed?
The must always be installed in the leftmost slot of a compatible Series 90-30 baseplate because it distributes operating power to the entire PLC rack.
Q6. How are New Surplus and Refurbished modules verified?
Every unit is inspected for correct model identification, terminal integrity, output voltage accuracy, overload protection, power-up performance, and repeated load testing. Refurbished modules also complete extended burn-in testing to verify long-term operational stability.
