Product Introduction
The GE Fanuc IC693PWR322J is a standard 30-watt power supply module built specifically for Series 90-30 PLC systems. It drops directly into the left-hand slot of any 5-slot or 10-slot Series 90-30 baseplate, supplying regulated power to the CPU, option modules, and I/O cards across the backplane bus.
Unlike higher-capacity models like the IC693PWR330, the PWR322J offers an economical power footprint ideal for low-to-medium density racks. It handles universal AC line inputs from 85 to 264 VAC or high-voltage DC inputs up to 300 VDC. That flexibility makes it a reliable replacement when keeping legacy machinery running without re-engineering the enclosure.
Key Technical Specifications
| Parameter | Value |
| Input Voltage Range | 85 to 264 VAC (47–63 Hz) or 100 to 300 VDC |
| Nominal Input Rating | 120/240 VAC or 125 VDC |
| Maximum Output Power | 30 Watts total output capacity |
| +5 VDC Bus Output | Up to 3.0 Amps (15W maximum) |
| +24 VDC Relay Power | Up to 0.4 Amps |
| +24 VDC Isolated Output | Up to 0.2 Amps (for user field devices) |
| Inrush Current | 4 Amps peak max (250 ms duration) |
| Internal Fuse Rating | 2.0 Amp slow-blow (3AG) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Backplane Slot Location | Dedicated far-left slot on Series 90-30 baseplates |
Application Scenarios & The “Trench” Experience
Few things wreck a shift faster than coming in at 2 AM to a dark power supply LED on an old Series 90-30 rack. When the power module dies, the entire rack goes offline—dropping communications, clearing field outputs, and locking up the line.
- Water/Waste Treatment – Remote Pump Station Baseplates – Powers CPU350 or CPU364 racks handling low-density digital and analog signals across remote serial loops.
- Packaging Lines – Case Packer Control Racks – Provides steady power to high-cycle relay output cards without sagging under backplane thermal loads.
- Material Handling – Conveyor Diverter Panels – Operates reliably in noisy electrical environments where line voltage fluctuations are common.
Field Case Study: A municipal pump house experienced a lightning surge that popped the primary power supply on an essential Series 90-30 expansion rack. The entire station ground fault trip pulled the PLC offline. Swapping in a replacement IC693PWR322J directly into the existing rack restored power to the backplane in under 15 minutes, avoiding thousands in emergency bypass trucking costs.

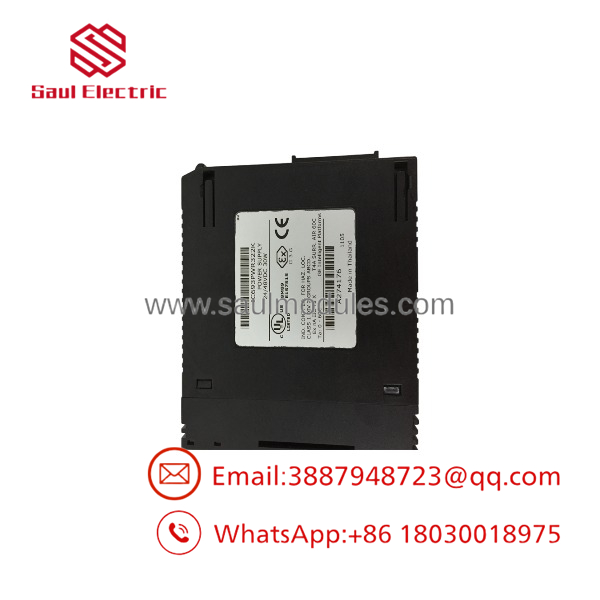

IC693PWR322J

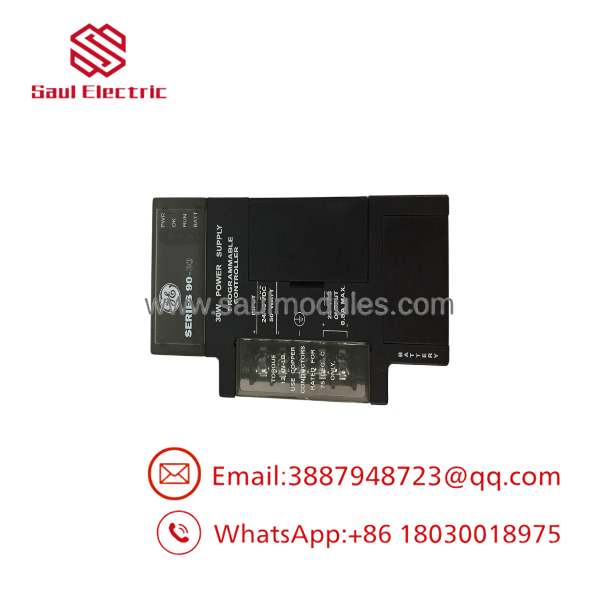

IC693PWR322J
Transparency SOP: Quality Assurance & Testing
We test all legacy GE components before they ship to ensure you do not receive a unit with dried-out capacitors or cracked board traces.
- Inbound Visual Check: Inspect housing snaps, backplane connector pins, terminal blocks, and verify original OEM serial labels.
- Capacitor & Component Screening: Check internal electrolytic capacitors for ESR degradation and inspect the onboard fuse holder.
- Live Rack Rig Testing: Slot the module into a live Series 90-30 test bed with a full CPU and multi-card load.
- Voltage Regulation Under Load: Measure +5 VDC, +24 VDC relay, and +24 VDC isolated buses with a calibrated DMM under 100% rated load (30W).
- Anti-Static Packaging: Seal in ESD-safe bags with desiccant and custom foam packing to prevent transit shock.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Watch Your +5V Power Budget! The PWR322J only outputs up to 15W (3.0A) on the +5 VDC rail. If you are packing a 10-slot rack full of high-density analog modules or communications cards (like Ethernet modules or Genius Bus Controllers), calculate your total current draw first. You might need to step up to the 50W IC693PWR330 to avoid baseline voltage drop faults.
❗ Don’t Forget the Jumper Wire for 120/240 VAC Selection! Check the terminal strip jumper before applying AC power. Putting 240 VAC into a unit wired or jumpered for 120 VAC will instantly blow the internal fuse or destroy the input MOV.
⚠️ Check the Backplane Connector Pins First! Before jamming the module onto the rail, inspect the female backplane socket on the rack. Overzealous technicians often bend pins on old baseplates when forcing power supplies into position.
Frequently Asked Questions (FAQ)
Q: Can I replace an IC693PWR322 with an IC693PWR330?
A: Yes. The IC693PWR330 is the higher-capacity (50W) version. It physically fits the same slot and provides extra headroom on the +5 VDC and +24 VDC rails.
Q: Is the IC693PWR322J hot-swappable?
A: No. Absolutely pull line power before removing or installing this module. Pulling a power supply live will cause backplane arcing and can corrupt logic on the CPU card.
Q: What does the ‘J’ suffix mean in IC693PWR322J?
A: The letter at the end indicates the hardware revision level. Revision ‘J’ includes minor component updates and manufacturing tweaks over earlier revs (A through H), but it remains 100% form, fit, and function compatible with older versions.
Q: What should I check if the power supply LED is completely OFF?
A: First check line voltage at terminals 1 and 2. If voltage is present, remove power and check the internal slow-blow fuse. If the fuse is blown, check for short circuits on the +24V isolated output terminals before replacing it.
Q: Does this unit come with a warranty?
A: Yes. All our new surplus and tested pre-owned GE modules include a full 12-month warranty from the date of purchase.
