Product Introduction & Engineering Value
I’ve seen many legacy Series 90-30 installations where the CPU was blamed for random faults when the actual problem was an overloaded or aging power supply. The IC693PWR331C is intended for applications powered by a 24 VDC control system, providing stable backplane power for CPUs, communications modules, and distributed I/O.
Its 30 W output capacity and multiple regulated outputs make it well suited for expanded PLC racks that require more current than entry-level power supplies can deliver. It remains a common spare in facilities maintaining long-service-life GE Fanuc automation platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Model | IC693PWR331C |
| Product Type | High-Capacity DC Power Supply |
| PLC Family | Series 90-30 |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | Approximately 18–30 VDC (wide-range DC input) |
| Total Output Capacity | 30 W |
| Outputs | +5 VDC, +24 VDC Relay, Isolated +24 VDC |
| Installation Position | Leftmost rack slot |
| Protection | Internal overcurrent and overvoltage protection |
| Application | CPU and I/O backplane power distribution |
Field Application & The “Trench” Experience
A municipal water treatment facility upgraded several remote pumping stations with additional Ethernet communication modules while retaining its existing Series 90-30 PLC hardware. After commissioning, operators noticed intermittent processor resets during simultaneous pump starts.
The investigation showed the original rack power supply had reached its available +5 VDC capacity. Installing an IC693PWR331C restored adequate power margin, stabilized the backplane voltage, and eliminated nuisance CPU faults without requiring a PLC migration.
Typical applications include:
- Water booster pump control panels using 24 VDC control power
- Conveyor control systems with multiple communication interfaces
- Compressor sequencing cabinets requiring expanded Series 90-30 I/O capacity

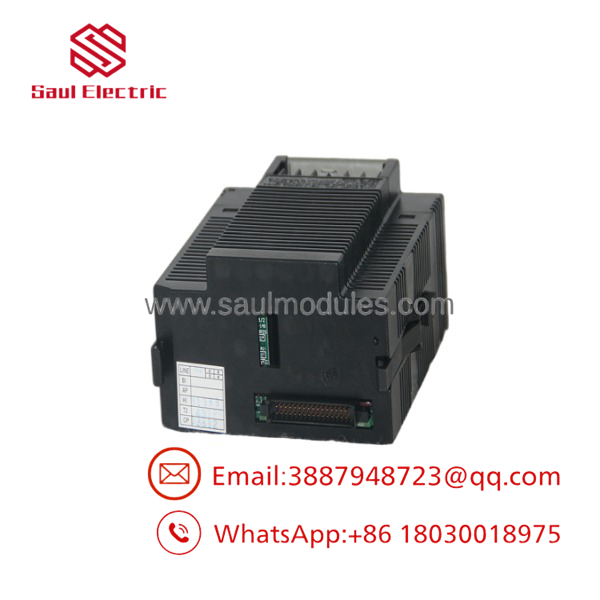

IC693PWR331C

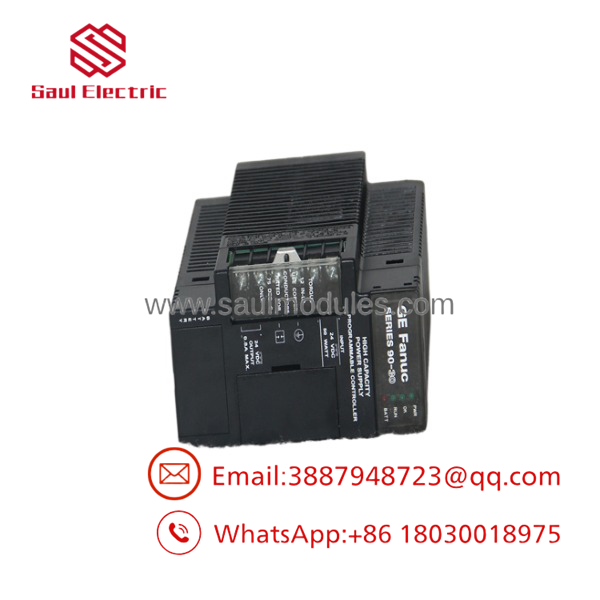

IC693PWR331C
Transparency SOP: QA & Testing
Every New Surplus or refurbished IC693PWR331C is processed through a documented inspection procedure before shipment.
- Visual inspection for housing damage, contamination, and connector wear
- DC input verification across the specified operating range
- Full-load regulation test of the +5 VDC output
- Verification of the relay and isolated +24 VDC outputs
- Burn-in monitoring for voltage stability and thermal performance
- Part number, hardware revision, and label verification
- Anti-static packaging with protective industrial shipping materials
The Veteran’s Tech Trap Guide
⚠️ Calculate the +5 VDC Load—Not Just Total Wattage
Most rack expansion problems originate from exceeding the +5 VDC capacity after adding analog or communication modules. Perform a complete current calculation before replacing the power supply.
⚠️ Confirm the Control Power Source
The IC693PWR331C is designed for DC-powered control panels. Installing it in an AC-powered cabinet without verifying the incoming supply can prevent the PLC from starting.
PRO TIP:
If a power supply has failed after years of operation, inspect the rack for dust accumulation, loose backplane connections, and overloaded auxiliary outputs. Replacing only the power supply may not address the root cause.
⚠️ Don’t Ignore Startup Voltage
A discharged battery bank or undersized DC power source can prevent reliable startup even though the steady-state operating voltage appears acceptable.
Dynamic FAQ
Q1. What PLC family is the IC693PWR331C designed for?
It is designed exclusively for the GE Fanuc Series 90-30 PLC platform and installs in the leftmost slot of the baseplate.
Q2. What input power does this module require?
The is intended for 24 VDC nominal control power with a wide DC operating range suitable for industrial control cabinets.
Q3. Does the module provide auxiliary 24 VDC outputs?
Yes. In addition to the regulated +5 VDC backplane supply, it provides both a relay +24 VDC output and an isolated +24 VDC output for compatible Series 90-30 modules.
Q4. Is New Surplus inventory genuine?
Yes. New Surplus units are unused OEM inventory held in controlled warehouse storage. Each unit is visually inspected and verified before shipment.
Q5. Are refurbished modules electrically tested?
Yes. Refurbished units undergo functional power-up testing, output voltage verification, load testing, and final inspection before release.
Q6. Can the replace earlier IC693PWR331 revisions?
In many Series 90-30 applications, revision C is backward compatible with earlier IC693PWR331 versions. However, the PLC hardware configuration, firmware revision, and application documentation should always be reviewed before installation to ensure compatibility.
