GE IC697MDL750E 32-Point 24/48 VDC Output Module

Description

Product Introduction

The GE IC697MDL750E is a 32-point discrete DC output module designed for the GE Fanuc Series 90-70 PLC platform. It provides high-density switching for field devices such as contactors, solenoid valves, pilot lights, and relay coils in continuous industrial operation.

Compared with lower-density output modules, the IC697MDL750E offers four isolated groups of eight outputs, allowing different field circuits to be segmented while reducing the effect of electrical noise. For legacy Series 90-70 installations, it remains a common replacement when maintaining existing control systems rather than performing a complete PLC migration.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Every maintenance department eventually sees it.

The PLC is healthy. The CPU is running. Inputs are changing correctly. Yet motor starters never energize. Operators blame the PLC program, but the actual problem is a failed output module with one damaged output group after years of switching inductive loads.

That failure can stop an entire production line.

Typical Applications

• Automotive Manufacturing — Controls contactors, conveyor motors, and stack lights where high output density reduces rack space.
• Water & Wastewater — Operates pump starters, chemical dosing valves, and alarm indicators requiring isolated output groups.
• Food & Beverage — Drives pneumatic solenoids and packaging equipment with fast output response.
• Oil & Gas — Controls relay panels and valve actuators throughout compressor and process skids.
• Power Generation — Operates auxiliary equipment including lubrication pumps, cooling fans, and breaker control circuits.

Field Experience

A municipal water treatment plant experienced intermittent failures on several chlorine dosing valves. Initial troubleshooting focused on wiring and field devices because the PLC reported no CPU faults.

After measuring voltage directly at the module terminals, technicians found one output group permanently damaged following repeated short-circuit events. Installing a tested IC697MDL750E restored all valve operation in less than an hour, avoiding an extended interruption to chemical treatment.

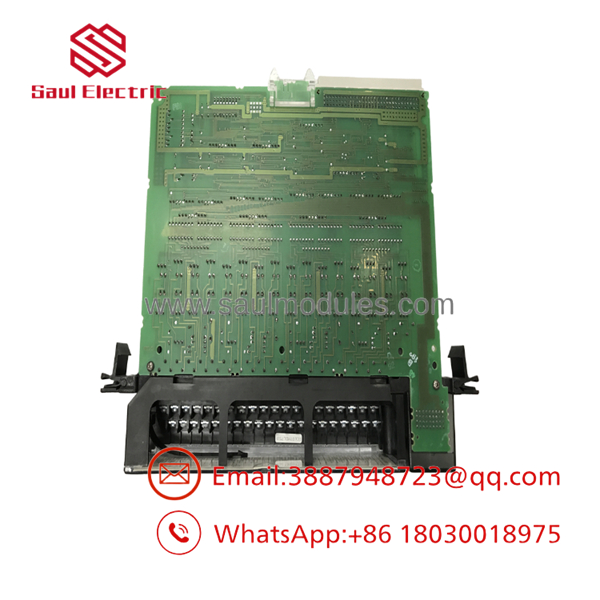

IC697MDL750E

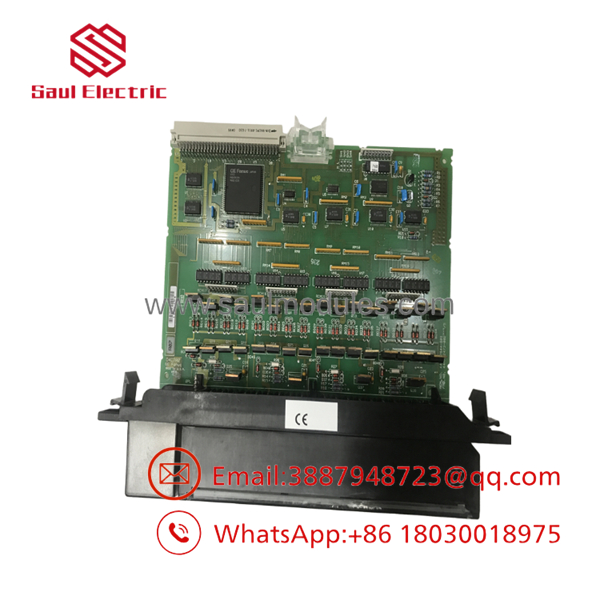

IC697MDL750E

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Series 90-70 racks.

• Inbound Inspection
  • Verify OEM labels, revision level, PCB condition, and connector integrity.
  • Inspect for corrosion, repaired traces, or counterfeit markings.
• Live Rack Testing
  • Install the module in a powered Series 90-70 chassis.
  • Verify proper initialization.
  • Exercise all 32 outputs using a simulated field load.
• Electrical Parameter Checks
  • Confirm output voltage switching.
  • Measure leakage current.
  • Verify isolation between output groups.
  • Check backplane current consumption.
• Firmware & Hardware Verification
  • Confirm module identification.
  • Verify hardware revision.
  • Record diagnostic status during continuous operation.
• Final QC & Packaging
  • Perform final inspection.
  • Clean edge connectors.
  • Package in anti-static materials with impact-resistant protection.
  • Record serial number for shipment traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t exceed the group current rating.

Each output can switch 0.5 A, but each group is limited to 2 A. Four heavily loaded outputs can quietly exceed the group limit even though every individual channel looks acceptable.

❗Take a photo before disconnecting field wiring.

Four output groups mean four commons. Mixing common terminals during installation creates troubleshooting headaches that can last much longer than the replacement itself.

⚠️ Watch inductive loads.

Motor starters, relays, and solenoids generate voltage spikes. Without proper flyback diodes or suppression devices, output transistors age much faster than expected.

❗Don’t assume every failed output means a bad module.

Measure voltage at the field terminal first. We’ve seen blown field fuses, broken terminal blocks, and damaged wiring blamed on perfectly healthy output cards.

Frequently Asked Questions (FAQ)

Q1. Can the be hot-swapped?

No. Series 90-70 output modules were not designed for routine hot replacement. Remove rack power before replacing the module to avoid backplane damage.

Q2. What loads can this module control?

It is intended for 24/48 VDC field devices including relays, contactors, pilot lights, alarm indicators, and solenoid valves. Each output supports up to 0.5 A, with a maximum of 2 A per output group.

Q3. Does this module include output isolation?

Yes. The module provides four isolated output groups, helping reduce electrical interference and allowing separate field power distribution. It also provides 1500 VAC isolation between the outputs and the PLC backplane.

Q4. Is the compatible with every Series 90-70 rack?

It is compatible with standard GE Series 90-70 racks that support discrete I/O modules. Always verify rack configuration, CPU compatibility, and application requirements before installation.

Q5. What warranty is typically available?

Professionally tested New Surplus and refurbished modules are commonly supplied with a 12-month warranty covering normal operating conditions.

Q6. Why is this module less expensive than buying directly from the OEM?

The Series 90-70 platform has been discontinued for many years. Available inventory comes from surplus industrial stock, plant modernization projects, and professionally refurbished equipment. Price reflects the sourcing channel rather than reduced functionality.

Q7. Is this module new or refurbished?

Both conditions are available in the industrial automation market. New Surplus modules are unused legacy inventory. Refurbished modules have undergone inspection, functional testing, and verification before resale. Before purchasing, request the actual hardware revision, functional test records, and photos of the unit you will receive.
