Description
3. Key Technical Specifications
- Part Number: IS200TTURH1CCC (S1DF00Z revision)
- System: GE Mark VI / Mark VIe Speedtronic Turbine Control
- Function: Primary trip and termination board with RTD/thermistor inputs
- Architecture: Triple Modular Redundant (TMR) capable
- Inputs: Supports multiple RTD and thermistor channels for temperature monitoring
- Terminals: 64 positions for field wiring
- Power: 24 VDC nominal
- Mounting: Panel or rack installation in control cabinet
- Application: Gas, steam, and hydro turbine protection systems
- Dimensions: Approx. 320 mm x 305 mm x 35 mm (series typical)
- Weight: Approx. 1.2 kg
- Key Features: High-reliability trip logic interface and signal conditioning
4. Product Introduction & Supply Chain Strategy
The GE IS200TTURH1CCC S1DF00Z is a turbine terminal board serving as the primary interface for trip functions and RTD/thermistor inputs in GE Mark VI Speedtronic turbine control systems. It connects field devices to the control processors in power generation and mechanical drive applications.
Securing this as New Surplus supports effective inventory management for critical turbine assets. It mitigates lead time risks and stock-out incidents on aging Mark VI installations, where OEM availability has become constrained. This approach lowers total cost of ownership by avoiding refurbished risks and unplanned outages while enabling cross-site sharing and planned last-time-buys before further lifecycle progression.
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Implement lock-out/tag-out on all associated turbine control power supplies. Prepare ESD wrist strap, terminal tools, and digital camera. Photograph existing wiring terminations, jumper positions, and board orientation in detail. Confirm the replacement board revision matches system requirements.
Stage 2: Removal De-energize the cabinet. Label and disconnect field wiring carefully to maintain traceability. Remove mounting screws and extract the old terminal board without stressing connectors or bending pins.
Stage 3: Installation (Clone & Seat) Transfer or replicate all jumper and configuration settings exactly from documentation and photos. Align the new IS200TTURH1CCC board and seat it securely in the panel or rack. Reconnect wiring following the original layout and torque specifications.
Stage 4: Power-On & Testing Apply power incrementally. Check 24V rails for stability and proper grounding. Monitor system diagnostics for communication with I/O packs, verify RTD inputs, and test trip logic paths. Perform full functional validation before returning to service.

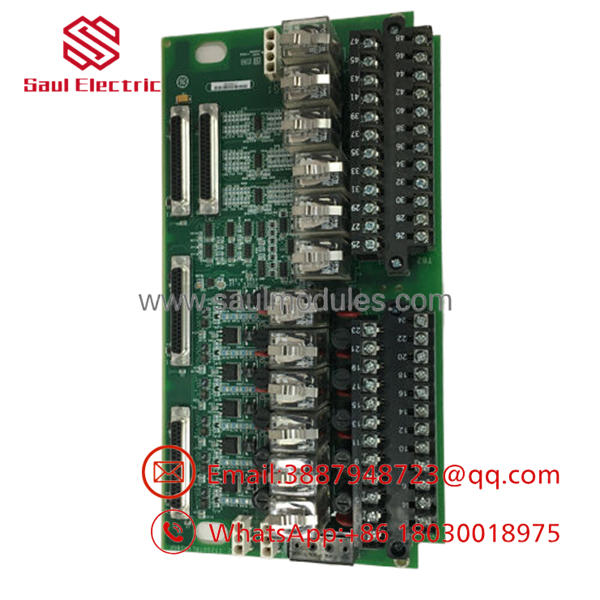

- IS200TTURH1CCC S1DF00Z

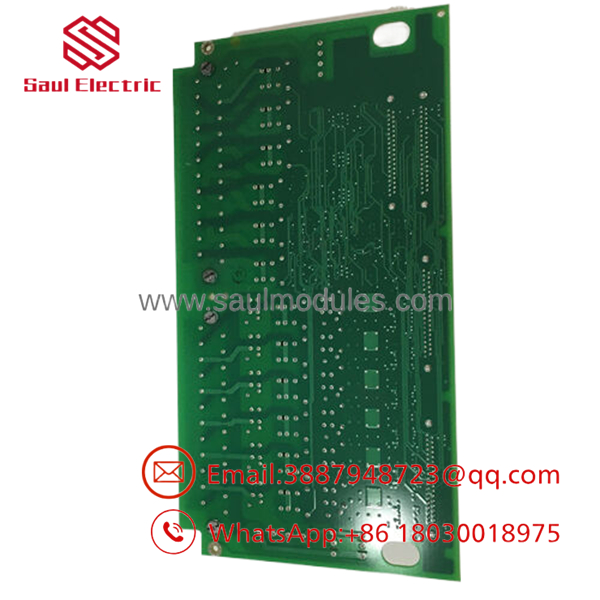

- IS200TTURH1CCC S1DF00Z
6. Firmware/Software Versions & Upgrade Notes
The IS200TTURH1CCC terminal board works with Mark VI controller firmware and associated I/O packs. No onboard firmware is typically field-upgradable on the terminal board itself, but ensure I/O pack and controller firmware versions align with GE compatibility matrices.
Firmware mismatches between connected components can lead to incorrect trip signals or input scaling errors. Always back up existing configurations before any system changes. Upgrading the broader Mark VI control system during hardware replacement requires careful validation testing to prevent operational issues.
7. Frequently Asked Questions (FAQ)
Yes. This is an original New Surplus board, never installed in service, with full traceability from authorized channels and rigorous QC verification.
Q: Why choose New Surplus over lower-cost refurbished boards? Refurbished boards often hide internal degradation that can cause false trips or missed protections, resulting in major turbine downtime costs. New Surplus delivers full expected lifespan and warranty protection at a fraction of current OEM list pricing.
Q: Is this board obsolete? Mark VI systems are mature, making strategic stocking essential. Keep 1-2 units on hand as buffer stock to maintain plant reliability and avoid emergency sourcing.
Q: What warranty applies? We provide a 1 year warranty covering manufacturing defects and operational performance under standard turbine control conditions.
Q: Does this support TMR configurations? Yes. The board is designed for Triple Modular Redundant architectures common in critical turbine protection applications.
Q: Are configuration jumpers or settings required? Yes. Match all jumpers and wiring exactly to the removed board using photos and system drawings to ensure proper signal routing and protection logic.
Q: Can I hot-swap this terminal board? No. Terminal boards require full power-down and lock-out/tag-out to safely replace and prevent damage to connected I/O packs or controllers.
